454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Water Pump And Front Cover

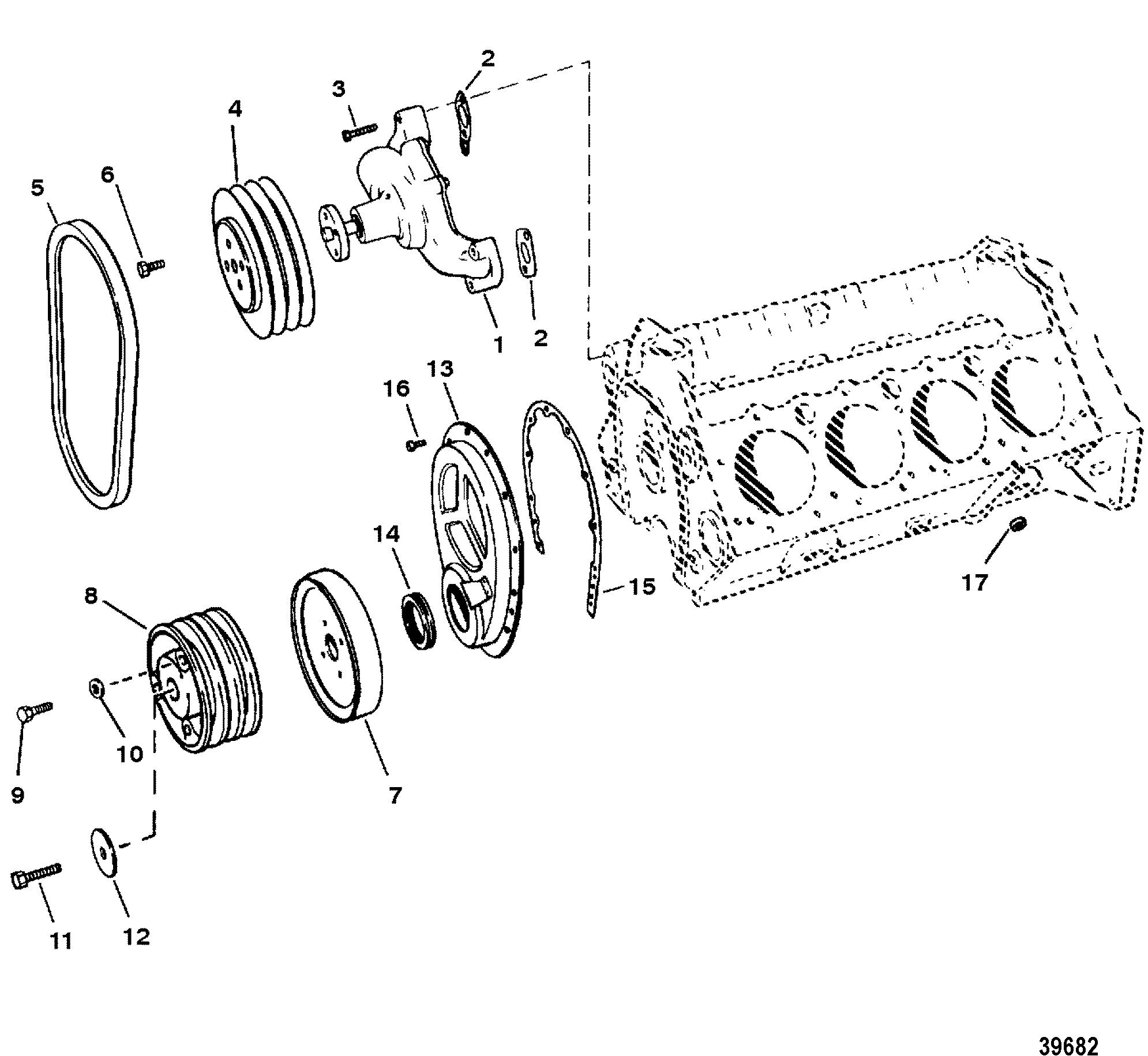

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor (454)
- Oil Filter And Adaptor (502) (F114528 and Below)
- Oil Filter And Adaptor (502) (F114529 and Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor And Alternator
- Starter Motor(3-1-2" Diameter End Cap)
- Starter Motor(PG260 - 2-7-8" Diameter End Cap)
- Thermostat Housing(Standard Cooling)
- Vapor Separator Tank And Fuel Rail, Sn and Below (See Note)
- Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)
- Vapor Separator Tank, Sn and Below (See Note)
- Vapor Separator Tank, Sn and Up (See Note)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- WIRING HARNESS(ENGINE)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8504541 | PUMP ASSEMBLY, Water | 1 | 811573 | |||||
| 2 | 27-49110 | GASKET, Circulating Water Pump Mount | 2 | 3,4 | |||||
| 3 | 10-805611 | SCREW, (.375-16 x 1.750) | 4 | 10-811574 | |||||
| 4 | 19692T01 | PULLEY, (7 In. Diameter) | 1 | 19692T | |||||
| 5 | 57-48122Q | BELT, (48 Inches) | 1 | 57-48122 | |||||
| 6 | 10-47277 | SCREW, (.312-24 x .750) | 4 | ||||||
| 7 | 845625T2 | DAMPER | 1 | 811556 | |||||
| 8 | 90081T | PULLEY | 1 | ||||||
| 9 | 10-358701 | SCREW, (.375-16 x 2.00) | 3 | ||||||
| 10 | WASHER | 3 | |||||||
| 11 | SCREW, (.500-20 x 2.500) | 1 | 10-811559 | ||||||
| 12 | 12-49103 | WASHER | 1 | ||||||
| 13 | 811570 | COVER ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 14 | 26-8219471 | SEAL | 1 | 3,4 | |||||
| 15 | 27-811572 | GASKET | 1 | 3,4 | |||||
| 16 | 10-35366 | SCREW, (.250-20 x .563) | 10 | ||||||
| 17 | 34543 | VALVE, Oil Bypass | 2 | ||||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454 MAGNUM) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502 MAGNUM) |
