454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Audio Warning System

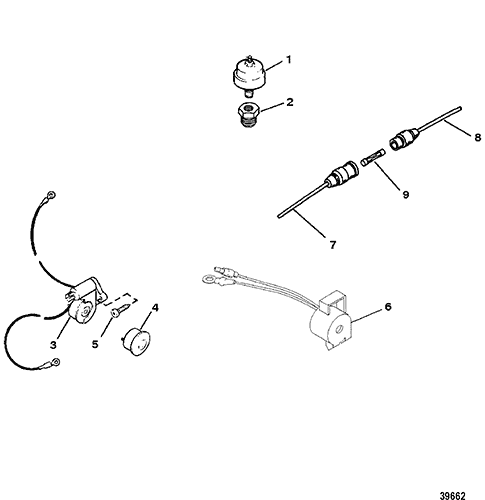

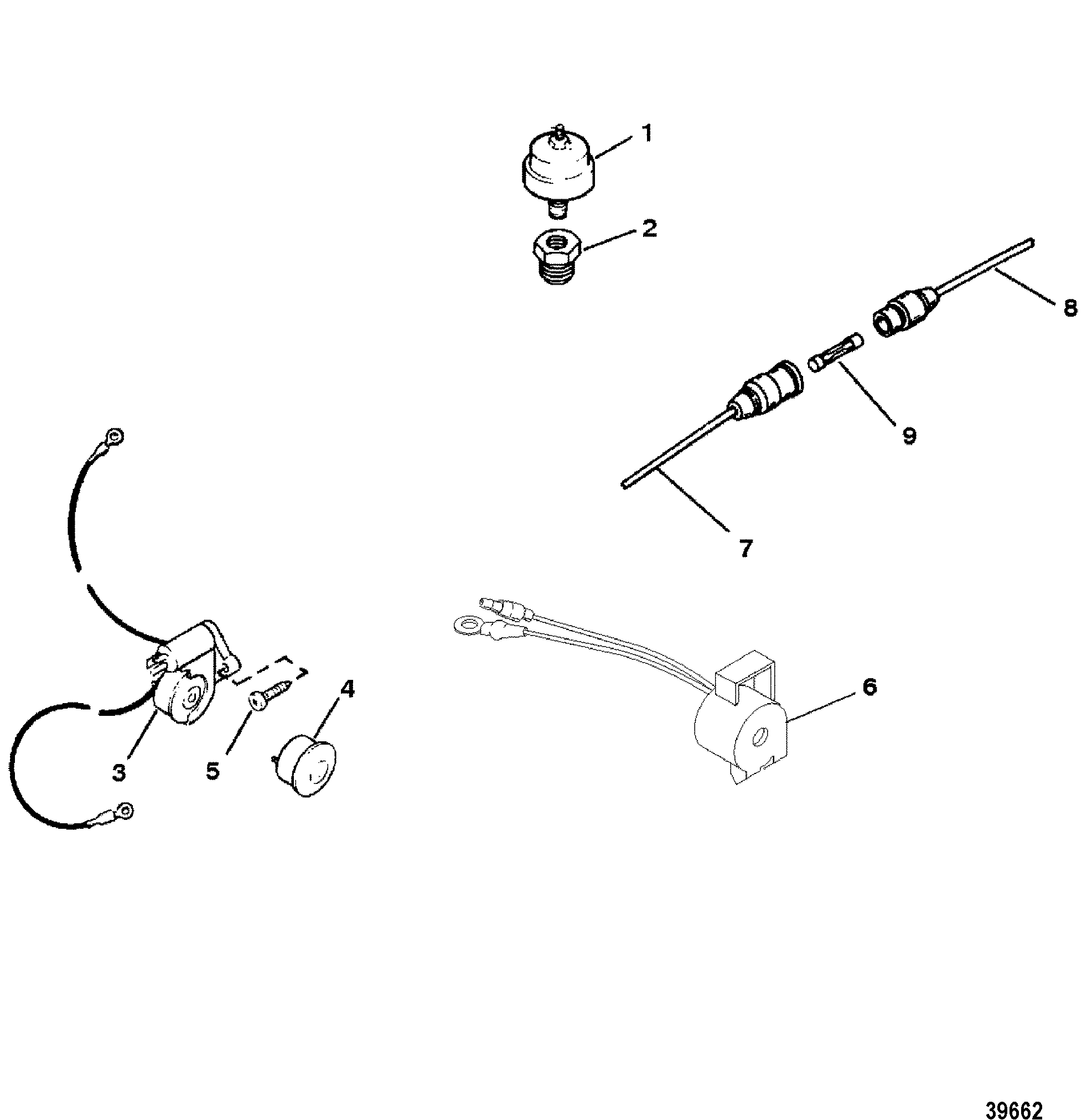

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor (454)
- Oil Filter And Adaptor (502) (F114528 and Below)
- Oil Filter And Adaptor (502) (F114529 and Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor And Alternator
- Starter Motor(3-1-2" Diameter End Cap)
- Starter Motor(PG260 - 2-7-8" Diameter End Cap)
- Thermostat Housing(Standard Cooling)
- Vapor Separator Tank And Fuel Rail, Sn and Below (See Note)
- Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)
- Vapor Separator Tank, Sn and Below (See Note)
- Vapor Separator Tank, Sn and Up (See Note)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- WIRING HARNESS(ENGINE)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 87-805605A1 | SWITCH ASSEMBLY | 1 | ||||||
| 2 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | ||||||
| 3 | 816492A5 | HOUSING ASSEMBLY, Buzzer | 1 | OLD DESIGN | |||||
| 4 | 68878A6 | HORN ASSEMBLY, Buzzer Alarm | 1 | OLD DESIGN | |||||
| 5 | 10-69013 | SCREW, (#10-16 x .880) | 2 | OLD DESIGN | |||||
| 6 | 816492A6 | ALARM KIT | 1 | NEW DESIGN | |||||
| 7 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (MALE) | 1 | ||||||
| 8 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red (FEMALE) | 1 | ||||||
| 9 | 88-79091 | FUSE, 20 Ampere | 1 |
