454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Power Steering Components

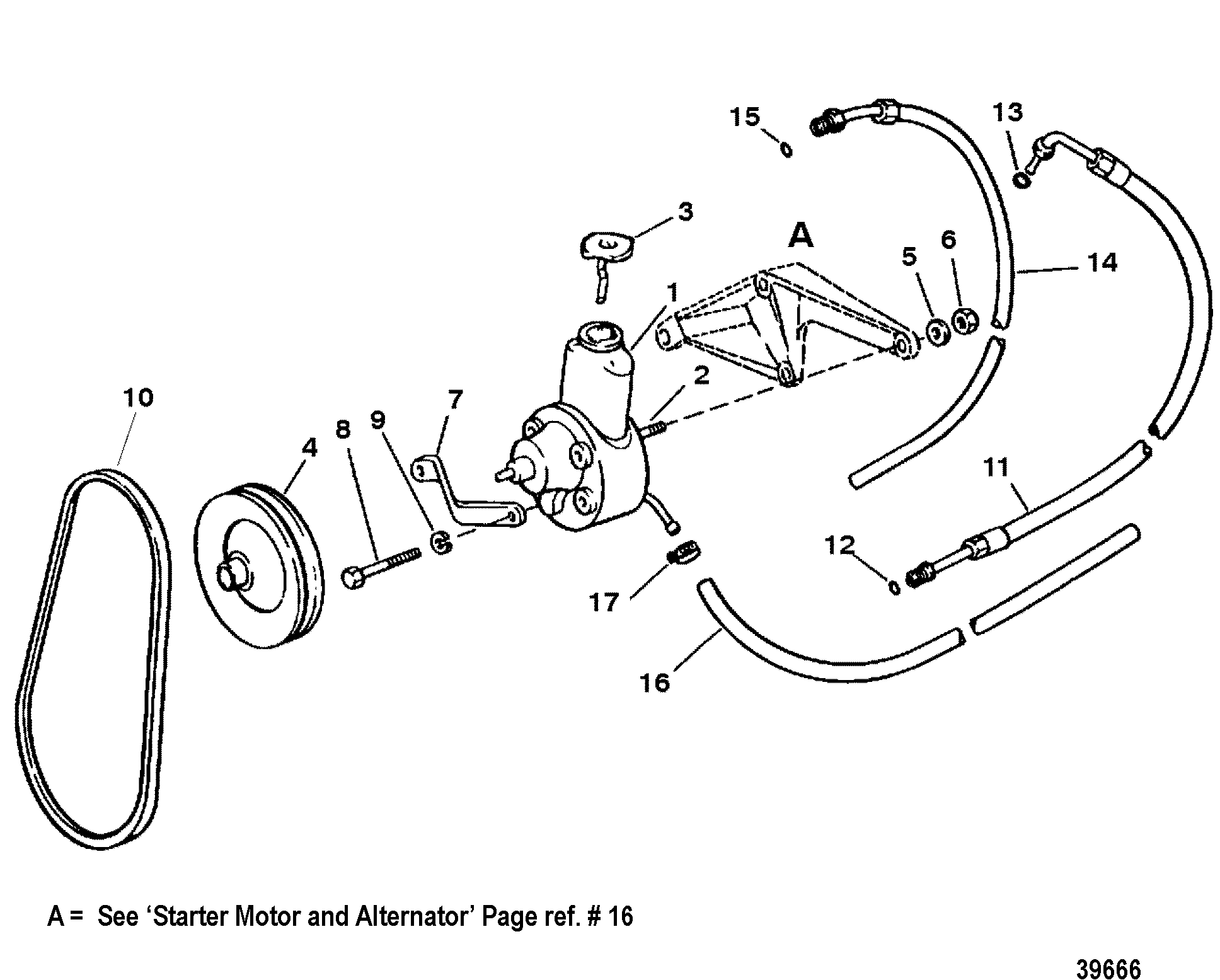

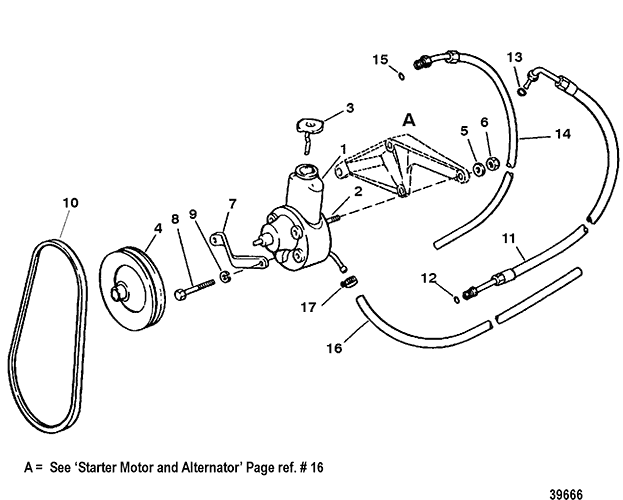

Section Drawing: (Hover or click to view larger)
