350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Alternator (Mando)

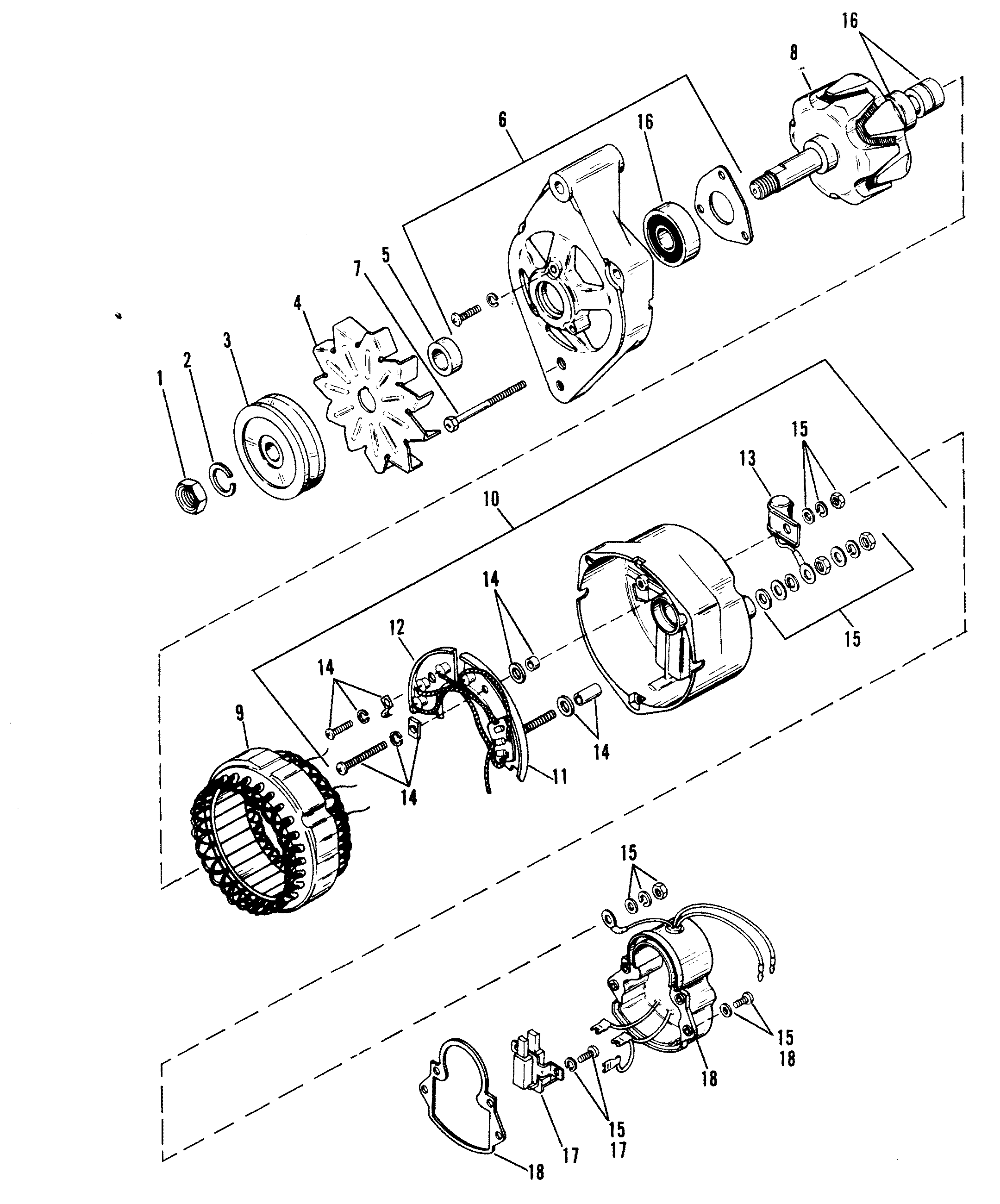

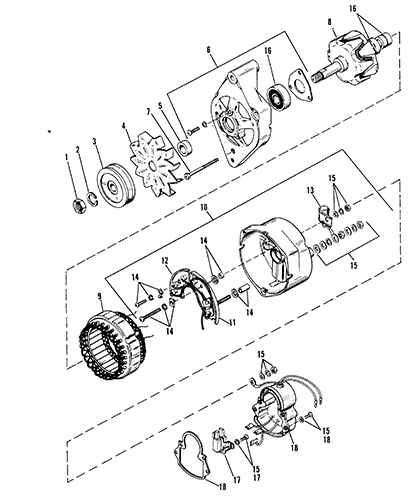

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 11-809136



NUT 1 11-42768
2 13-42769



LOCKWASHER 1

3 809134



PULLEY 1 42770
4 42771



FAN 1   This Part is No Longer Available
5 23-42772



SPACER 1   This Part is No Longer Available
6 42774



BRACKET ASSEMBLY, FRONT 1   This Part is No Longer Available
7 10-42773



BOLT 3   This Part is No Longer Available
8 42775



ROTOR (INCLUDES BEARINGS) 1   This Part is No Longer Available
9 42776



STATOR 1   This Part is No Longer Available
10 42777



BRACKET ASSEMBLY, REAR 1   This Part is No Longer Available
11 42778



HEAT SINK (+) 1   This Part is No Longer Available
12 42779



HEAT SINK (-) 1   This Part is No Longer Available
13 42780



CONDENSOR ASSEMBLY 1   This Part is No Longer Available
14 42783



HARDWARE KIT, INTERNAL 1   This Part is No Longer Available
15 42782



HARDWARE KIT, EXTERNAL 1   This Part is No Longer Available
16 42781



BEARING KIT 1   This Part is No Longer Available
17 42784



BRUSH HOLDER KIT (INCLUDES SPRINGS & BRUSHES) 1

18 42785

700-72240

REGULATOR KIT 1
No longer made, limited availability
