350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Intake Manifold And Front Cover

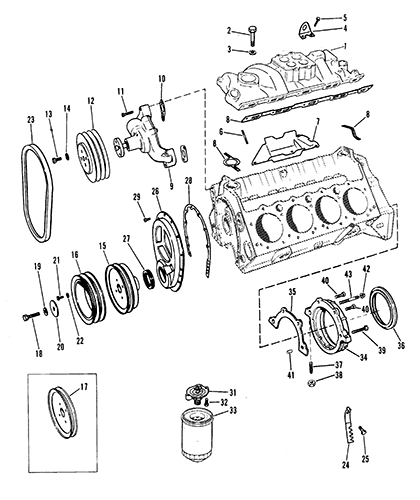

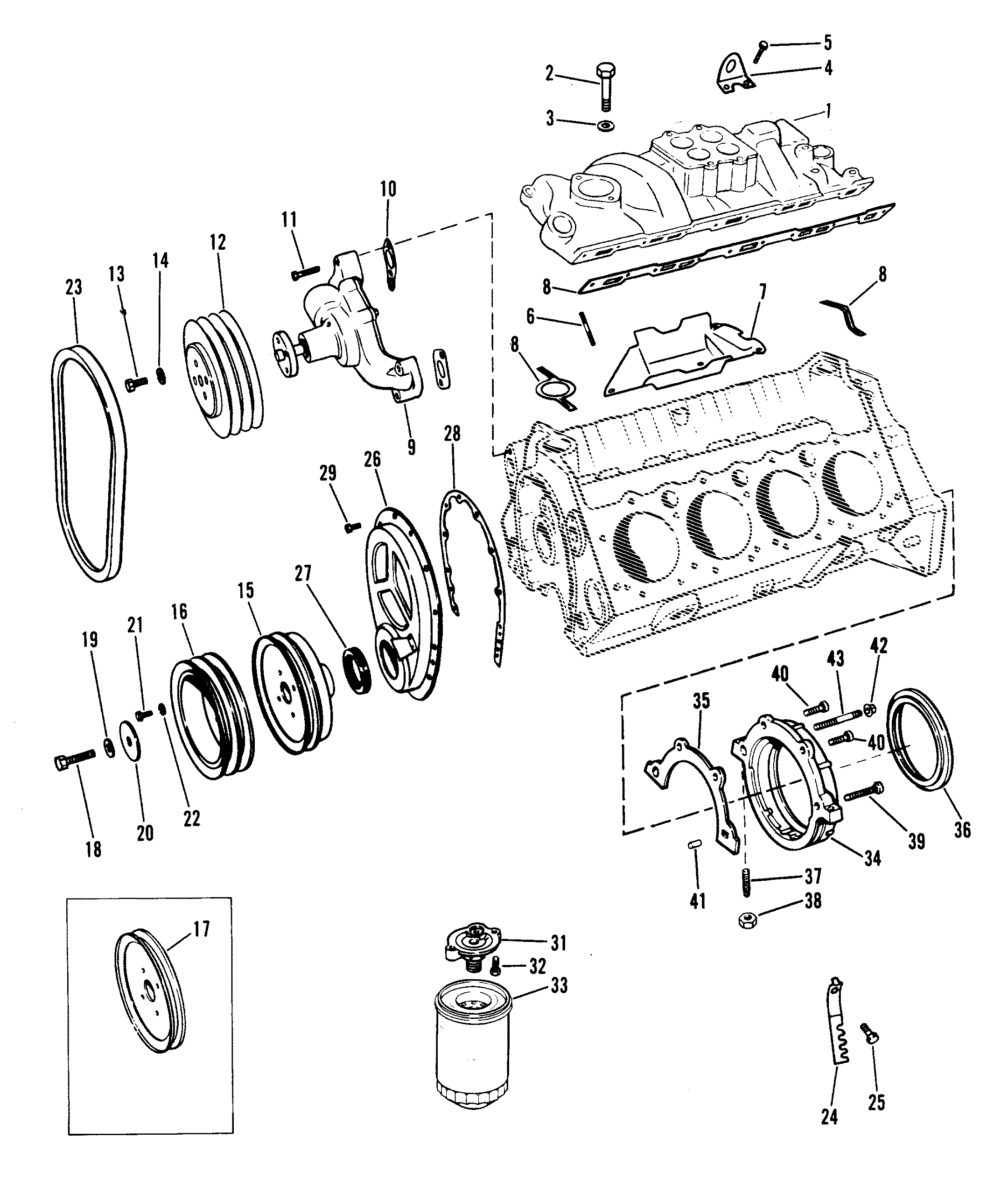

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0058164



FUEL PUMP 1 97401A2 4 = [27-75611A86] GASKET SET, ENGINE OVERHAUL
2 27-34213
676-9-61041 700-31360
GASKET, FUEL PUMP TO CYLINDER BLOCK 1
GASKET SETS AND SEALANTS - REQUIRED FOR COMPLETE OVERHAUL 4
3 10-34354



SCREW, FUEL PUMP (1-1/2") 2
[92-91601 1] SEALER, RED RTU [WHERE APPLICABLE]
4 13-35048

700-21495
LOCKWASHER, FUEL PUMP SCREW 2
[92-34227 1] PERFECT SEAL [WHERE APPLICABLE]
5 35373



PLATE, FUEL PUMP MOUNTING 1

6 27-34898
676-9-61042
700-32750

GASKET, FUEL PUMP MOUNTING PLATE 1
4
7 10-35366



SCREW, FUEL PUMP MOUNTING PLATE 2

8 35377



ROD, PUSH - FUEL PUMP 1

9 89876A3



BASE, FUEL FILTER 1

10 22-73379

700-22379

PLUG, PIPE - FUEL FILTER (SLOTTED) 3

11 88641



BRACKET, MOUNTING - FUEL FILTER 1

12 10-26065



SCRE, FUEL FILTER TO MOUNTING BRACKET (1") 2
This Part is No Longer Available
13 11-82670911



NUT, FUEL FILTER SCREW 2 11-35814
14 35-802893Q01



FUEL FILTER/WATER SEPARATOR 1 35-604941
15 22-33821



ELBOW, FUEL LINE TO FUEL PUMP AND FUEL FILTER 3

16 32-96083A1



FUEL LINE, FILTER TO FUEL PUMP 1

17 32-96081A1



FUEL LINE, PUMP TO CARBURETOR 1

18 32-7381567



HOSE, PLASTIC - FUEL PUMP TO CARBURETOR 1 32-7381563
