350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Carburetor And Throttle Linkage

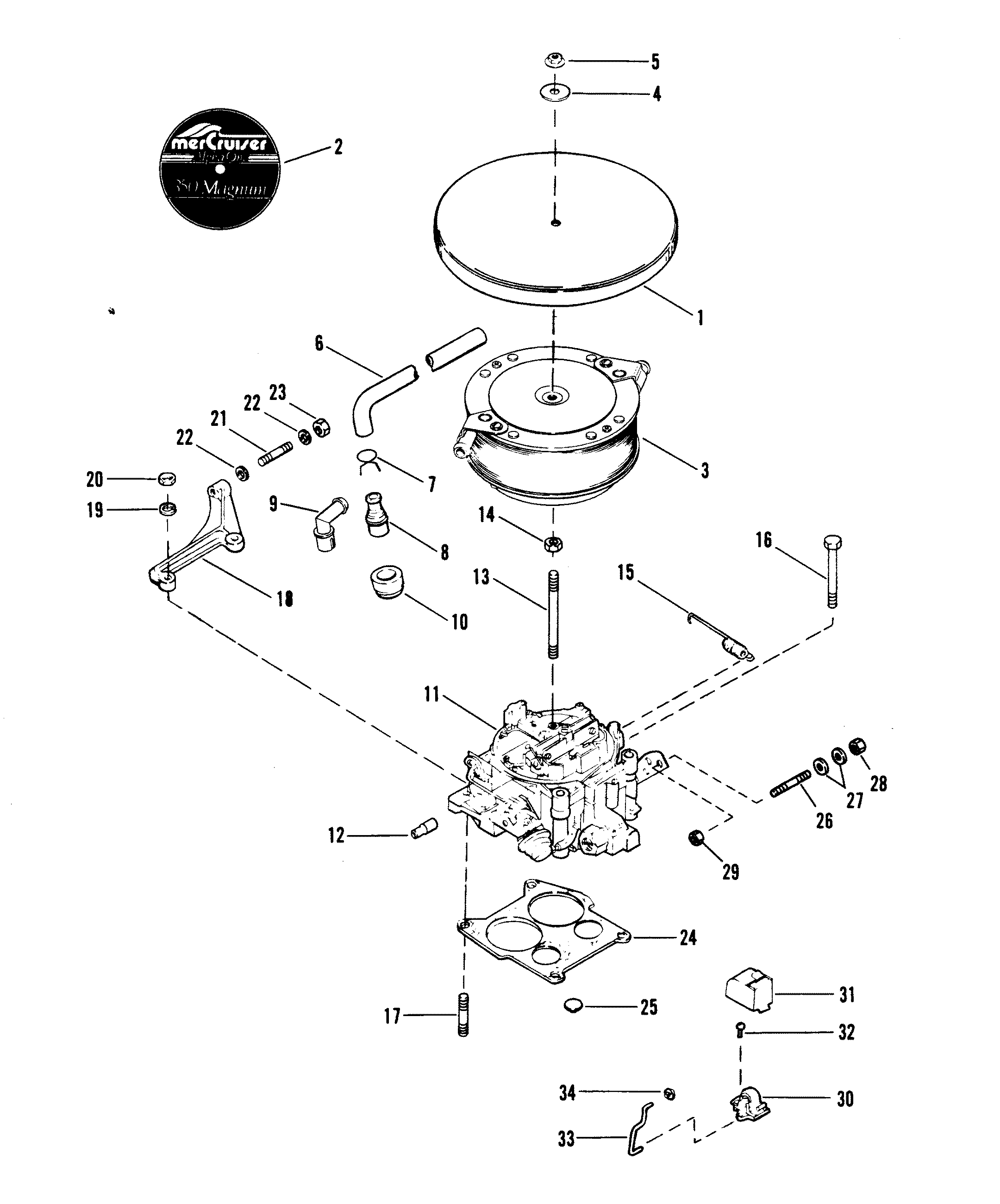

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 14605T1



COVER, CARBURETOR 1 14605T This Part is No Longer Available 4 = [27-75611A86] GASKET SET, ENGINE OVERHAUL
2 37-1372313



DECAL, CARBURETOR COVER 1   This Part is No Longer Available GASKET SETS AND SEALANTS - REQUIRED FOR COMPLETE OVERHAUL
3 805298A1
676-9-31102


FLAME ARRESTOR, CARBURETOR 1 57882 [92-91601 1] SEALER, RED RTU [WHERE APPLICABLE]
4 12-86400



WASHER, SEALING 1
[92-34227 1] PERFECT SEAL [WHERE APPLICABLE]
5 11-826709109


525-11-826709109 NUT, SILENCER ADAPTER 1 11-20586
6 32-8M0062669



HOSE, VENT - CARBURETOR (11-1/4") 2 32-9331512
7 54-53101



CLAMP, VENT HOSE 4   This Part is No Longer Available
8 47957



CONNECTOR, VENT HOSE TO ROCKER COVER (PORT) 1   This Part is No Longer Available
9 97850T



ELBOW, VENT HOSE TO ROCKER COVER (STARBOARD) 1 97850
10 25-52188



GROMMET, ROCKER COVER 2

11 1347-804624R1
676-9-34004


CARBURETOR ASSEMBLY 1 1347-8289A1
12 22-97282



CONNECTOR, CARBURETOR 1   This Part is No Longer Available
13 16-805161



STUD, FLAME ARRESTOR 1 16-578351 This Part is No Longer Available
14 v



NUT, JAM - FLAME ARRESTOR 1

15 24-897454



SPRING, THROTTLE RETURN 1 24-32817
16 10-74822



SCRE, CARBURETOR 2

17 16-46857



STUD, CARBURETOR 2

18 805359A02



BRACKET, THROTTLE CABLE 1 41329A3
19 12-20084

700-21664

WASHER, CARBURETOR STUD 4

20 11-29250



NUT, CARBURETOR STUD 2

21 16-38525



STUD, THROTTLE CABLE 1

22 12-24664



WASHER, THROTTLE CABLE STUD 1

23 11-826709109


525-11-826709109 NUT, THROTTLE CABLE STUD 1 11-20586
24 27-524572



GASKET, CARBURETOR TO INTAKE MANIFOLD 1 27-524571 4
25 22-48358T



PLUG, INTAKE MANIFOLD VACUUM HOLE 1 22-48358
26 16-96112



STUD, THROTTLE CABLE 1

27 12-29245

700-21490

WASHER, THROTTLE CABLE STUD 3

28 11-8267089



NUT, THROTTLE CABLE STUD 1 11-20361
29 11-826709109


525-11-826709109 NUT, THROTTLE CABLE STUD 1 11-20586
30 71464A01



CHOKE, AUTOMATIC - CARBURETOR 1 72625
31 63922



COVER, AUTOMATIC CHOKE 1 66198
32 10-69235



SCREW, AUTOMATIC CHOKE THERMOSTAT 1 10-59994
33 61112



LEVER, CHOKE 1

34 54-59989



CLIP, AUTOMATIC CHOKE ROD 1
No longer made, limited availability
