350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Standard Cooling System

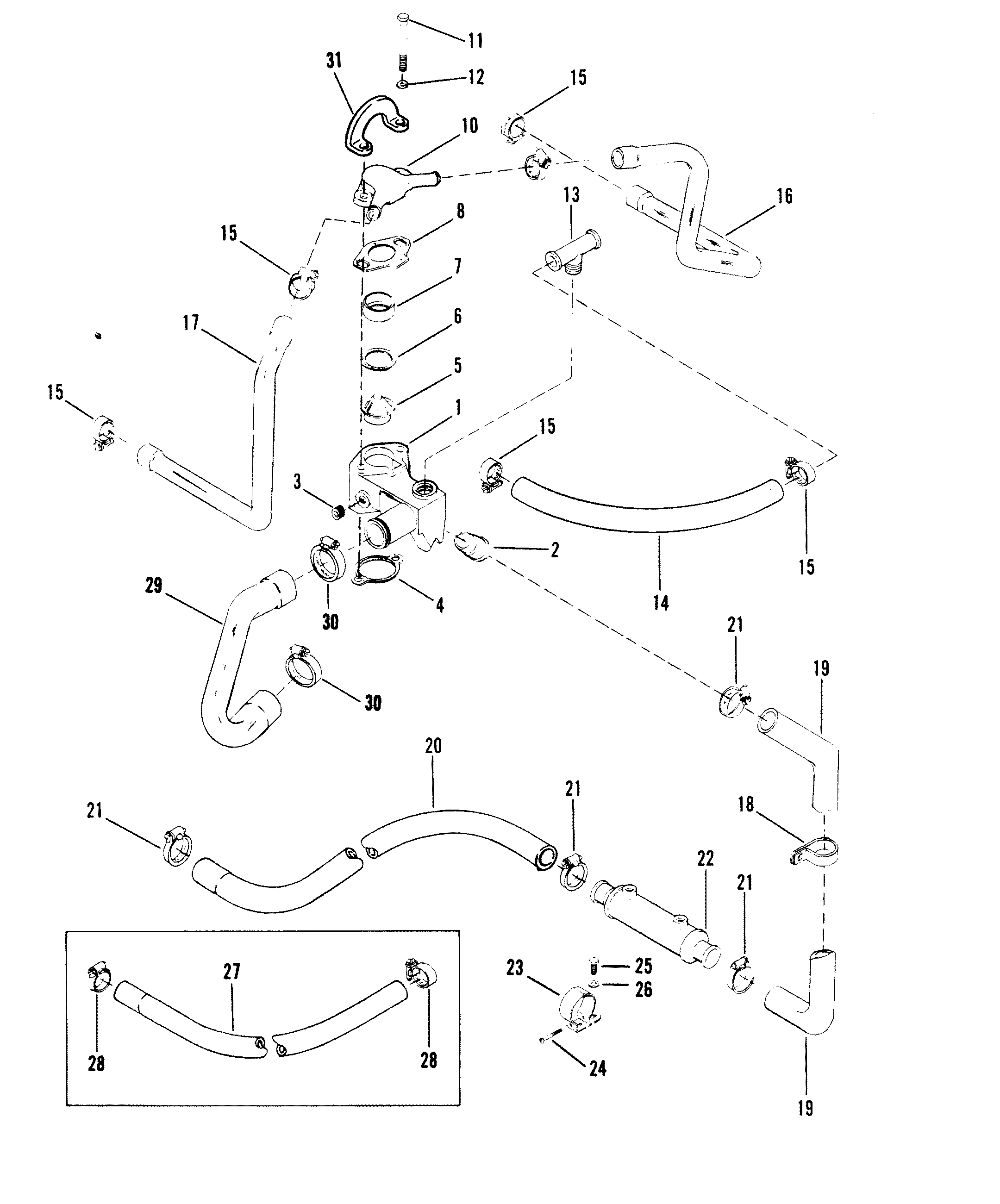

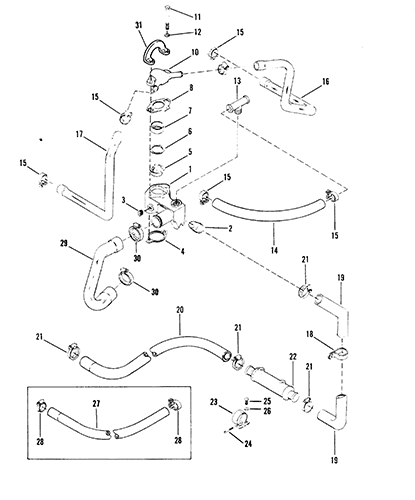

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola)
- Audio Warning System
- Carburetor
- Carburetor And Throttle Linkage
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Kit
- Miscellaneous Parts, Accessories
- Oil Filter And Adapter (New Design)
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (Old Design)
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | ||
| 1 | 87290A4 | 676-9-42502 | 700-13230 | THERMOSTAT HOUSING ASSEMBLY | 1 | 4 = [27-75611A86] GASKET SET, ENGINE OVERHAUL | |||||
| 2 | 23-47511 | SLEEVE, THERMOSTAT HOUSING | 1 | GASKET SETS AND SEALANTS - REQUIRED FOR COMPLETE OVERHAUL | |||||||
| 3 | 22-32803 | 700-21894 |
PIPE PLUG | 2 | [92-91601 1] SEALER, RED RTU [WHERE APPLICABLE] | ||||||
| 4 | 27-530451 | GASKET, THERMOSTAT HOUSING | 1 | 27-53045 | [92-34227 1] PERFECT SEAL [WHERE APPLICABLE] 4 | ||||||
| 5 | 807252T1 | 676-9-43013 |
700-13030 or | 700-13380 or | 700-13390 |
THERMOSTAT (143) | 1 | 59137 | |||
| 6 | 27-47510 | 676-9-60005 | 700-31460 | GASKET, THERMOSTAT | 1 | 4 | |||||
| 7 | 23-47508T | 700-13250 |
SLEEVE, THERMOSTAT | 1 | 23-47508 | ||||||
| 8 | 27-41812 | 676-9-60006 |
700-31630 |
GASKET, THERMOSTAT COVER | 1 | 4 | |||||
| 10 | 47441A1 | 676-9-42506 |
700-13220 |
COVER, THERMOSTAT | 1 | ||||||
| 11 | 10-60410 | SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (4-1/4") | 2 | 10-33389 | |||||||
| 11 | 10-48130 | SCREW, THERMOSTAT HOUSING (4-1/2") | 2 | This Part is No Longer Available | |||||||
| 12 | 13-35048 | 700-21495 | LOCKWASHER, THERMOSTAT HOUSING SCREW | 2 | |||||||
| 13 | 22-98477A2 | 700-13236 |
TEE, THERMOSTAT HOUSING | 1 | |||||||
| 14 | 32-8M0062614 | HOSE, TEE TO EXHAUST ELBOWS (17") | 2 | 32-3322070 | |||||||
| 15 | 54-815504220 | CLAMP, HOSE ATTACHING | 8 | 54-32780 | |||||||
| 16 | 32-160211 | HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT) | 1 | 32-87116 | |||||||
| 17 | 32-871171 | HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD) | 1 | 32-87117 | |||||||
| 18 | 54-47715 | CLIP, HOSE ATTACHING | 1 | ||||||||
| 19 | 32-88794 | 676-9-44086 | HOSE, THERMOSTAT HOUSING TO FLUID COOLER | 1 | W/POWER STEERING | ||||||
| 20 | 32-96246A4 | 676-9-44074 | HOSE, FLUID COOLER TO HOUSING (3/4" I.D.) | 1 | W/POWER STEERING | ||||||
| 21 | 54-815504220 | CLAMP, HOSE ATTACHING | 4 | 54-32780 | W/POWER STEERING | ||||||
| 22 | 99356A2 | 542-99356A2 |
COOLER, POWER STEERING FLUID | 1 | W/POWER STEERING | ||||||
| 23 | 65970T1 | BRACKET, COOLER | 1 | 65970 | W/POWER STEERING | ||||||
| 24 | 10-41408 | SCREW, BRACKET | 1 | W/POWER STEERING | |||||||
| 25 | 10-34353 | 525-10-34353 |
SCREW, BRACKET TO ENGINE | 1 | W/POWER STEERING | ||||||
| 26 | 12-46132 | WASHER, BRACKET SCREW | 1 | W/POWER STEERING | |||||||
| 27 | 32-98033A3 | HOSE, THERMOSTAT HOUSING TO HSG. (3/4" I.D.) | 1 | W/O POWER STEERING | |||||||
| 28 | 54-815504220 | CLAMP, HOSE ATTACHING | 2 | 54-32780 | W/O POWER STEERING | ||||||
| 29 | 32-861590A05 | HOSE, THERMOSTAT HOUSING TO WATER PUMP | 1 | 32-87108 | |||||||
| 30 | 54-815504232 | 676-9-44053 |
CLAMP, HOSE ATTACHING | 2 | 54-87268 | ||||||
| 31 | 12552 | LIFTING EYE (USE 10-48130) | 1 |
