350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Cylinder Block And Camshaft

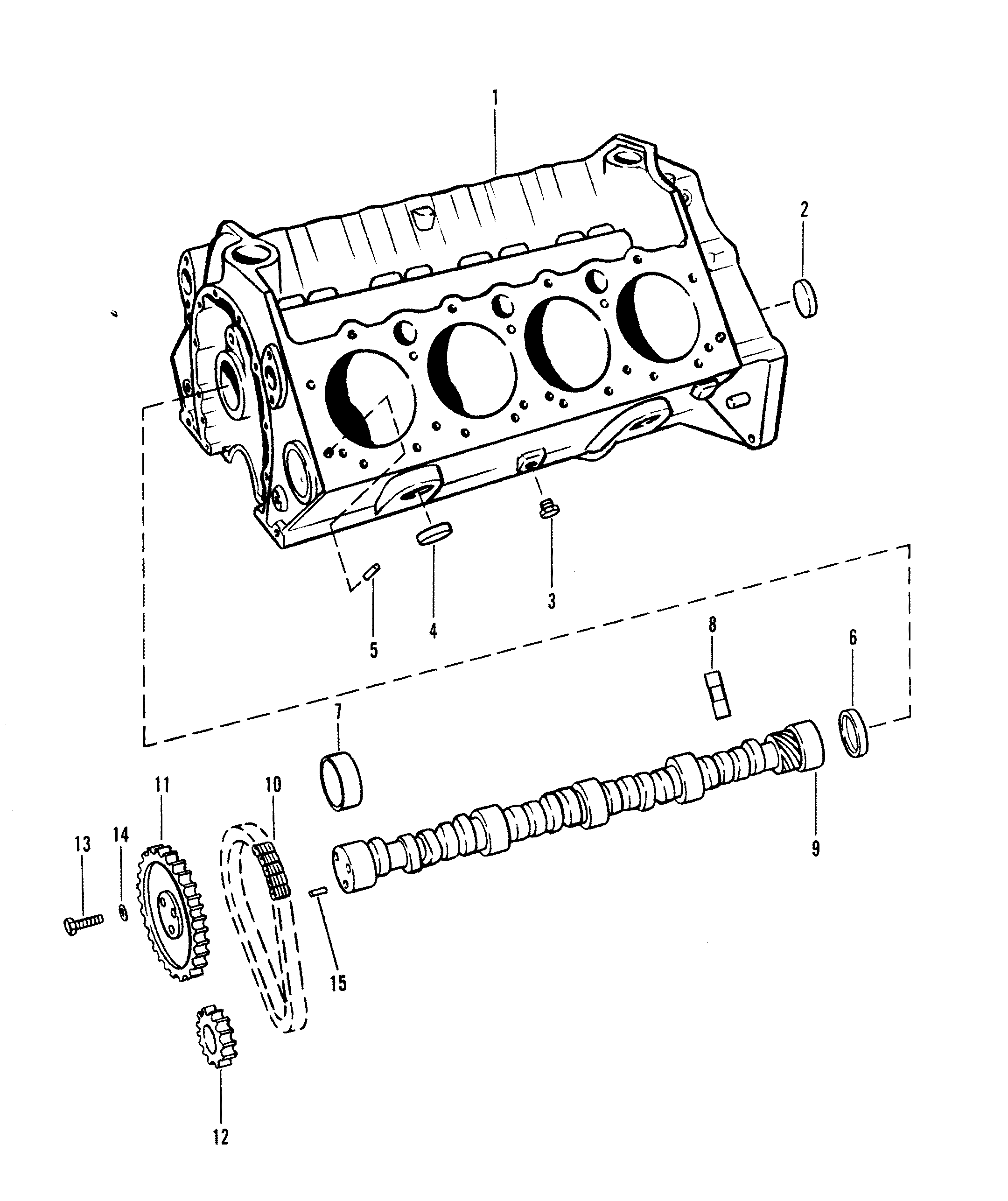

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 841-9549



CYLINDER BLOCK ASSEMBLY 1   This Part is No Longer Available MANGUM 350 PARTIAL ENGINE [INCLUDES INTERNAL PARTS AND CYLINDER HEADS] [13415A1]
2 22-48340



PLUG, EXPANSION (1-1/4") 2
[841-9549] CYLINDER BLOCK ASSEMBLY INCLUDES ONLY STANDARD PISTONS, PISTON RINGS,
3 22-16951Q1



DRAIN COCK, CYLINDER BLOCK 2 22-87238 CRANKSHAFT BEARINGS AND CAMSHAFT BEARINGS.
4 19-34270



PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIA.) 8

5 17-35465



PIN, DOWEL - BLOCK TO HEAD (5/16" DIA.) 4

6 22-72640



PLUG, EXPANSION - CAMSHAFT BEARING HOLE 1

7 23-85674



BEARING UNIT, CAMSHAFT (SET) 1

8 72638



LIFTER, HYDRAULIC VALVE 16

9 431-5943



CAMSHAFT 1

10 35378



CHAIN, CAMSHAFT TIMING 1   This Part is No Longer Available
11 17161A1



SPROCKET, CAMSHAFT TIMING 1 43-35338 This Part is No Longer Available
12 17161A1



SPROCKET, CRANKSHAFT TIMING 1 43-48338 This Part is No Longer Available
13 10-34505



BOLT, CAMSHAFT TIMING SPROCKETS (3/4") 3

14 12-848136



WASHER, CAMSHAFT TIMING SPROCKET BOLT 3 12-39167
15 17-843378



PIN, CAMSHAFT SPROCKET 1 17-35312
