350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Alternator (Motorola)

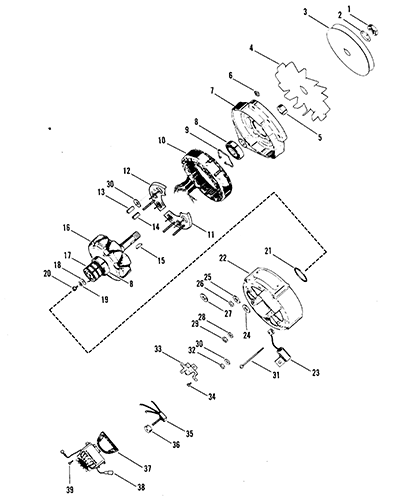

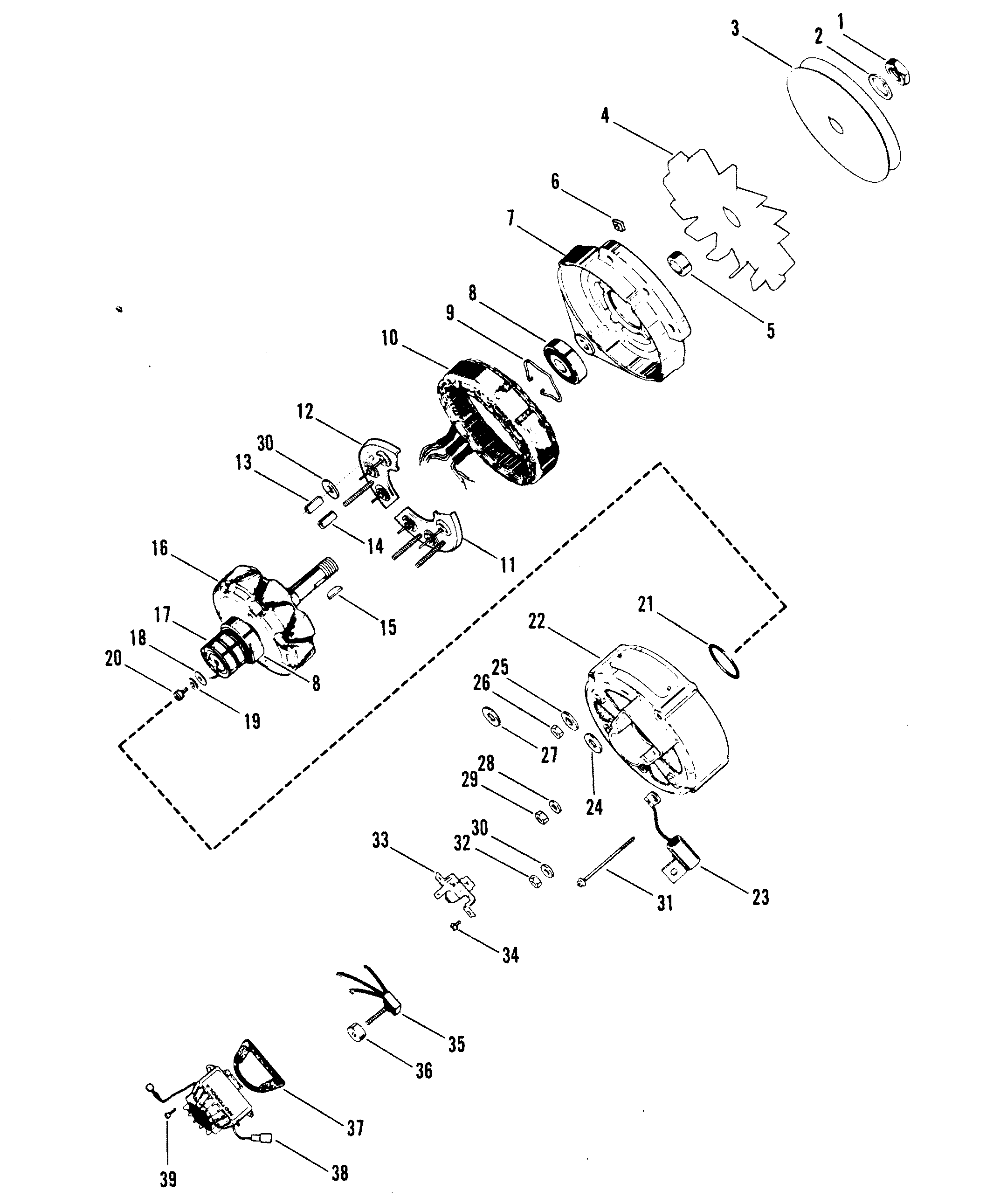

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 817119A4  620-3186M 676-9-19101

ALTERNATOR ASSEMBLY (55 AMP) 1 92497A3
1 390-7027



NUT, FAN AND PULLEY TO ROTOR 1   This Part is No Longer Available
2 390-7033



LOCKWASHER, FAN AND PULLEY NUT 1   This Part is No Longer Available
3 390-8637



PULLEY, DRIVE END FRAME 1   This Part is No Longer Available
4 390-7004



FAN, DRIVE END FRAME 1

5 813969



SPACER, FAN TO DRIVE END FRAME 1 390-7012 This Part is No Longer Available
6 390-7028



NUT, THRU BOLT ATTACHING 4   This Part is No Longer Available
7 390-7000



COVER ASSEMBLY, FRONT 1   This Part is No Longer Available
8 390-7005



BALL BEARING, DRIVE END 2   This Part is No Longer Available
9 390-7006



RETAINER, DRIVE END BALL BEARING 1   This Part is No Longer Available
10 390-8636



STATOR ASSEMBLY 1   This Part is No Longer Available
11 390-7009



DIODE RECTIFIER, NEGATIVE 1   This Part is No Longer Available
12 390-7010



HEAT SINK, POSTIVE 1   This Part is No Longer Available
13 390-7020



SLEEVE, INSULATOR 1   This Part is No Longer Available
14 390-7018



SLEEVE, INSULATOR 1   This Part is No Longer Available
15 390-7034



KEY, ROTOR 1   This Part is No Longer Available
16 390-8635



ROTOR ASSEMBLY 1   This Part is No Longer Available
17 390-7014



SLIP RING 1   This Part is No Longer Available
18 390-7206



WASHER, ROTOR SCREW 1   This Part is No Longer Available
19 390-7207



LOCKWASHER, ROTOR SCREW 1   This Part is No Longer Available
20 390-7029



SCREW, ROTOR SHAFT (5/8") 1   This Part is No Longer Available
21 390-7007



RETAINER, ROTOR SHAFT BEARING 1   This Part is No Longer Available
22 390-7003



COVER ASSEMBLY, REAR 1   This Part is No Longer Available
23 813972



CONDENSOR 1 390-7035 This Part is No Longer Available
24 390-7023



WASHER, REGULATOR TERMINAL STUD 1   This Part is No Longer Available
25 390-7024



WASHER, CONDENSOR TERMINAL STUD 1   This Part is No Longer Available
26 390-7025



NUT, TERMINAL STUD 1   This Part is No Longer Available
27 390-7208



WASHER, TERMINAL STUD 1   This Part is No Longer Available
28 390-7032



LOCKWASHER, TERMINAL STUD 2   This Part is No Longer Available
29 390-7026



NUT, TERMINAL ATTACHING 1   This Part is No Longer Available
30 390-7022



WASHER, CONDENSOR TERMINAL STUD 1   This Part is No Longer Available
31 390-8638



THRU BOLT 4   This Part is No Longer Available
32 390-7021



NUT, CONDENSOR TERMINAL ATTACHING 1   This Part is No Longer Available
33 390-7011



BRUSH HOLDER ASSEMBLY 1
No longer made, limited availability
34 390-7030



SCREW, BRUSH HOLDER (1/2") 2   This Part is No Longer Available
35 390-7008



DIODE TRIO 1   This Part is No Longer Available
36 390-7019



SPACER, DIODE TRIO 1   This Part is No Longer Available
37 390-7013



GASKET, VOLTAGE REGULATOR 1   This Part is No Longer Available
38 808534T

700-72250

VOLTAGE REGULATOR 1 390-7036
39 390-7015



SCREW, VOLTAGE REGULATOR ATTACHING 4   This Part is No Longer Available
