350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Engine Mounting (Stamped Bracket)

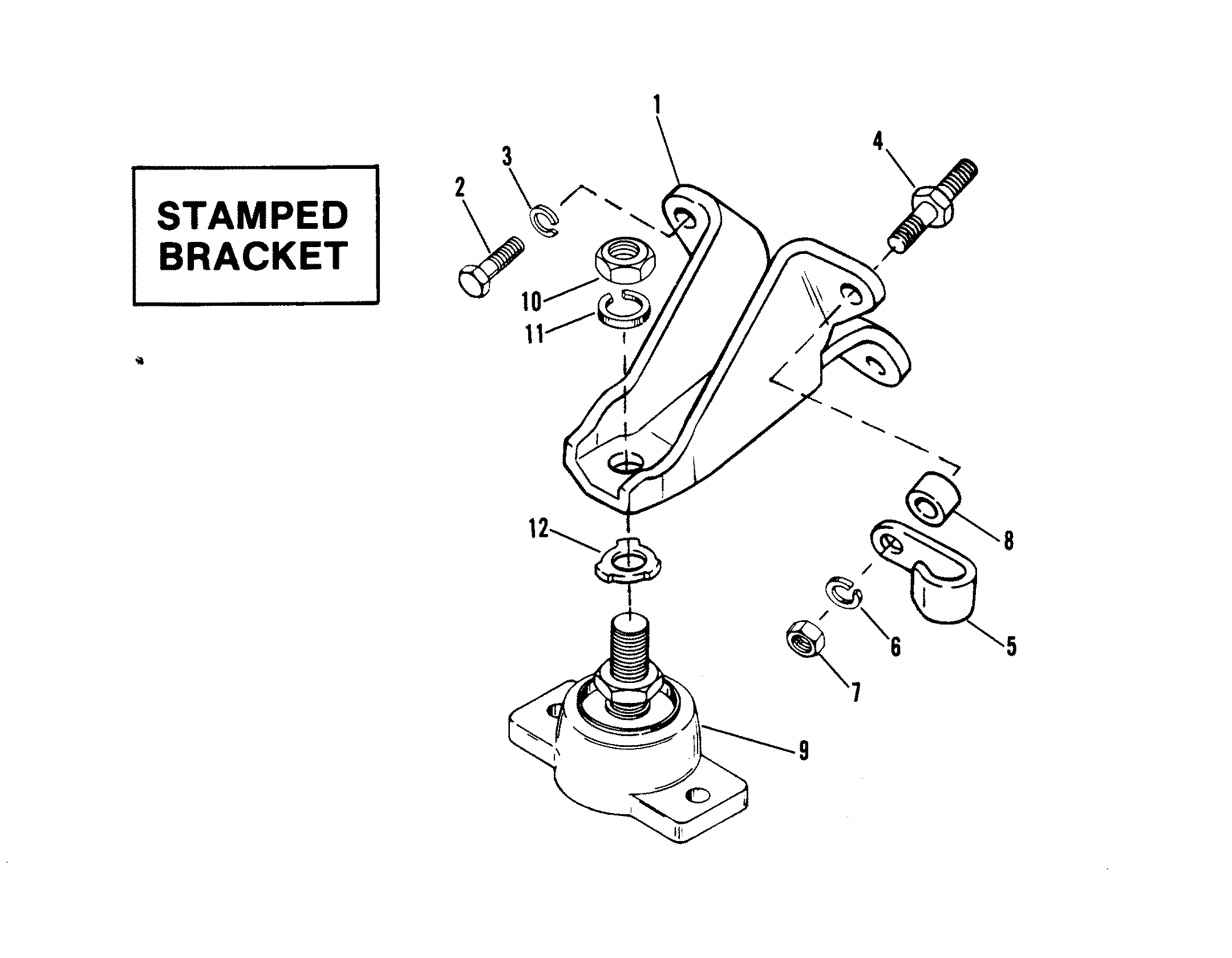

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola)
- Audio Warning System
- Carburetor
- Carburetor And Throttle Linkage
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Kit
- Miscellaneous Parts, Accessories
- Oil Filter And Adapter (New Design)
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (Old Design)
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 79550A1 | BRACKET, MOUNTING - ENGINE (FRONT) | 2 | 44364A1 | ||||||
| 2 | 10-76926 | SCREW, MOUNTING BRACKET TO ENGINE | 4 | |||||||
| 3 | 13-35048 | LOCKWASHER, MOUNTING BRACKET SCREW | 5 | |||||||
| 2 | 10-34353 | 700-21493 or | 700-21495 | SCREW, MOUNTING BRACKET TO ENGINE (1") | 1 | |||||
| 3 | 12-46132 | WASHER, MOUNTING BRACKET SCREW | 1 | |||||||
| 4 | 16-64066 | STUD, MOUNTING BRACKET TO ENGINE | 1 | STARBOARD | ||||||
| 5 | 54-92850 | CLIP, WIRING HARNESS | 1 | STARBOARD | ||||||
| 6 | 13-35048 | LOCKWASHER, MOUNTING BRACKET STUD | 2 | STARBOARD | ||||||
| 7 | 11-32219 | 700-21493 or | 700-21495 | NUT, MOUNTING BRACKET STUD | 1 | STARBOARD | ||||
| 8 | 23-57369 | SPACER, MOUNTING STUD | 1 | |||||||
| 9 | 66284A2 | BASE, ENGINE MOUNT | 2 | |||||||
| 10 | 11-20739 | NUT, JAM - ENGINE MOUNT BASE | 6 | |||||||
| 11 | 13-68102 | LOCKWASHER, MOUNTING BRACKET | 2 | |||||||
| 12 | 14-12657 | TAB WASHER | 2 |
