350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Mercathode Kit

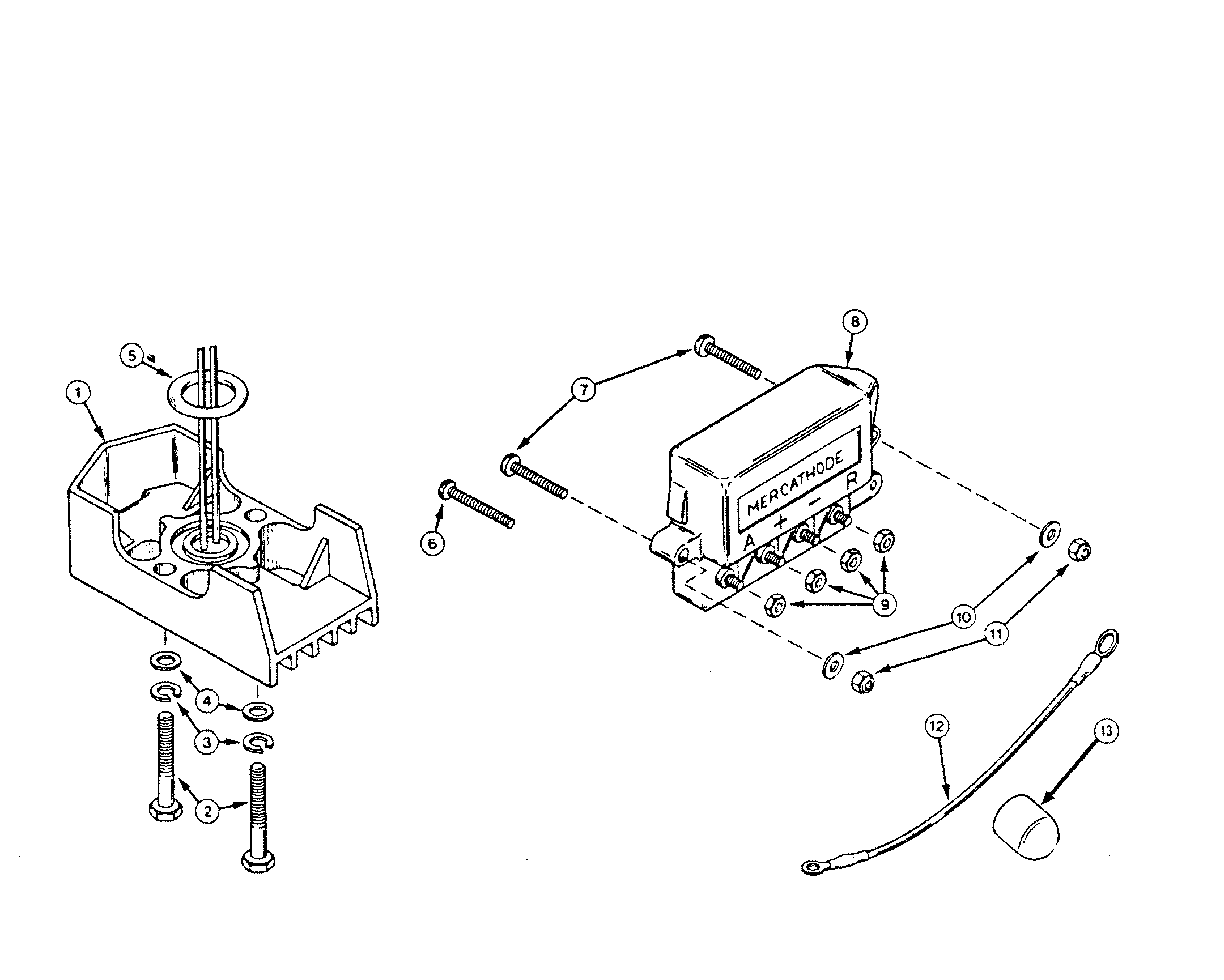

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola)
- Audio Warning System
- Carburetor
- Carburetor And Throttle Linkage
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Kit
- Miscellaneous Parts, Accessories
- Oil Filter And Adapter (New Design)
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (Old Design)
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98869A17 | ELECTRODE ASSEMBLY | 1 | 98869A4 | |||||
| 2 | 10-69067 | SCREW, ELECTRODE | 2 | ||||||
| 3 | 13-26992 | LOCKWASHER, ELECTRODE SCREW | 2 | ||||||
| 4 | 12-29245 | 700-21490 |
WASHER, ELECTRODE SCREW | 2 | |||||
| 5 | 25-88388 | "O" RING, ELECTRODE | 1 | ||||||
| 6 | 10-72202 | 700-22312 |
SCREW, CONTROLLER | 1 | |||||
| 7 | 10-24637 | SCREW, CONTROLLER | 2 | This Part is No Longer Available | |||||
| 8 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 9 | 11-68219 | NUT, CONTROLLER TERMINAL | 4 | ||||||
| 10 | 12-21273 | WASHER, CONTROLLER SCREW | 2 | 12-20286 | |||||
| 11 | 11-46438 | NUT, CONTROLLER SCREW | 2 | ||||||
| 12 | 84-88543A3 | WIRE ASSEMBLY | 1 | ||||||
| 13 | 44574T | ANODIC CAP | 2 | 44574 |
