350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Audio Warning System

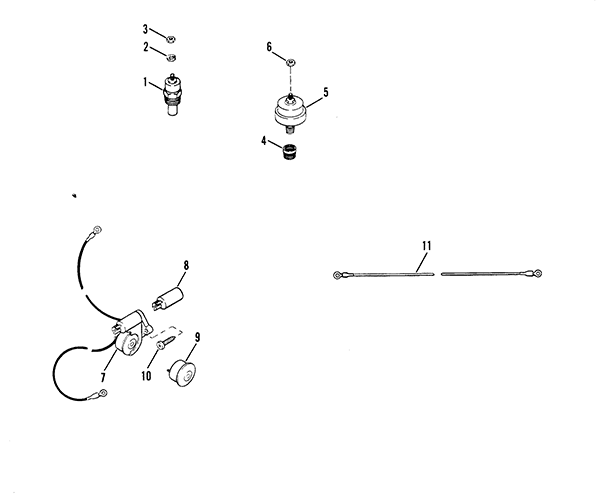

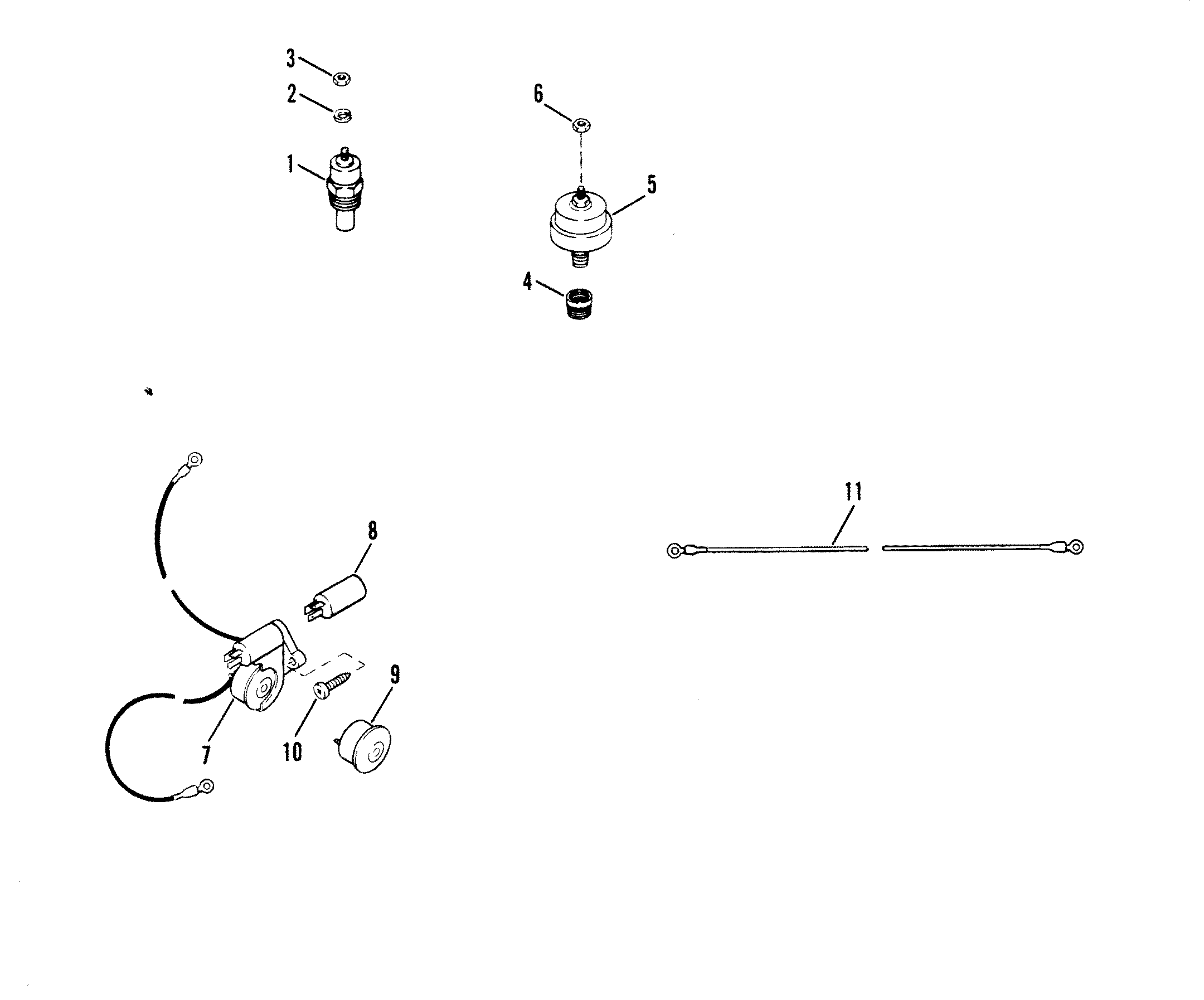

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola)
- Audio Warning System
- Carburetor
- Carburetor And Throttle Linkage
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Kit
- Miscellaneous Parts, Accessories
- Oil Filter And Adapter (New Design)
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (Old Design)
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SWITCH, WATER TEMPERATURE (STARDARD COOLING) | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER, TEMPERATURE SWITCH (#10) | 1 | ||||||
| 3 | 11-45076 | NUT, TEMPERATURE SWITCH (10-32) | 1 | ||||||
| 4 | 22-48556 | BUSHING, REDUCER | 1 | ||||||
| 5 | 87-805605A1 | SWITCH PRESSURE | 1 | 38559 | |||||
| 6 | 11-45076 | NUT, PRESSURE SWITCH TERMINAL (10-32) | 1 | ||||||
| 7 | 816492A14 | BUZZER HOUSING ASSEMBLY | 1 | 86047A11 | Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER, TEMPERATURE BUZZER | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN | 1 | 68878A2 | |||||
| 10 | 10-69013 | SCREW, HORN ATTACHING | 2 | ||||||
| 11 | 84-86044A4 | WIRE ASSEMBLY, TAN/BLUE (36") | 1 | This Part is No Longer Available |
