350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Shift Bracket (Old Design)

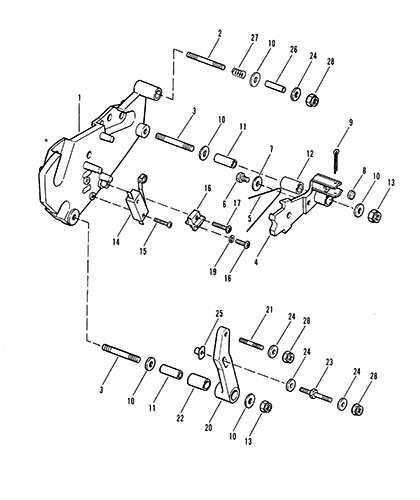

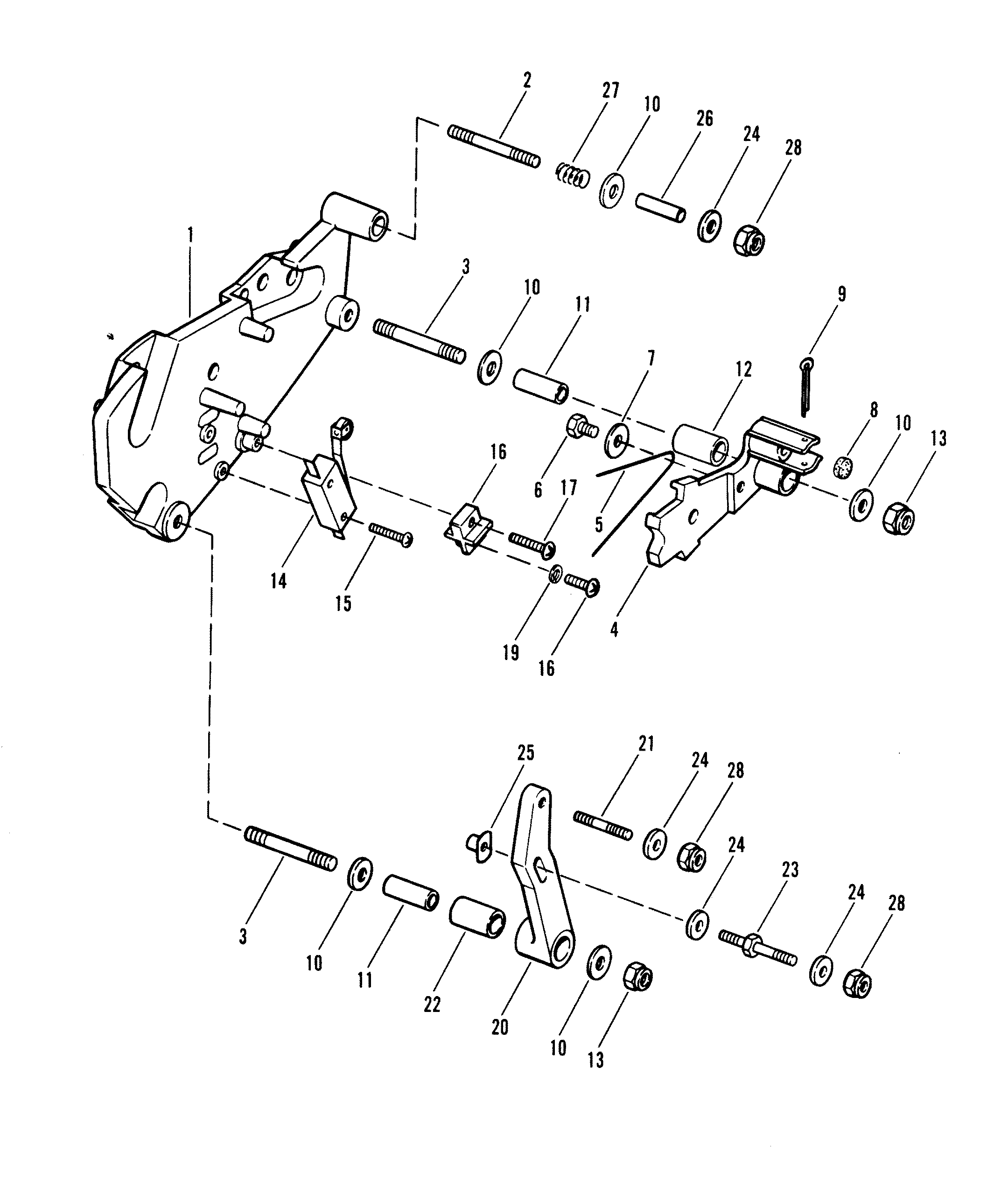

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807962A15



SHIFT BRACKET ASSEMBLY 1 99237A10
2 16-865154A02



STUD, SHIFT CABLE 1 16-98798
3 16-96108



STUD, SHIFT BRACKET 2
This Part is No Longer Available
4 13051A4



LEVER ASSEMBLY, ACTUATING 1 45517A2 This Part is No Longer Available
5 24-862850



SPRING, ACTUATING LEVER 1 24-45599
6 10-88743



SCREW, SPRING TO LEVER 1

7 12-56720



WASHER, SPRING SCREW  1

8 23-98828



SPACER, RUBBER PAD 1

9 18-328571



COTTER PIN, SHIFT CABLE RETAINING 1 18-32857
10 12-56720



WASHER, SHIFT BRACKET STUD 5

11 23-37981



SPACER, SHIFT BRACKET STUD 2
No longer made, limited availability
12 23-45600



SLEEVE, ACTUATING LEVER 1
No longer made, limited availability
13 11-82670911



NUT, SHIFT BRACKET STUD 2 11-35814
14 39670A28



SWITCH ASSEMBLY, CUT-OUT 1
This Part is No Longer Available
15 10-30902



SCREW, SWITCH TO SHIFT BRACKET 2

16 86-66986



TERMINAL BLOCK 1
This Part is No Longer Available
17 10-96113



SCREW, TERMINAL BLOCK (7/8") 1

18 10-73287



SCREW, TERMINAL BLOCK (3/8") 1

19 13-26996



LOCKWASHER, TERMINAL BLOCK SCREW 2

20 13898T06



SHIFT LEVER ASSEMBLY 1 95854A3
21 16-98851



STUD, SHIFT CABLE  1
No longer made, limited availability
22 23-45600



SLEEVE, SHIFT LEVER  1
No longer made, limited availability
23 16-96112



STUD, SHIFT CABLE 1

24 12-35462



WASHER, SHIFT CABLE STUD 5

25 11-63341



TEE NUT, SHIFT CABLE STUD 1

26 16-987981



SPACER, SHIFT CABLE STUD 1 23-98820
27 24-98880



SPRING, SHIFT CABLE STUD 1

28 11-8267089



NUT, SHIFT CABLE STUD 3 11-20361
