350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Crankshaft And Pistons

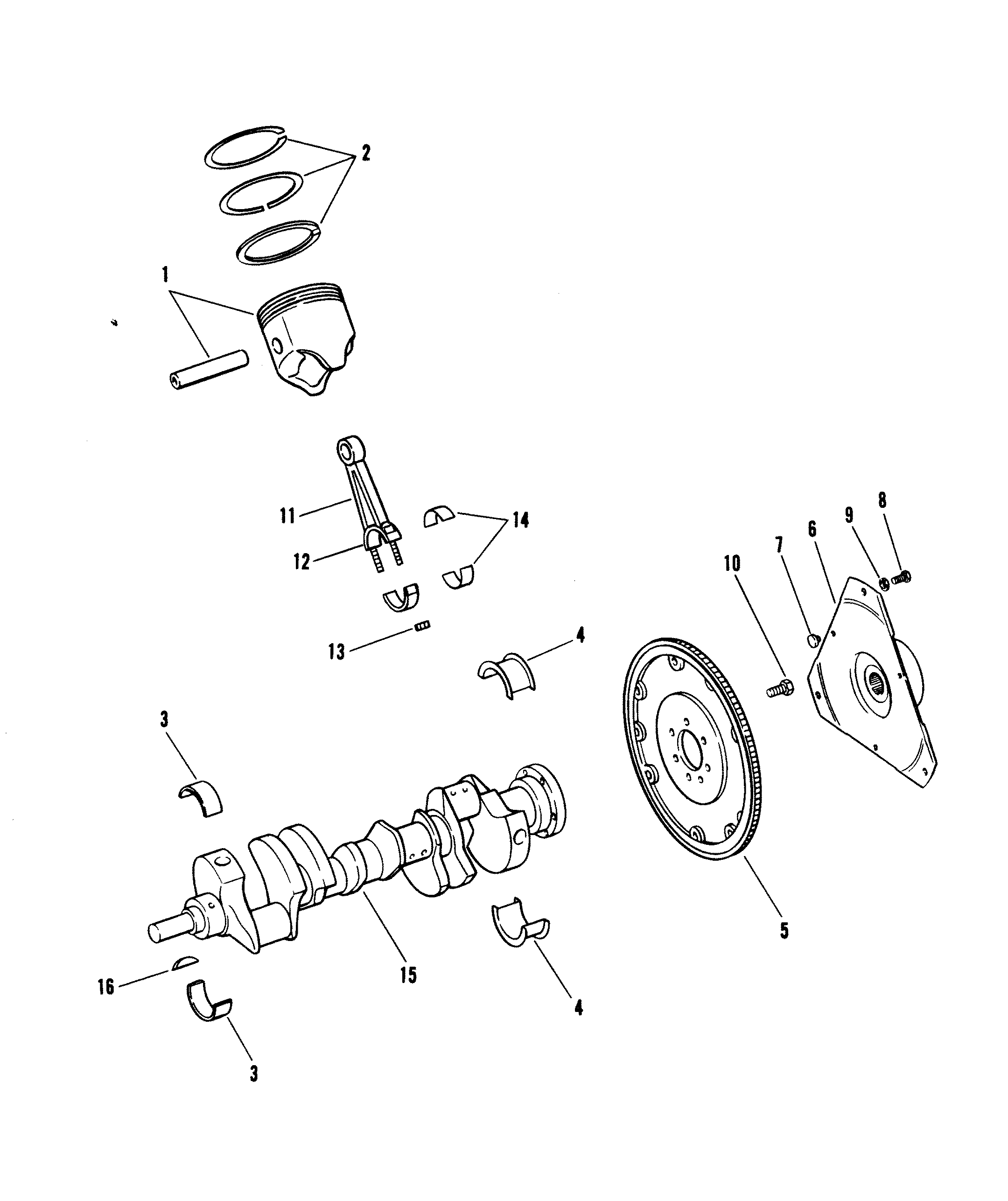

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 735-850097



PISTON AND PISTON PIN ASSEMBLY (.001 O.S.) AR 735-6370
1 735-850098



PISTON AND PISTON PIN ASSEMBLY (.030 O.S.) AR 735-6371
2 39-17464



RING, PISTON - 8 SETS (STANDARD) 8 39-65153
2 39-17465



RING, PISTON - 8 SETS (.030 O.S.) AR 39-67126
3 23-818465



BEARING UNIT, CRANKSHAFT (STANDARD) 4 23-85694
3 23-818466



BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.) AR 23-85695
3 23-818467



BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.) AR 23-85696
3 23-818468



BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.) AR 23-85697
4 23-818465



BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD) 1 23-85698
4 23-818466



BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.) AR 23-85699
4 23-818467



BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.) AR 23-85700
4 23-818468



BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.) AR 23-52216
5 8M0047213



FLYWHEEL (14" DIA.) 1 222-9520
6 18643A7

700-11530

COUPLING ASSEMBLY 1 12632A4
7 269011



RUBBER BUMPER 3 26901
8 10-14883



SCREW, COUPLING 3

9 12-13510



WASHER, COUPLING SCREW 3

10 10-845757



SCREW, FLYWHEEL TO CRANKSHAFT 6 10-49845
11 614-8164T



CONNECTING ROD ASSEMBLY 8 614-8164
12 10-85802



BOLT, CONNECTING ROD CAP 16   This Part is No Longer Available
13 11-37493



NUT, CONNECTING ROD CAP BOLT 16

14 23-85701



BEARING SET (PAIR), CONNECTING ROD (STANDARD) 8

14 23-85702



BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.) AR

14 23-85703



BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.) AR

14 23-85704



BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.) AR

14 23-85705



BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.) AR

15 429-9521T



CRANKSHAFT 1 429-9521 This Part is No Longer Available
16 28-34466



KEY, CRANKSHAFT PULLEY AND BALANCER 2
