575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Audio Warning System

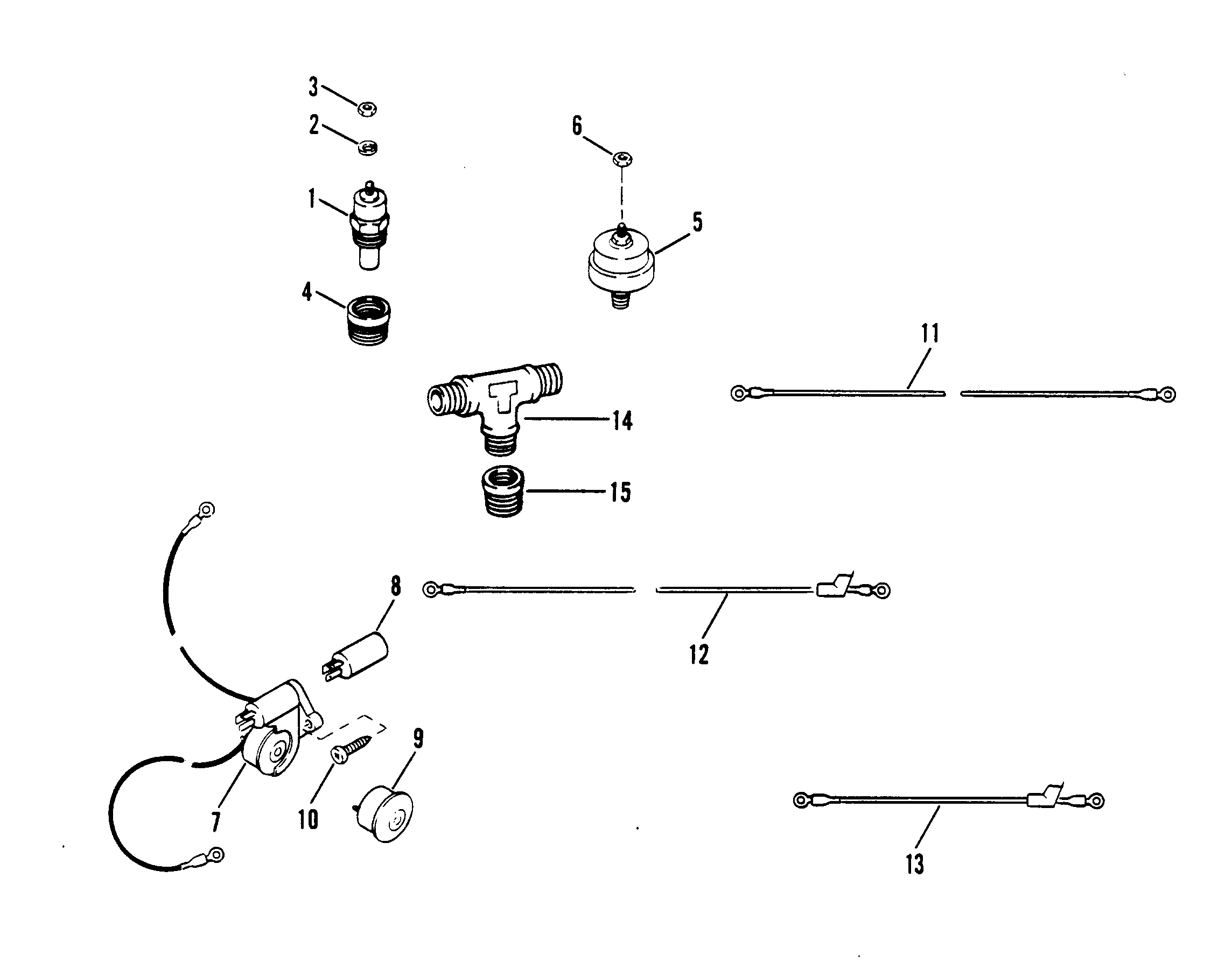

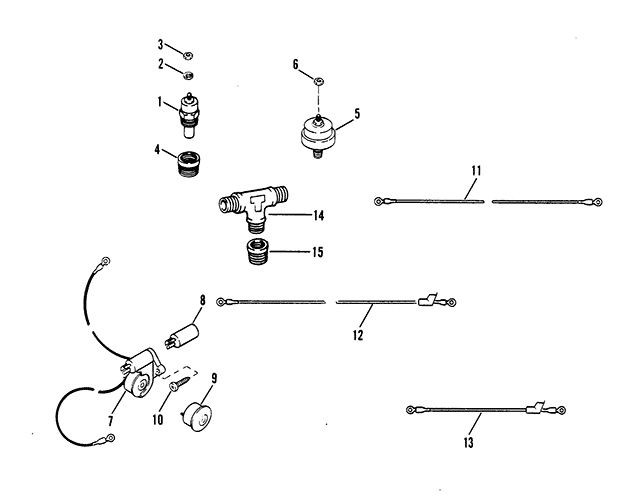

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (55 Amp) - Motorola #8MR2039K
- Alternator (Motorola 8EM2003KA)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods (460)
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Shaft And Tailstock (Drive Line)
- Exhaust Manifold
- Flywheel Housing
- Fuel Pump, Carburetor And Linkage
- Intake Manifold And Front Cover
- Miscellaneous Parts-Accessories
- Mount Plates (Single, Side By Side Engines)
- Mount Plates (Staggered Engines)
- Oil Cooler (Transmission)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components (M0031-022)
- Power Steering Components (M0036-022)
- Reservoir Bottle
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Motor
- Thermostat Housing And Water Hoses
- Transmission (Drive Line)
- Transmission (Plug-In)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SWITCH, WATER TEMPERATURE | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER, TEMPERATURE SWITCH (#10) | 1 | ||||||
| 3 | 11-45076 | NUT, TEMPERATURE SWITCH (10-32) | 1 | ||||||
| 4 | 22-48556 | BUSHING, REDUCER - TEMPERATURE SWITCH | 1 | ||||||
| 5 | 87-805605A1 | SWITCH, PRESSURE | 1 | 38559 | |||||
| 6 | 11-45076 | NUT, PRESSURE SWITCH TERMINAL (10-32) | 1 | ||||||
| 7 | 816492A14 | BUZZER HOUSING ASSEMBLY | 1 | 86047A11 | Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER, TEMPERATURE BUZZER | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN | 1 | No longer made, limited availability | |||||
| 10 | 10-69013 | SCREW, HORN ATTACHING | 2 | ||||||
| 11 | 84-86044A4 | WIRE ASSEMBLY, TAN/BLUE (36") | 1 | This Part is No Longer Available | |||||
| 12 | 84-88032A1 | WIRE ASSEMBLY, TAN/BLUE (20") | 1 | This Part is No Longer Available | |||||
| 13 | 84-86322A8 | WIRE ASSEMBLY, BLACK (8") | 1 | This Part is No Longer Available | |||||
| 14 | 22-52930 | TEE | 1 | ||||||
| 15 | 22-38992 | BUSHING, TEMPERATURE SWITCH | 1 |
