| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

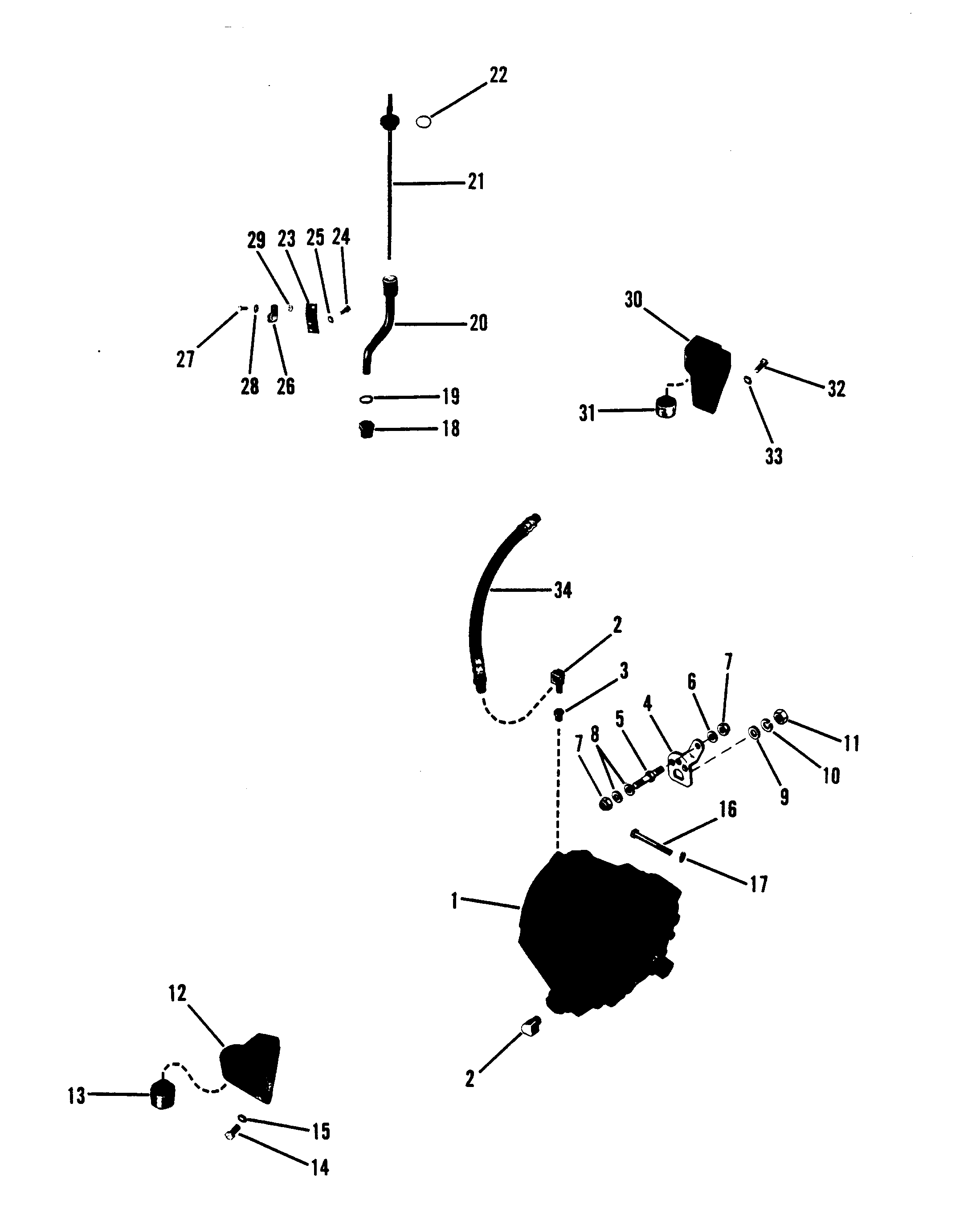

| 1 |
841918A07 |
|
|
|
|
TRANSMISSION ASSEMBLY |
1 |
14750A1 |
|
| 2 |
22-47629 |
|
|
|
|
ELBOW, TRANSMISSION TO OIL HOSE |
2 |
|
|
| 3 |
22-88517 |
|
|
|
|
BUSHING, REDUCING - TRANSMISSION ELBOW |
1 |
|
|
| 4 |
12128 |
|
|
|
|
LEVER, SHIFT - TRANSMISSION |
1 |
|
|
| 5 |
16-63335 |
|
|
|
|
STUD, SHIFT LEVER |
1 |
|
This Part is No Longer Available |
| 6 |
12-39143 |
|
|
|
|
WASHER, SHIFT LEVER STUD |
1 |
|
|
| 7 |
11-8267089 |
|
|
|
|
NUT, SHIFT LEVER STUD |
2 |
11-20361 |
|
| 8 |
12-29245 |
|
|
|
|
WASHER, SHIFT LEVER STUD |
2 |
|
|
| 9 |
12-20722 |
|
|
|
|
WASHER, TRANSMISSION LEVER STUD |
1 |
|
This Part is No Longer Available |
| 10 |
13-26993 |
|
|
|
|
LOCKWASHER, TRANSMISSION LEVER STUD |
1 |
|
|
| 11 |
11-22053 |
|
|
|
|
NUT, TRAMSISSION LEVER STUD |
1 |
|
|
| 12 |
47334A2 |
|
|
|
|
BRACKET ASSEMBLY, TRANSMISSION MOUNT |
1 |
|
This Part is No Longer Available (STARBOARD) |
| 13 |
35852 |
|
|
|
|
MOUNT, TRANSMISSION MOUNT BRACKET |
1 |
|
|
| 14 |
10-47462 |
|
|
|
|
SCREW, MOUNT BRACKET TO TRANMISSION (1-1/4") |
2 |
|
|
| 15 |
13-32993 |
|
|
|
|
LOCKWASHER, MOUNT BRACKET SCREW |
2 |
|
|
| 16 |
10-60179 |
|
|
|
|
SCREW, TRANSMISSION TO ENGINE (3-1/2") |
6 |
|
|
| 17 |
13-32993 |
|
|
|
|
LOCKWASHER, TRANSMISSION SCREW |
6 |
|
|
| 18 |
48461 |
|
|
|
|
ADAPTOR, OIL LEVEL GAUGE TUBE |
1 |
|
TO TRANSMISSION This Part is No Longer Available |
| 19 |
25-48462 |
|
|
|
|
"O" RING, OIL LEVEL TUBE ADAPTOR |
1 |
|
|
| 20 |
48463 |
|
|
|
|
TUBE, OIL LEVEL GAUGE |
1 |
|
This Part is No Longer Available |
| 21 |
48464 |
|
|
|
|
GAUGE, OIL LEVEL |
1 |
|
This Part is No Longer Available |
| 22 |
25-35276 |
|
|
|
|
"O" RING, OIL LEVEL GAUGE |
1 |
|
|
| 23 |
48466 |
|
|
|
|
BRACKET, MOUNTING - OIL LEVEL GAUGE TUBE |
1 |
|
This Part is No Longer Available |
| 24 |
10-32417 |
|
|
|
|
SCREW, MOUNTING BRACKET TO TRANSMISSION |
2 |
|
MOUNT BRACKET (5/8") |
| 25 |
13-26992 |
|
|
|
|
LOCKWASHER, MOUNTING BRACKET SCREW |
2 |
|
|
| 26 |
54-859172 |
|
|
|
|
CLAMP, OIL LEVEL GAUGE TUBE TO MOUNTING |
1 |
54-67015 |
BRACKET |
| 27 |
10-60300 |
|
|
|
|
SCREW, OIL LEVEL GAUGE TUBE CLAMP |
1 |
|
|
| 28 |
12-29245 |
|
|
|
|
WASHER, OIL LEVEL GAUGE TUBE CLAMP SCREW |
2 |
|
|
| 29 |
11-8267089 |
|
|
|
|
NUT, OIL LEVEL GAUGE TUBE CLAMP SCREW |
1 |
11-20361 |
|
| 30 |
47340A1 |
|
|
|
|
BRACKET ASSEMBLY, TRANSMISSION MOUNT |
1 |
|
(PORT) |
| 31 |
35852 |
|
|
|
|
MOUNT, TRANSMISSION MOUNT BRACKET |
1 |
|
|
| 32 |
10-47462 |
|
|
|
|
SCREW, MOUNT BRACKET TO TRANSMISSION |
2 |
|
(1-1/4") |
| 33 |
13-32993 |
|
|
|
|
LOCKWASHER, MOUNT BRACKET SCREW |
2 |
|
|
| 34 |
32-475166 |
|
|
|
|
HOSE, TRANSMISSION TO OIL COOLER (30") |
2 |
|
|
