| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

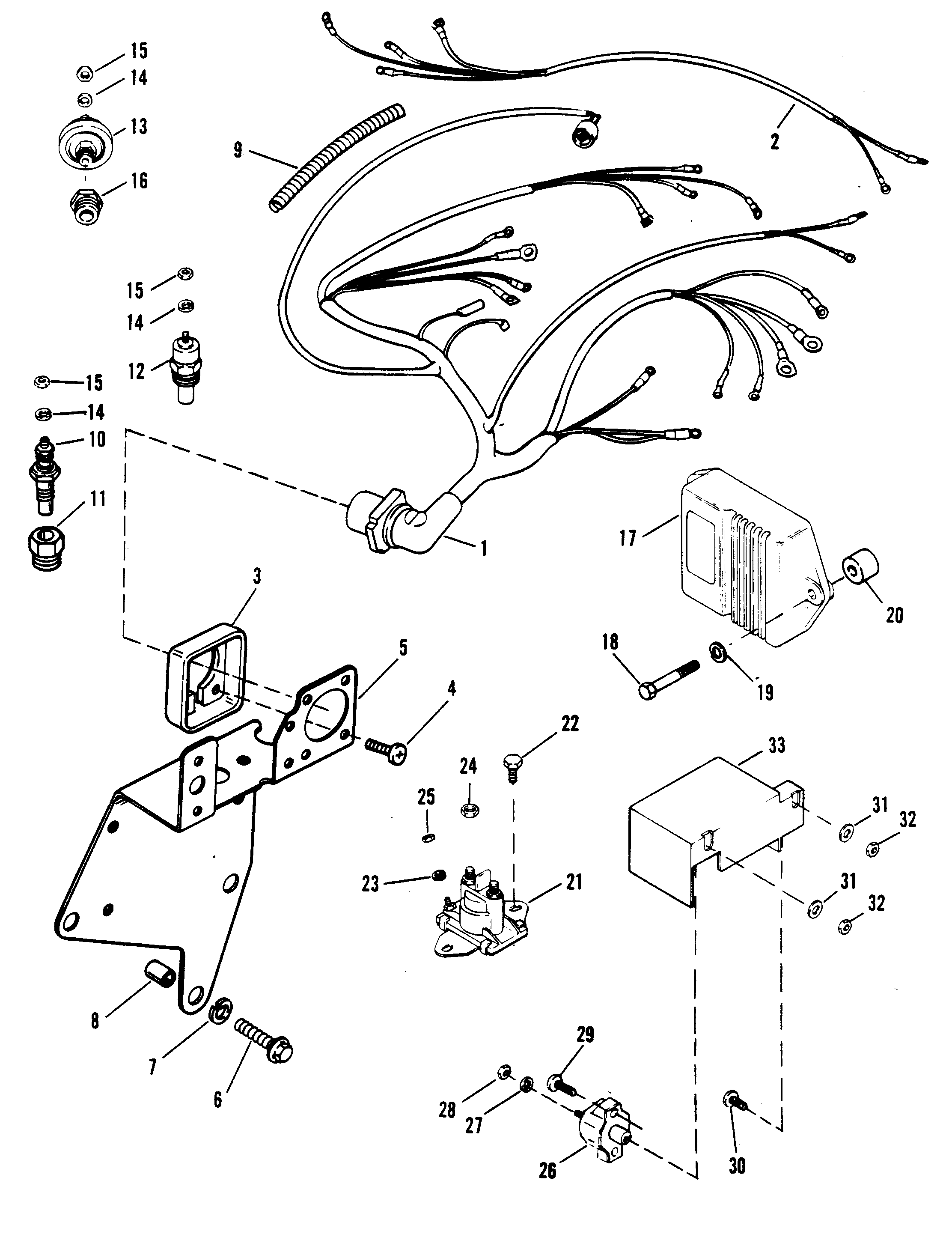

| 1 |
84-14338T5 |
|
|
|
|
WIRING HARNESS |
1 |
84-14338A1 |
|
| 2 |
84-14338T5 |
|
|
|
|
WIRING HARNESS |
1 |
84-14337A1 |
|
| 3 |
26079A2 |
|
|
|
|
PLATE, WIRING HARNESS TO MOUNTING BRACKET |
1 |
|
|
| 4 |
10-34696 |
|
|
|
|
SCREW, USE WITH METAL PLATE |
4 |
|
|
| 4 |
10-15001 |
|
|
|
|
SCREW, USE WITH PLASTIC PLATE |
4 |
|
|
| 5 |
14037 |
|
|
|
|
BRACKET, MOUNTING |
1 |
|
|
| 6 |
10-37612 |
|
|
|
|
SCREW, BRACKET |
3 |
|
|
| 7 |
13-35048 |
|
|
|
|
LOCKWASHER, BRACKET SCREW |
3 |
|
|
| 8 |
23-90523 |
|
|
|
|
SPACER, BRACKET SCREW |
3 |
|
|
| 9 |
32-77690 |
|
|
|
|
WRAPPING, PLASTIC (1/4" DIA) |
1 |
|
|
| 10 |
13611 |
|
|
|
|
OIL TEMPERATURE SENDER |
1 |
|
|
| 11 |
22-36492 |
|
|
|
|
BUSHING, REDUCER |
1 |
|
|
| 12 |
806490T |
|
|
|
|
WATER TEMPERATURE SENDER |
1 |
97257A1 |
|
| 12 |
49734 |
|
|
|
|
WATER TEMPERATURE SENDER (DUAL) |
OPT. |
49734A1 |
3 |
| 13 |
8M0068784 |
|
|
|
|
OIL PRESSURE SENDER |
1 |
90806 |
|
| 13 |
37293T |
|
|
|
|
OIL PRESSURE SENDER (DUAL) |
OPT. |
37293 |
3 |
| 14 |
13-26996 |
|
|
|
|
LOCKWASHER, SENDER TERMINAL (#10) |
3 |
|
|
| 15 |
11-68219 |
|
|
|
|
NUT, SENDER TERMINAL (#10) |
3 |
|
|
| 16 |
22-64013 |
|
|
|
|
REDUCER, OIL PRESSURE SENDER |
1 |
|
|
| 17 |
17316A1 |
|
|
|
|
IGNITION AMPLIFIER (W/HARNESS 84-15275A1) |
1 |
|
This Part is No Longer Available |
| 18 |
10-76630 |
|
|
|
|
SCREW, IGNITION AMPLIFIER |
3 |
|
|
| 19 |
13-26992 |
|
|
|
|
LOCKWASHER, IGNITION AMPLIFIER SCREW |
3 |
|
|
| 20 |
23-92152T |
|
|
|
|
SPACER, IGNITION AMPLIFIER SCREW |
3 |
23-92152 |
|
| 21 |
89-96054T |
|
|
|
|
STARTER SOLENOID |
1 |
89-96054 |
|
| 22 |
10-98253 |
|
|
|
|
SCREW, STARTER SOLENOID |
2 |
|
|
| 23 |
13-26992 |
|
|
|
|
LOCKWASHER, STARTER SOLENOID TERMINAL |
2 |
|
|
| 24 |
11-94330 |
|
|
|
|
NUT, STARTER SOLENOID TERMINAL (1/4-20) |
2 |
|
|
| 25 |
11-26419 |
|
|
|
|
NUT, STARTER SOLENOID TERMINAL (10-32) |
2 |
|
|
| 26 |
88-11178A01 |
|
|
|
|
CIRCUIT BREAKER (50 AMP) |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 27 |
13-26996 |
|
|
|
|
LOCKWASHER, CIRCUIT BREAKER TERMINAL |
2 |
|
|
| 28 |
11-68219 |
|
|
|
|
NUT, CIRCUIT BREAKER TERMINAL |
2 |
|
|
| 29 |
10-45862 |
|
|
|
|
SCREW, CIRCUIT BREAKER (7/8") |
2 |
|
|
| 30 |
10-71405 |
|
|
|
|
SCREW, INSULATOR (7/16") |
1 |
|
This Part is No Longer Available |
| 31 |
12-56681 |
|
|
|
|
WASHER, CIRCUIT BREAKER SCREW |
2 |
|
|
| 32 |
11-46438 |
|
|
|
|
NUT, INSULATOR SCREW |
2 |
|
|
| 33 |
85-96819T |
|
|
|
|
INSULATOR, CIRCUIT BREAKER |
1 |
|
|
