575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Distributor And Ignition Components

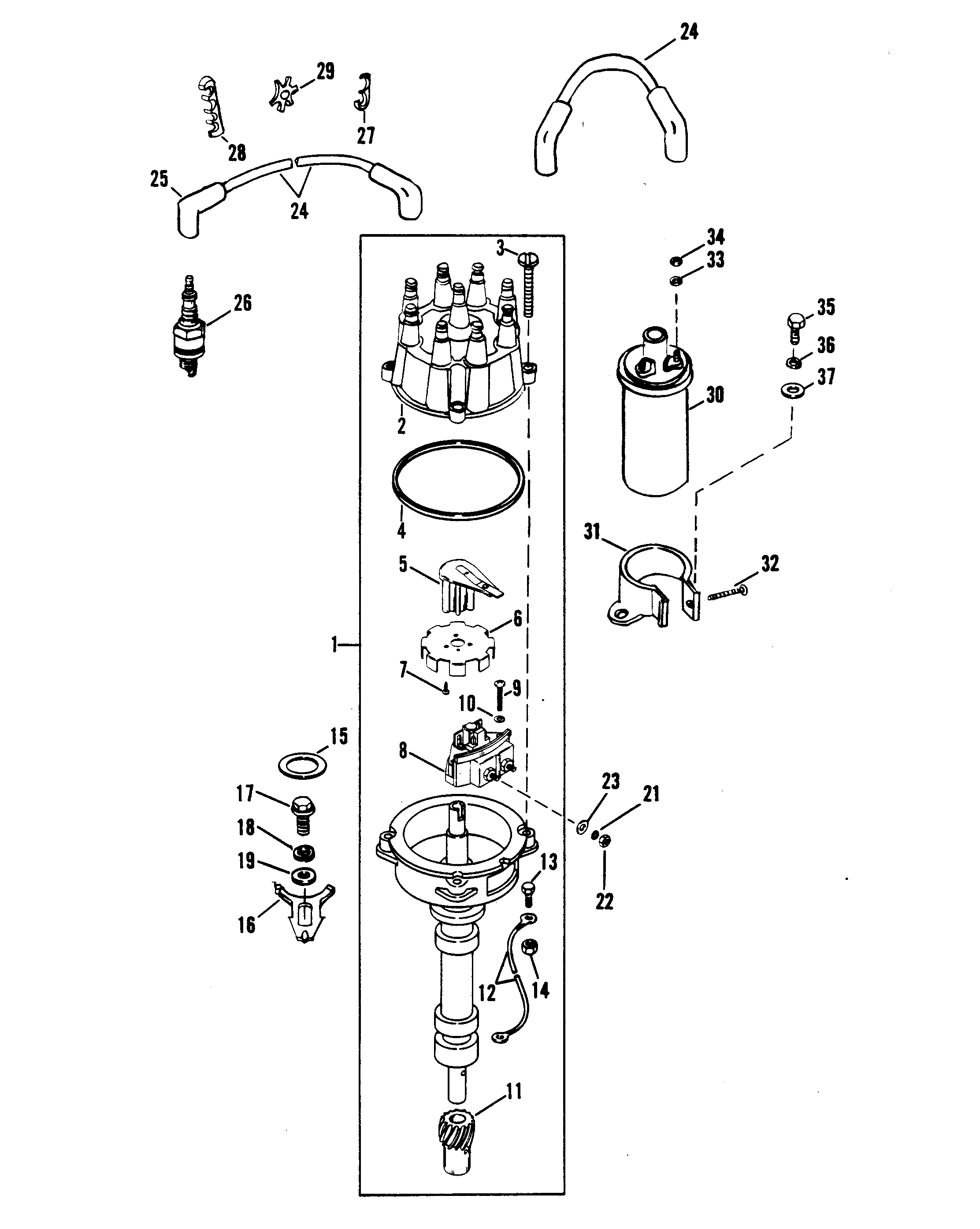

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 13497A3         DISTRIBUTOR ASSEMBLY 1   This Part is No Longer Available
2 805759T1         CAP, DISTRIBUTOR 1 16457A4
3 10-90926         SCREW, DISTRIBUTOR CAP 4
4 27-805760         GASKET, DISTRIBUTOR CAP 1 27-98242 2
5 13524T1         ROTOR 1 13524A3
6 13524A5         SENSOR WHEEL 1 42862
7 10-11252         SCREW, SENSOR WHEEL 3
8 87-892150Q02         SENSOR ASSEMBLY 1 87-91019A3
9 10-66686         SCREW, SENSOR 1
10 13-26996         LOCKWASHER, SENSOR SCREW 3
11 43-818807         GEAR, DRIVE 1 43-8137761
12 84-86322A17         CABLE ASSEMBLY (BLACK) 1   This Part is No Longer Available
13 10-72202         SCREW, CABLE 1
14 11-68219         NUT, CABLE SCREW 1
15 27-344863         GASKET, DISTRIBUTOR 1 27-344861 2
16 52185         CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD 1
17 10-34353         SCREW, DISTRIBUTOR CLAMP (1") 1
18 13-35048         LOCKWASHER, CLAMP SCREW 1
19 12-20553         WASHER, CLAMP SCREW 1
21 13-26996         LOCKWASHER, DISTRIBUTOR TERMINAL 2
22 11-68219         NUT, DISTRIBUTOR TERMINAL (10-32) 2
23 12-30164         WASHER, DISTRIBUTOR TERMINAL 2
24 84-816608Q61         SPARK PLUG WIRE KIT 1 84-813720A2
25 85-63709A1         BOOT ASSEMBLY, SPARK PLUG 8
26 33-8134214         SPARK PLUG 8 33-59660
27 54676         RETAINER, HIGH TENSION LEADS (2 WIRE) 2
28 32783         RETAINER, HIGH TENSION LEADS (3 WIRE) 2
29 32784         RETAINER, HIGH TENSION LEADS (4 WIRE) 4
30 300-8M0079202         COIL, IGNITION 1 392-7803A4
31 77294T         BRACKET, IGNITION COIL 1 77294 This Part is No Longer Available
32 10-41408         SCREW, BRACKET (1-1/2") 1
33 13-26996         LOCKWASHER, IGNITION COIL TERMINAL 2
34 11-68219         NUT, IGNITION COIL TERMINAL (#10-32) 2
35 10-86750         SCREW, IGNITION COIL (3/4") 2
36 13-26993         LOCKWASHER, IGNITION COIL SCREW 2
37 12-20084         WASHER, IGNITION COIL SCREW 2
