575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Transmission (Plug-In)

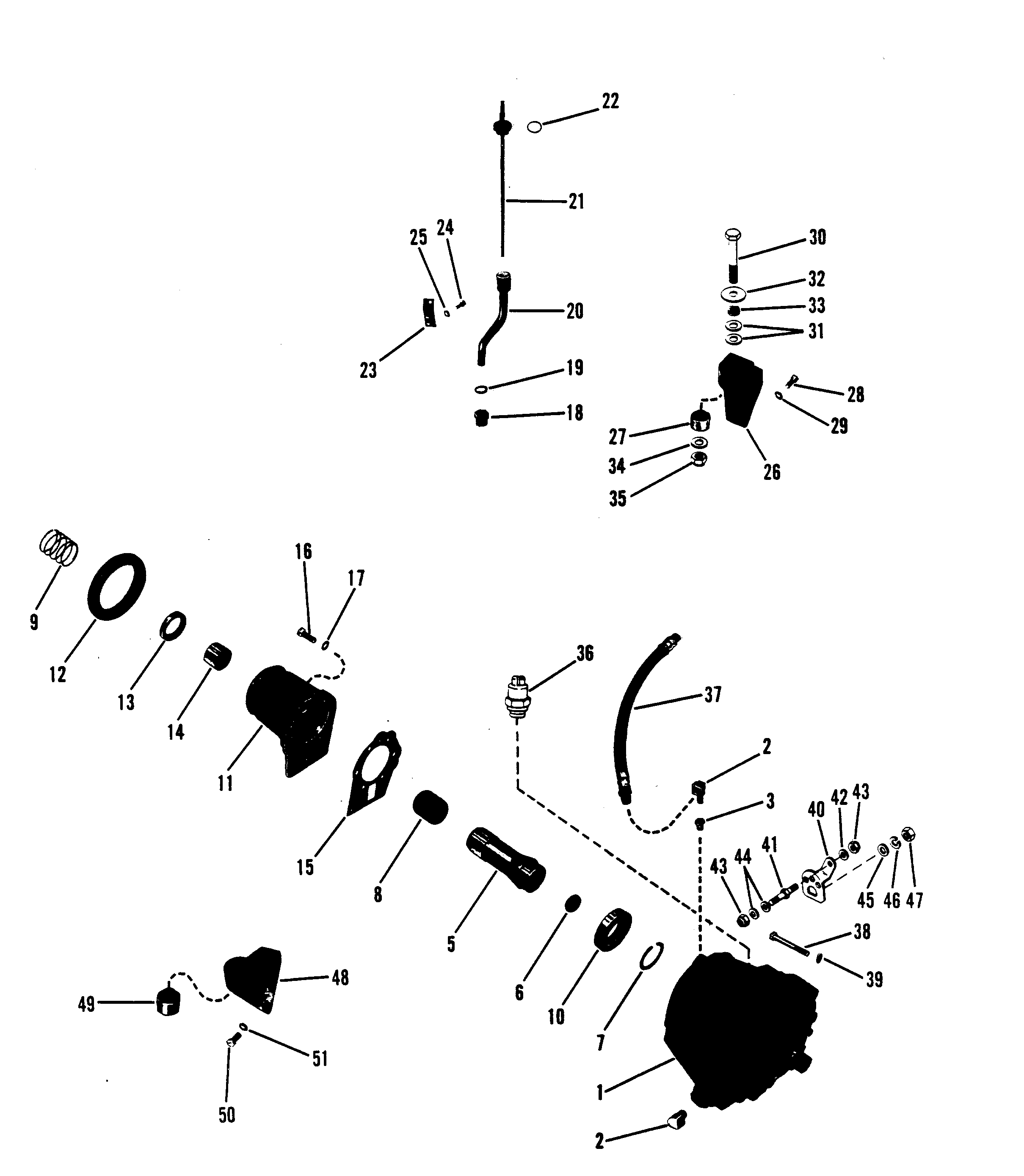

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 14746A1         TRANSMISSION ASSEMBLY 1   This Part is No Longer Available
2 22-47629         ELBOW, TRANSMISSION TO OIL HOSE 2
3 22-88517         BUSHING, REDUCING - TRANSMISSION ELBOW 1
5 47339A4         ENGINE COUPLING ASSEMBLY, TRANSMISSION 1   No longer made, limited availability
6 19-47463         PLUG, EXPANSION - ENGINE COUPLING 1
7 53-47469         RING, SNAP - BALL BEARING TO ENGINE COUPLING 1
8 23-47471T         BEARING, ENGINE COUPLING 1 23-47471
9 24-47755         SPRING, GUIDE - ENGINE COUPLING 1
10 30-47470         BALL BEARING, ENGINE COUPLING 1   TO TRANSMISSION
11 47333A1         HOUSING ASSEMBLY, BEARING SUPPORT 1   This Part is No Longer Available
12 25-47756         "O" RING, BEARING SUPPORT HOUSING 1
13 26-47465         OIL SEAL, BEARING SUPPORT HOUSING 1
14 31-47468T         ROLLER BEARING 1 31-47468 This Part is No Longer Available BEARING SUPPORT HOUSING
15 27-47903         GASKET, BEARING SUPPORT HOUSING 1
16 10-47462         SCREW, BEARING SUPPORT HOUSING TO 8   TRANSMISSION (1-1/4")
17 13-32993         LOCKWASHER, BEARING SUPPORT HOUSING SCREW 8
18 48461         ADAPTOR, OIL LEVEL GUAGE TUBE 1   This Part is No Longer Available TO TRANSMISSION
19 25-48462         "O" RING, OIL LEVEL TUBE ADAPTOR 1
20 48463         TUBE, OIL LEVEL GAUGE 1   This Part is No Longer Available
21 48464         GAUGE, OIL 1   This Part is No Longer Available
22 25-35276         "O" RING, OIL LEVEL GAUGE 1
23 48466         BRACKET, MOUNTING - OIL LEVEL GAUGE TUBE 1   This Part is No Longer Available
24 10-32417         SCREW, MOUNTING BRACKET TO TRANSMISSION MOUNT BRACKET 2
25 13-26992         LOCKWASHER, MOUNTING BRACKET SCREW 2
26 47340A1         BRACKET ASSEMBLY, TRANSMISSION MOUNT 1   (PORT)
27 35852         MOUNT, TRANSMISSION MOUNT BRACKET 1
28 10-47462         SCREW, MOUNT BRACKET TO TRANSMISSION 2   (1-1/4")
29 13-32993         LOCKWASHER, MOUNT BRACKET SCREW 2
30 10-47467         SCREW, TAILSTOCK TO INNER TRANSOM PLATE 2   (5-1/2")
31 12-47466         WASHER, TAILSTOCK SCREWS (NEPORENE) 4
32 12-47475         WASHER, TAILSTOCK SCREWS 2
33 13-34846         LOCKWASHER, TAILSTOCK SCREWS 2
34 12-33171         WASHER, TAILSTOCK SCREWS 2
35 11-22339         NUT, TAILSTOCK SCREWS 2
36 87-88031         SWITCH, TEMPERATURE 1
37 32-475166         HOSE, TRANSMISSION TO OIL COOLER (30") 2
38 10-60179         SCREW, TRANSMISSION TO ENGINE (3-1/2") 6
39 13-32993         LOCKWASHER, TRANSMISSION SCREW 6
40 12128         LEVER, SHIFT - TRANSMISSION 1
41 16-63335         STUD, SHIFT LEVER 1   This Part is No Longer Available
42 12-39143         WASHER, SHIFT LEVER STUD 1
43 11-8267089         NUT, SHIFT LEVER STUD 2 11-20361
44 12-29245         WASHER, SHIFT LEVER STUD 2
45 12-20722         WASHER, TRANSMISSION LEVER STUD 1   This Part is No Longer Available
46 13-26993         LOCKWASHER, TRANSMISSION LEVER STUD 1
47 11-22053         NUT, TRANSMISSION LEVER STUD 1
48 47334A2         BRACKET ASSEMBLY, TRANSMISSION MOUNT 1   This Part is No Longer Available (STARBOARD)
49 35852         MOUNT, TRANSMISSION MOUNT BRACKET 1
50 10-47462         SCREW, MOUNT BRACKET TO TRANSMISSION 2   (1-1/4")
51 13-32993         LOCKWASHER, MOUNT BRACKET SCREW 2
