| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

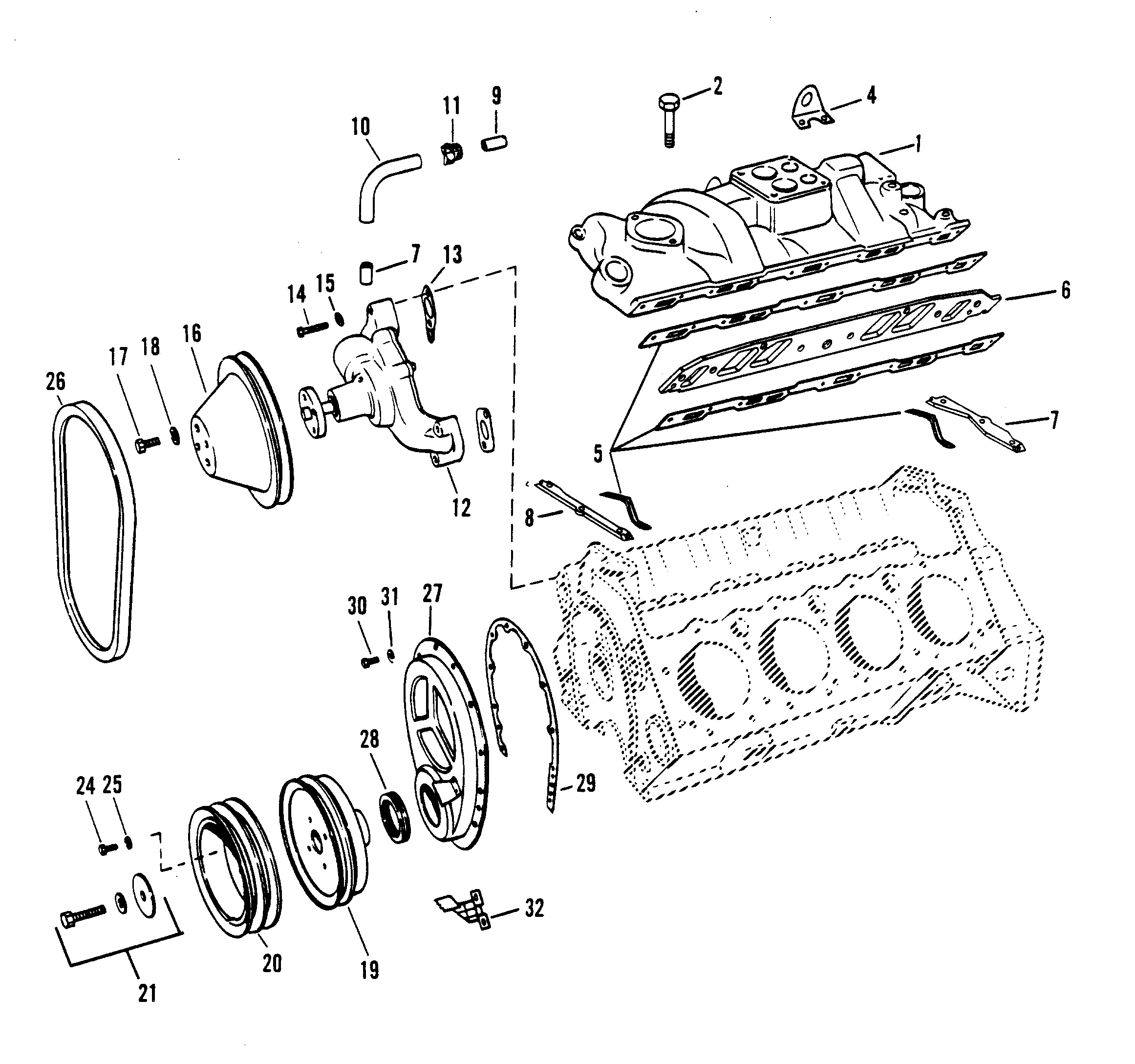

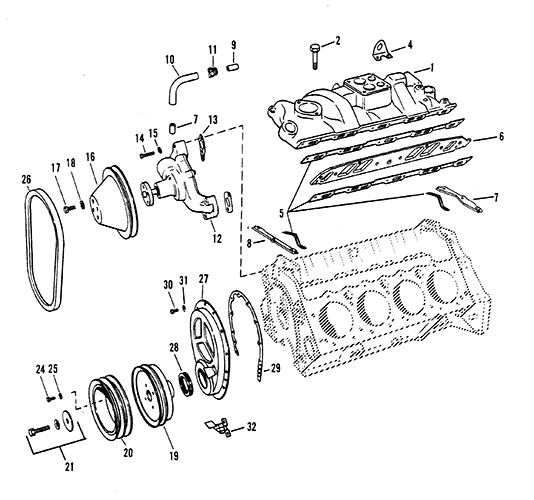

| 1 |
12376 |
|
|
|
|
INTAKE MANIFOLD |
1 |
|
This Part is No Longer Available |
| 2 |
10-358701 |
|
|
|
|
BOLT, INTAKE MANIFOLD |
12 |
10-64900 |
|
| 2 |
10-35787 |
|
|
|
|
BOLT, INTAKE MANIFOLD |
8 |
|
|
| 3 |
12-45175 |
|
|
|
|
WASHER, INTAKE MANIFOLD SCREW |
20 |
|
|
| 4 |
54-64628 |
|
|
|
|
LIFTING EYE |
2 |
54-646281 |
|
| 5 |
27-98086A1 |
|
|
|
|
GASKET SET, INTAKE MANIFOLD |
1 |
|
2 |
| 6 |
54637 |
|
|
|
|
ADAPTOR PLATE (SIDE) |
2 |
|
This Part is No Longer Available |
| 7 |
54636 |
|
|
|
|
ADAPTOR PLATE (REAR) |
1 |
|
|
| 8 |
54635 |
|
|
|
|
ADAPTOR PLATE (FRONT) |
1 |
|
|
| 9 |
22-806242 |
|
|
|
|
CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD |
2 |
22-66201 |
|
| 10 |
32-99520 |
|
|
|
|
HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD |
1 |
32-66206 |
|
| 11 |
54-180763 |
|
|
|
|
CLAMP, BY-PASS HOSE |
2 |
|
|
| 12 |
8504541 |
|
|
|
|
WATER PUMP |
1 |
17670 |
|
| 13 |
27-49110 |
|
|
|
|
GASKET, WATER PUMP MOUNTING |
2 |
|
2 |
| 14 |
10-32132 |
|
|
|
|
SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4") |
4 |
|
|
| 15 |
13-35048 |
|
|
|
|
LOCKWASHER, WATER PUMP SCREW |
4 |
|
|
| 16 |
137281 |
|
|
|
|
PULLEY, WATER PUMP |
1 |
|
|
| 17 |
10-47277 |
|
|
|
|
SCREW, PULLEY TO WATER PUMP (3/4") |
4 |
|
|
| 18 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, WATER PUMP TO PULLEY SCREW |
4 |
|
|
| 19 |
72605T1 |
|
|
|
|
BALANCER, HARMONIC - CRANKSHAFT |
1 |
726051 |
This Part is No Longer Available |
| 20 |
41450 |
|
|
|
|
PULLEY, HARMONIC BALANCER |
1 |
|
|
| 21 |
814441 |
|
|
|
|
BALANCER BOLT KIT |
1 |
|
This Part is No Longer Available |
| 24 |
10-94207 |
|
|
|
|
BOLT, PULLEY |
3 |
|
|
| 25 |
12-47393 |
|
|
|
|
WASHER, PULLEY BOLT |
3 |
|
|
| 26 |
57-14458Q |
|
|
|
|
BELT, ALTERNATOR DRIVE |
1 |
57-14458 |
|
| 27 |
66215 |
|
|
|
|
COVER, CRANKCASE |
1 |
|
This Part is No Longer Available |
| 28 |
26-8219471 |
|
|
|
|
OIL SEAL, CRANKCASE COVER |
1 |
26-49154 |
2 |
| 29 |
27-54529 |
|
676-9-61601 |
700-30440 |
|
GASKET, CRANKCASE COVER |
1 |
|
2 |
| 30 |
10-28635 |
|
|
|
|
SCREW, CRANKCASE COVER TO BLOCK (7/16") |
10 |
|
|
| 31 |
13-26992 |
|
|
|
|
LOCKWASHER, COVER SCREW |
10 |
|
|
| 32 |
59966 |
|
|
|
|
POINTER, TIMING |
1 |
|
|
