575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Thermostat Housing And Water Hoses

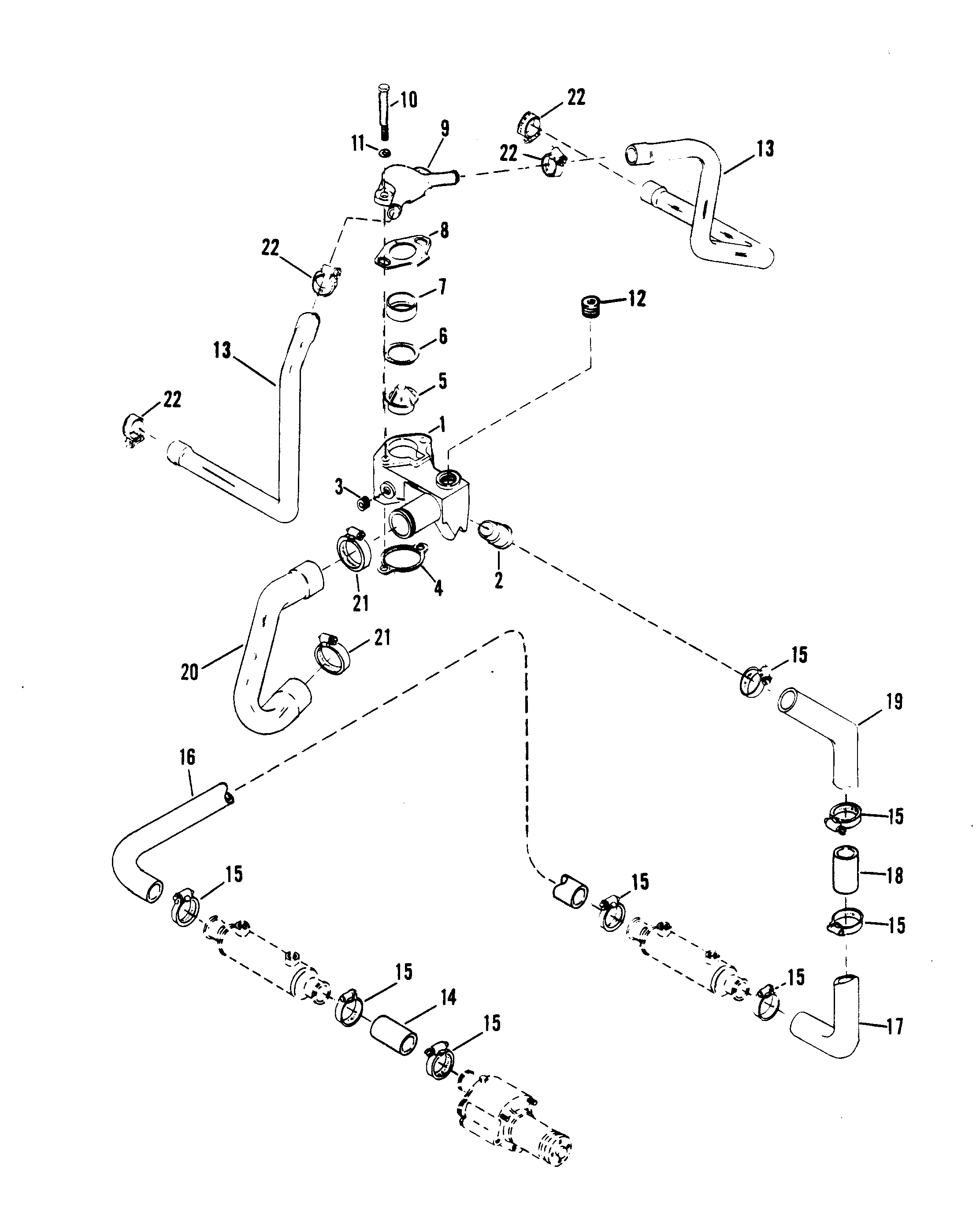

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 87290A4         THERMOSTAT HOUSING ASSEMBLY 1
2 23-47511         SLEEVE, THERMOSTAT HOUSING 1
3 22-32803         PIPE PLUG 2
4 27-530451         GASKET, THERMOSTAT HOUSING 1   2
5 807252T1         THERMOSTAT (143 DEGREES) 1 59137
6 27-47510         GASKET, THERMOSTAT 1   2
7 23-47508T         SLEEVE, THERMOSTAT 1 23-47508
8 27-488181         GASKET, THERMOSTAT COVER 2 27-48818 2
9 47441A1         COVER, THERMOSTAT 1
10 10-60410         SCREW, THERMOSTAT HOUSING TO INTAKE 2   MANIFOLD (4-1/4")
11 12-20553         WASHER, THERMOSTAT HOUSING SCREW 2
12 22-41622         PLUG, THERMOSTAT HOUSING 1 22-33198A1
13 32-9809070         HOSE, THERMOSTAT COVER 2   This Part is No Longer Available
14 32-8M0062665         HOSE, WATER PUMP TO OIL COOLER (7") 1 32-5346170
15 54-180766         CLAMP, HOSE ATTACHING 8
16 32-12817         HOSE, OIL COOLER TO OIL COOLER 1
17 32-848956         HOSE, OIL COOLER TO TUBE 1 32-12818
18 22-13177         TUBE, WATER HOSE 1
19 32-896998         HOSE, OIL COOLER TO THERMOSTAT HOUSING 1 32-64346
20 32-12807         HOSE, THERMOSTAT HOUSING 1   This Part is No Longer Available (W/O POWER STEERING)
20 32-770061         HOSE, THERMOSTAT HOUSING 1   This Part is No Longer Available (W POWER STEERING)
21 54-180769         CLAMP, HOSE ATTACHING 2   This Part is No Longer Available
22 54-180763         CLAMP, HOSE ATTACHING 4
