575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Flywheel Housing

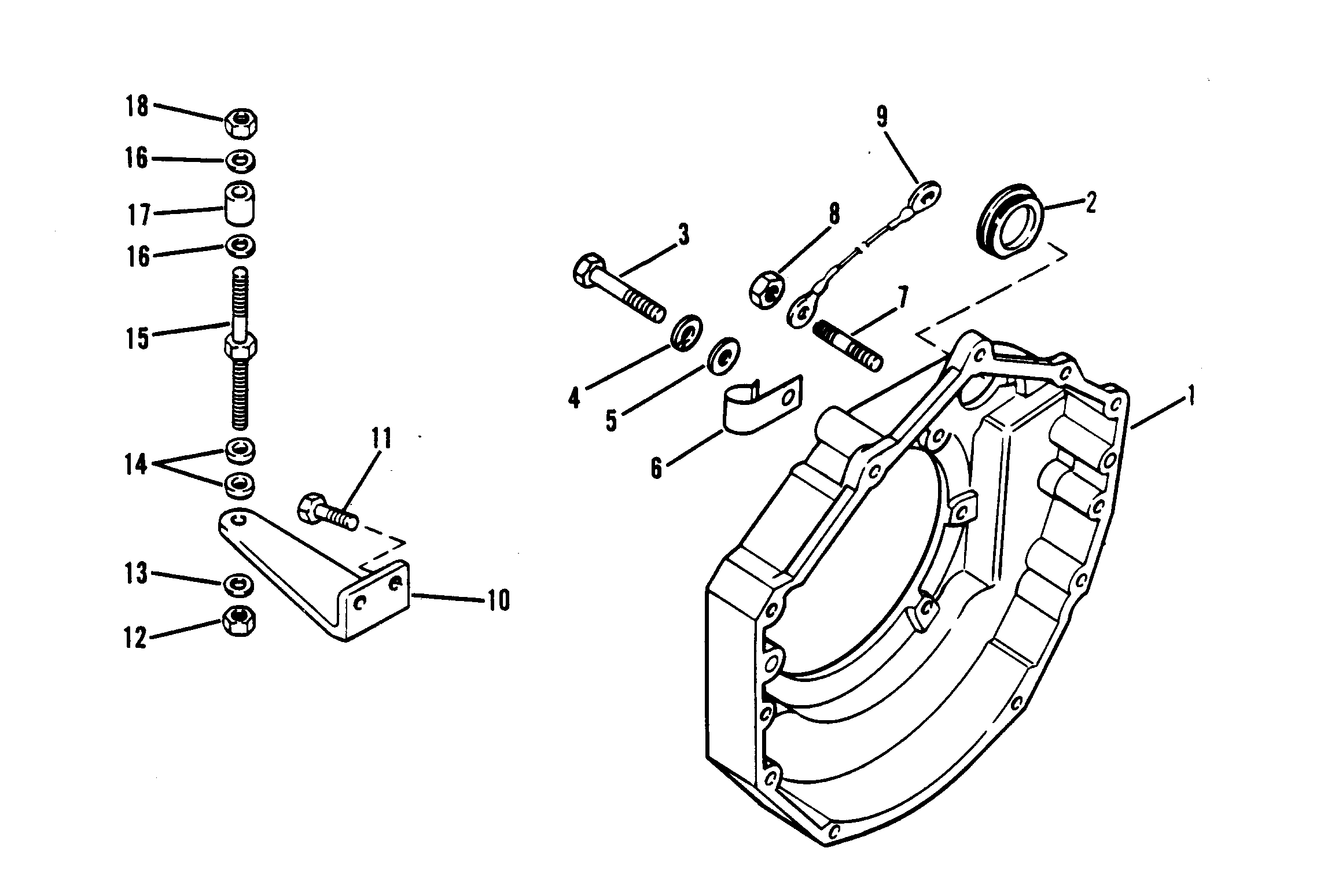

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 44187T         HOUSING, FLYWHEEL 1 441871
2 19-12304         PLUG, TIMING WINDOW 1
3 10-37612         SCREW, FLYWHEEL HOUSING 3
3 10-47688         SCREW, FLYWHEEL HOUSING 2
4 13-35048         LOCKWASHER, FLYWHEEL HOUSING 7   SCREW AND STUD
5 12-20553         WASHER, FLYWHEEL HOUSING SCREW 5
5 12-20572         WASHER, FLYWHEEL HOUSING SCREW 1   (FOR SLOT)
6 54-62494         CLAMP, FLYWHEEL HOUSING SCREW 1
7 16-64066         STUD, FLYWHEEL HOUSING (2-1/4") 2
8 11-32219         NUT, FLYWHEEL HOUSING STUD 2
9 84-62826A7         WIRE ASSEMBLY, GROUND 1   This Part is No Longer Available
10 17917         BRACKET, SHIFT 1
11 10-28668         SCREW, SHIFT BRACKET 2
12 11-826709109         NUT, SHIFT STUD 1 11-20586
13 12-39143         WASHER, SHIFT STUD 1
14 23-53811         SPACER, SHIFT STUD 2
15 16-63335         STUD, SHIFT 1   This Part is No Longer Available
16 12-69056         WASHER, SHIFT STUD 2 12-21631
17 23-31866         SPACER, SHIFT STUD 1
18 11-8267089         NUT, SHIFT STUD 1 11-20361
