575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Power Steering Components (M0036-022)

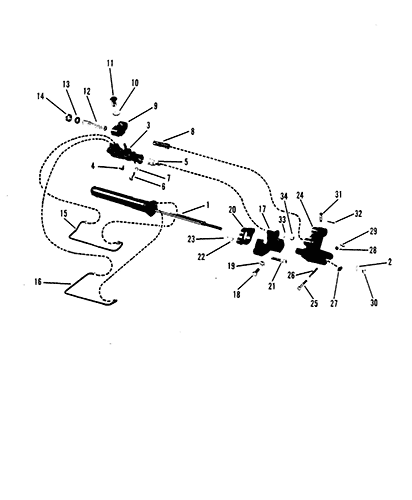

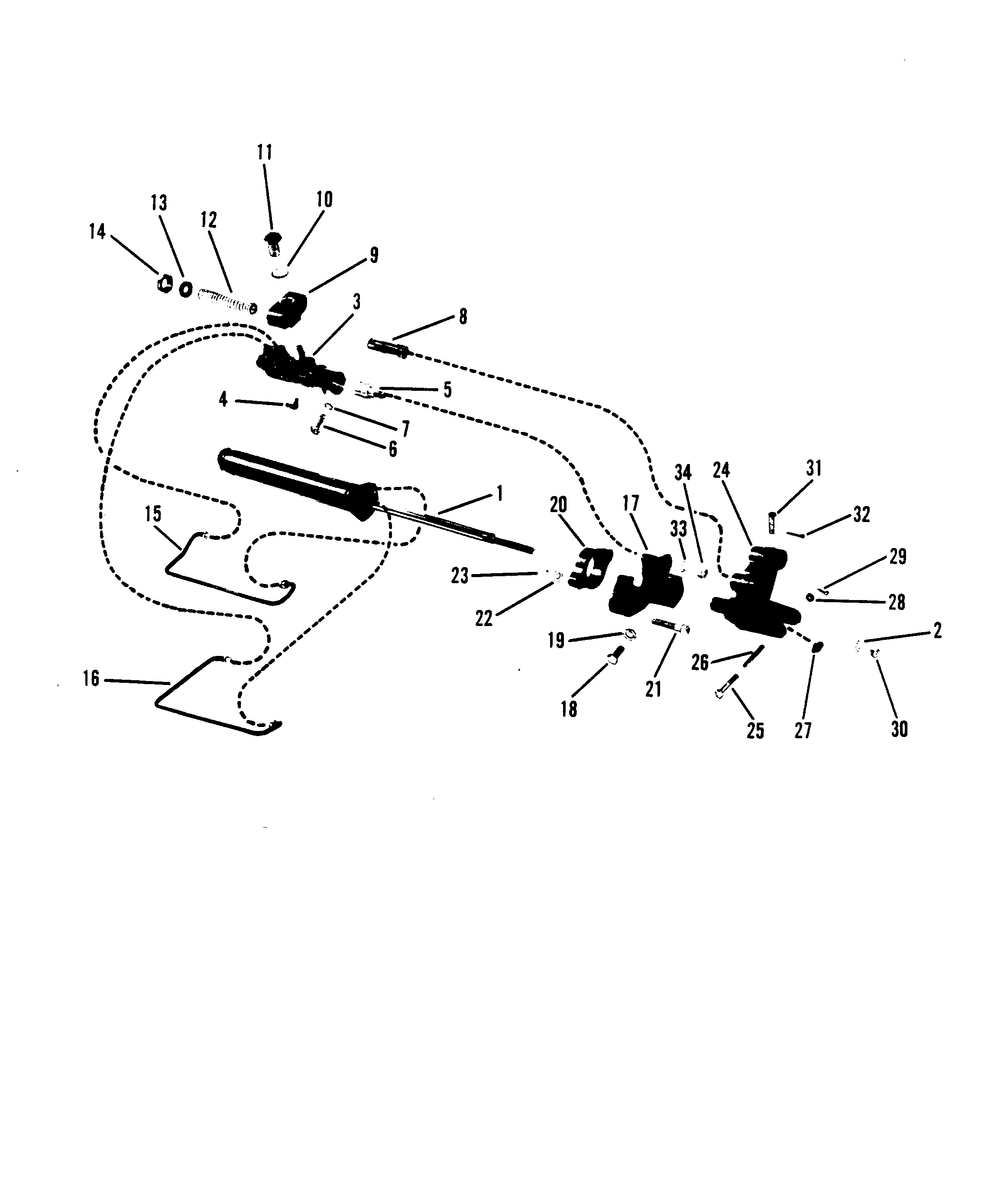

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 85618T         CYLINDER (25-58224A1 SEAL REPAIR KIT) 1   This Part is No Longer Available
2 12-20086         WASHER, BOOSTER CYLINDER SHAFT 1
3 816458A1         VALVE, STEERING (25-58226A1 SEAL REPAIR KIT) 1 52779A2 This Part is No Longer Available
4 22-67305         GREASE FITTING 1   No longer made, limited availability
5 16-55109T         STUD, ADAPTOR - POWER STEERING VALVE 1   This Part is No Longer Available
6 10-68101         SCREW, CLAMPING (1-1/4") 1
7 13-35048         LOCKWASHER, CLAMPING SCREW 1
8 23-87592A1         SLEEVE KIT 1   This Part is No Longer Available
9 55110T         ADAPTOR, CABLE GUIDE TUBE (DUAL) 1 55110 This Part is No Longer Available
10 13-76629         LOCKWASHER, DUAL ADAPTOR NUT 1
11 11-55111         NUT, DUAL ADAPTOR TO POWER STEERING VALVE 1   This Part is No Longer Available
12 32-55112         TUBE, CABLE GUIDE 1   This Part is No Longer Available
13 12-37985         WASHER, CABLE GUIDE TUBE 1   This Part is No Longer Available
14 11-37984         NUT, CABLE GUIDE TUBE 1
15 32-78895         TUBE, EXTENDING - POWER STEERING 1
16 32-78896         TUBE, RETRACTING - POWER STEERING 1   This Part is No Longer Available
17 NSS         NOT SOLD SEPARATE, BRACKET, MOUNTING - TRANSOM PLATE 1   1
18 10-31832         SCREW, MOUNTING BRACKET TO TRANSOM PLATE 2
19 13-31848         LOCKWASHER, MOUNTING BRACKET SCREW 2
20 93520         COLLAR, CLAMPING 1   This Part is No Longer Available
21 NSS         NOT SOLD SEPARATE, SCREW, MOUNTING BRACKET TO COLLAR (2") 2   1
22 12-20086         WASHER, MOUNTING BRACKET SCREW 2
23 11-69254         NUT, MOUNTING BRACKET SCREW 2
24 79988A1         CLEVIS, ROD END 1   This Part is No Longer Available
25 10-67462         SCREW, ROD END CLEVIS TO STEERING ARM 1   This Part is No Longer Available (2-1/4")
26 23-55118         SPACER, ROD END CLEVIS SCREW 1   This Part is No Longer Available
27 23-60776         BUSHING, CLEVIS 1   This Part is No Longer Available
28 11-49662         NUT, ROD END CLEVIS SCREW 1   This Part is No Longer Available
29 18-32665         COTTER PIN, CLEVIS SCREW NUT 1
30 11-53300         NUT, BOOSTER CYLINDER SHAFT 1   This Part is No Longer Available
31 17-52798         PIN, CLEVIS - STEERING CABLE ATTACHING 1
32 18-46950         COTTER PIN, CLEVIS PIN RETAINING 1
33 12-20959         WASHER, VALVE ADAPTOR STUD 1
34 11-898832         NUT, VALVE ADAPTOR STUD 1 11-28040
