575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Starter And Alternator

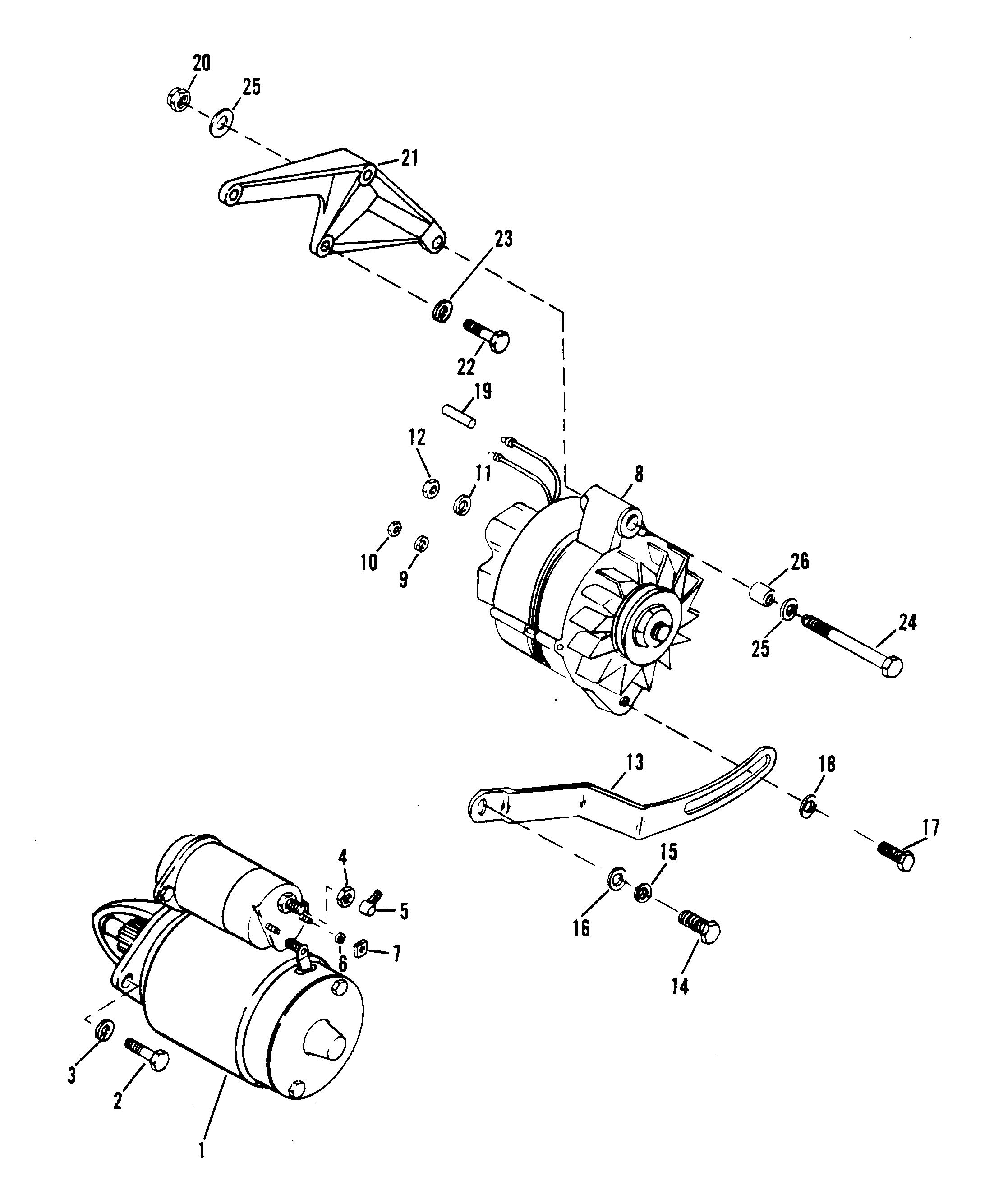

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-808011A05   676-9-15908     STARTER MOTOR 1 50-17251A3
2 10-47461         SCREW, STARTER MOTOR 2

3 13-32993         LOCKWASHER, STARTER MOTOR SCREW 2

4 11-86226         NUT, STARTER TERMINAL (3/8-16) OPT.
3
4 11-4013610         NUT, STARTER TERMINAL (10MM) OPT. 11-400266 3
5 85-79695T         BOOT, INSULATOR - STARTER TERMINAL 1 85-79695
6 13-26995         LOCKWASHER, STARTER TERMINAL 1
#8-32 NUT
7 11-26419         NUT, STARTER TERMINAL 1
#8-32 NUT
6 13-26996         LOCKWASHER, STARTER TERMINAL 1
5MM NUT
7 11-400211         NUT, STARTER TERMINAL 1
5MM NUT
8 817119A4 620-3186M 676-9-19101     ALTERNATOR 1 92497A3
9 13-26996         LOCKWASHER, ALTERNATOR TERMINAL 1

10 11-30968         NUT, ALTERNATOR TERMINAL (10-24) 1   This Part is No Longer Available
11 13-21272         LOCKWASHER, ALTERNATOR TERMINAL 1

12 11-64015         NUT, ALTERNATOR TERMINAL (1/4-20) 1

13 85013T         BRACE, ALTERNATOR ADJUSTING 1 85013
14 10-47461         SCREW, ALTERNATOR BRACE (1") 1

15 13-32993         LOCKWASHER, ALTERNATOR BRACE SCREW 1

16 12-27025         WASHER, ALTERNATOR BRACE SCREW 1

17 10-29198         SCREW, ALTERNATOR BRACE (7/8") 1

18 12-26168         WASHER, ALTERNATOR BRACE SCREW 1

19 5790811         TUBING, ALTERNATOR LEADS 1

20 11-23161         NUT, ALTERNATOR BRACKET SCREW 1

21 47487T         BRACKET, ALTERNATOR 1 47487A2 This Part is No Longer Available
22 10-34353       525-10-34353 SCREW, ALTERNATOR BRACKET (1") 2

22 10-358701         SCREW, ALTERNATOR BRACKET (2") 1 10-64900
23 13-35048     700-21495   LOCKWASHER, ALTERNATOR BRACKET SCREW 3

24 10-48308         SCREW, ALTERNATOR (3-3/4") 1

25 12-20553     700-21675   WASHER, ALTERNATOR BRACKET SCREW 3 12-25970
26 23-33186         BUSHING, ALTERNATOR BRACKET SCREW 1
