575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Cylinder Head And Rocker Cover

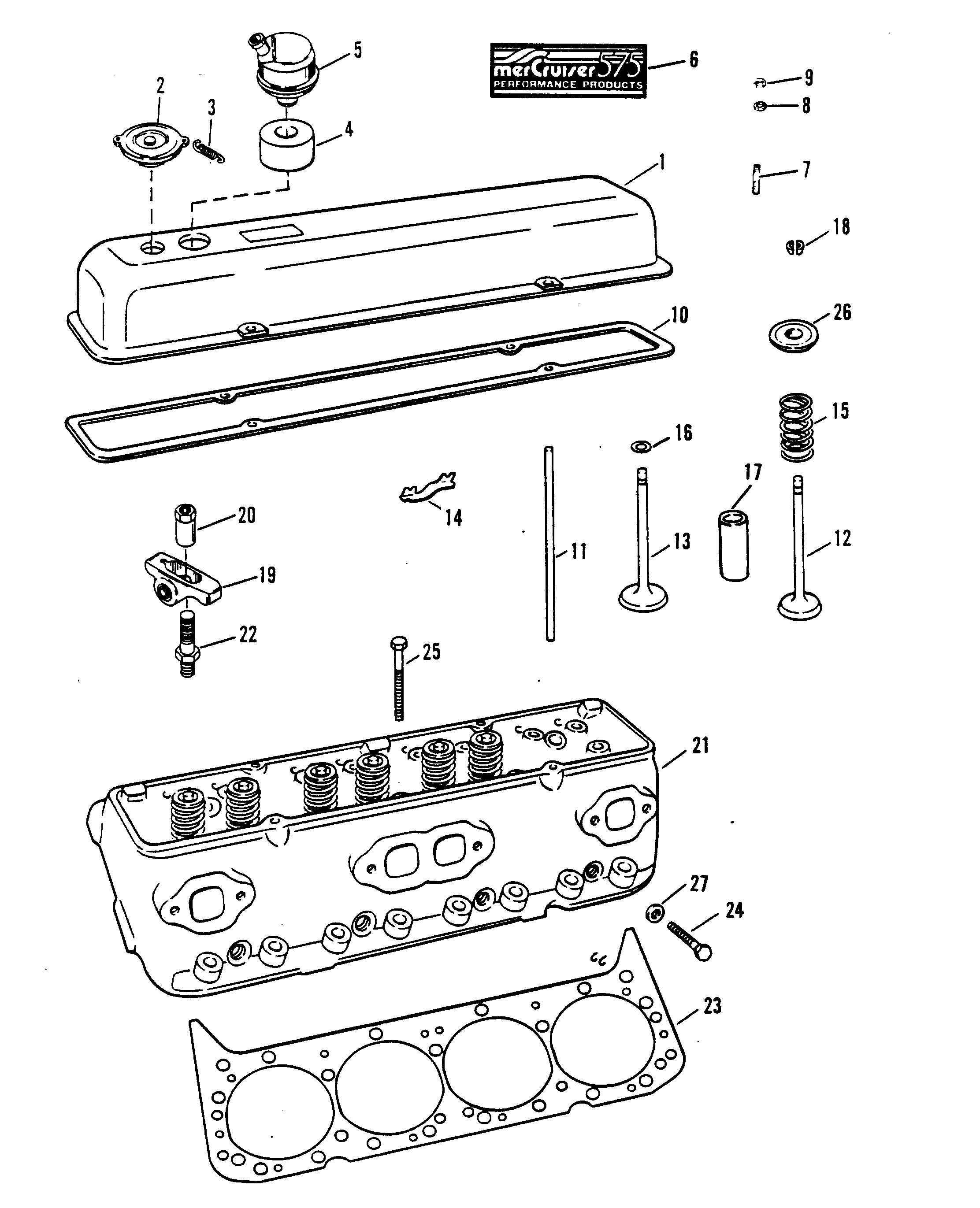

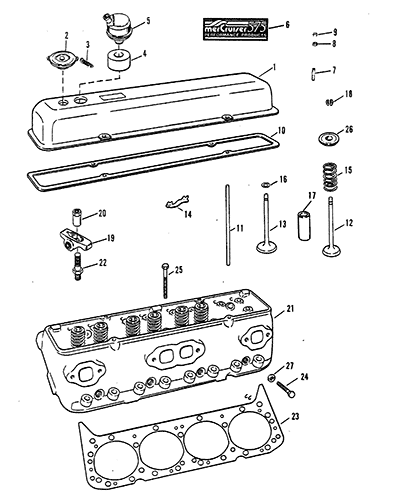

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 821948T1         ROCKER COVER 2 77679 This Part is No Longer Available
2 17345         CAP, OIL FILLER 2 36-14903
3 24-70086         SPRING, FILLER CAP 2   No longer made, limited availability
4 25-49767         GROMMET, ROCKER COVER 2   This Part is No Longer Available
5 41598T         BREATHER, ROCKER COVER 2 14902 This Part is No Longer Available
6 37-818991         DECAL 2 37-165925
7 16-56766         STUD, ROCKER COVER 14
8 12-39143         WASHER, ROCKER COVER STUD 14
9 11-8267089         NUT, ROCKER COVER STUD 14 11-20361
10 27-49121         GASKET, ROCKER COVER 2 27-91831 2
11 848509         ROD, VALVE PUSH (INLET) 8 96023
11 848508         ROD, VALVE PUSH (EXHAUST) 8 96024
12 843080         VALVE, EXHAUST (STANDARD) 8 13024
13 986781         VALVE, INLET (STANDARD) 8
14 13559         GUIDE, PUSH ROD 8   This Part is No Longer Available
15 24-69288         SPRING, VALVE 16   This Part is No Longer Available
16 15-845669         SHIM, INLET VALVE SPRING 8 15-54531
17 23-79781         BUSHING 16   This Part is No Longer Available
18 96028         KEY, VALVE STEM (INCLUDES 32 KEYS) 1
19 14729T1         ARM, VALVE ROCKER 16 147291
20 11-14985         NUT, VALVE ROCKER ARM 16   This Part is No Longer Available
21 938-816778T3         CYLINDER HEAD ASSEMBLY 2 938-9221
22 95820         STUD, VALVE ROCKER ARM 16
23 27-42591         GASKET, CYLINDER HEAD 2 27-13217 2
24 10-8M0000463         BOLT, CYLINDER HEAD (2") 8 10-49106
25 10-8M0000482         BOLT, CYLINDER HEAD (4-1/8") 24 10-49105
26 14368         RETAINER, VALVE SPRING 16   This Part is No Longer Available
27 12-45176         WASHER, CYLINDER HEAD BOLT 8
