575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Starter Motor

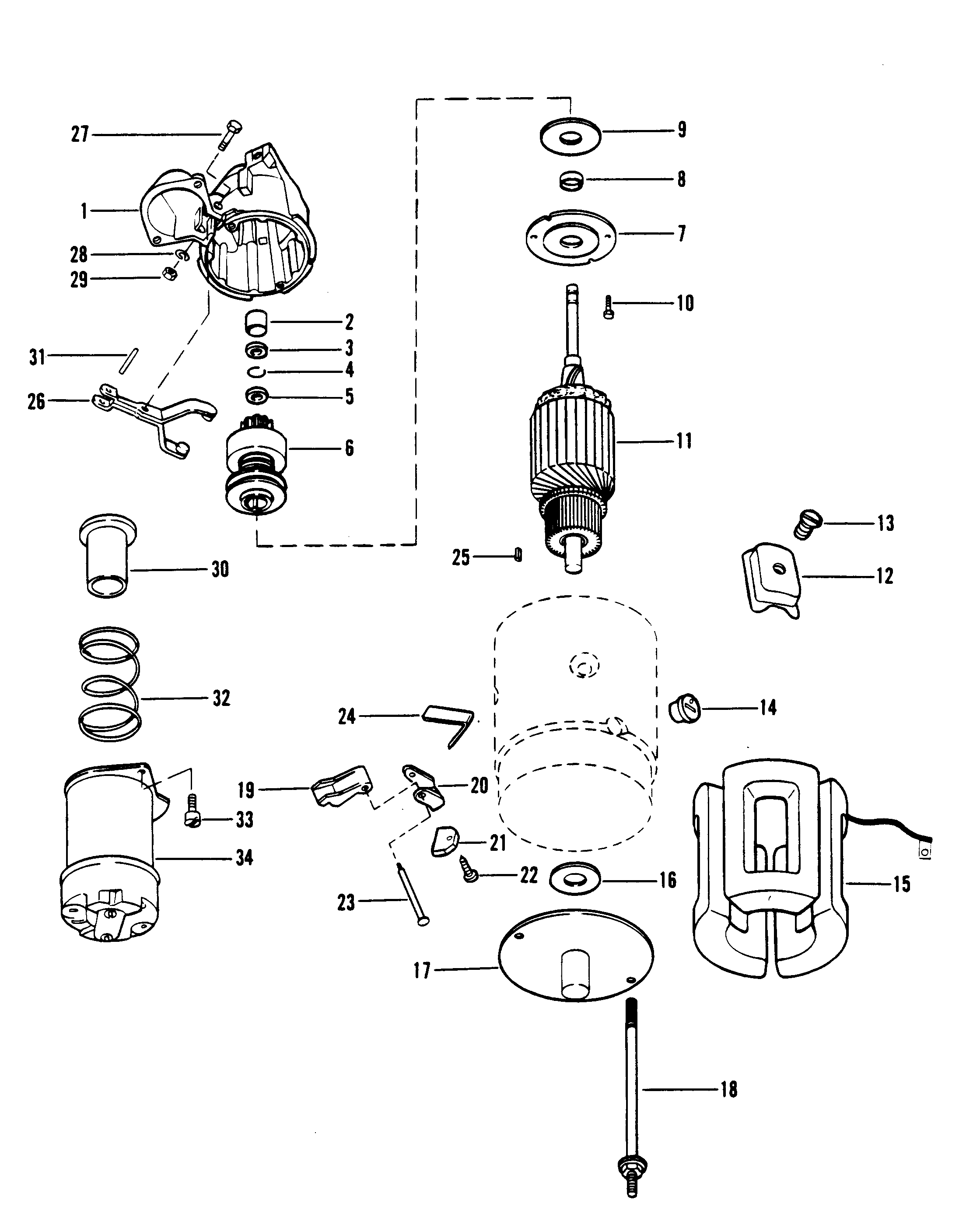

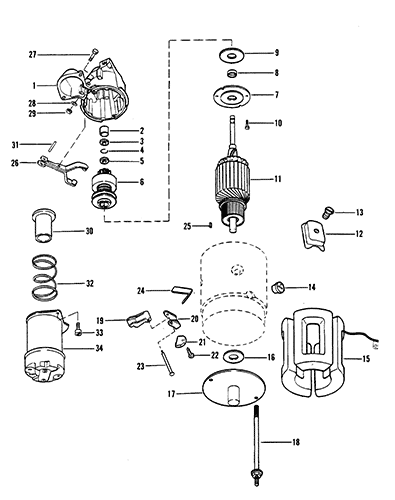

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 50-808011A05   676-9-15908     STARTER MOTOR ASSEMBLY 1 50-17251A3
1 79206         HOUSING, DRIVE END 1   This Part is No Longer Available
2 23-33369         BUSHING, DRIVE END HOUSING 1   This Part is No Longer Available
3 23-809457         COLLAR, THRUST 1 33292 This Part is No Longer Available
4 53-33290         RING, RETAINING - PINION STOP COLLAR 1

5 33291         COLLAR, PINION STOP 1

6 68608         DRIVE ASSEMBLY, CLUTCH 1   This Part is No Longer Available
7 79396         PLATE, BEARING 1   This Part is No Longer Available
8 23-71694         BUSHING, BEARING PLATE 1   This Part is No Longer Available
9 12-68614         WASHER, BEARING PLATE 1   This Part is No Longer Available
10 10-79209         SCREW, BEARING PLATE 2   This Part is No Longer Available
11 68606         ARMATURE 1   This Part is No Longer Available
12 NSS         NOT SOLD SEPARATE, SHOE, POLE - FIELD COIL 4
This part is not sold separate (DELCO REMY #810601) 1
13 NSS         NOT SOLD SEPARATE, SCREW, POLE SHOE TO FIELD COIL 4
This part is not sold separate (DELCO REMY #1968396) 1
14 NSS         NOT SOLD SEPARATE, GROMMET, FIELD COIL 1
This part is not sold separate (DELCO REMY #1846097) 1
15 NSS         NOT SOLD SEPARATE, FIELD COIL ASSEMBLY 1
This part is not sold separate (DELCO REMY #1970467) 1
16 NSS         NOT SOLD SEPARATE, WASHER, LEATHER 1
This part is not sold separate (DELCO REMY #1985617) 1
17 79211         FRAME, COMMUTATOR END - LOWER 1   This Part is No Longer Available
18 NSS         NOT SOLD SEPARATE, BOLT, THRU 2
This part is not sold separate (DELCO REMY #1939970) 1
19 33284         HOLDER, INSULTATED - FIELD FRAME BRUSH 2   This Part is No Longer Available
20 33283         HOLDER, FIELD FRAME BRUSH GROUND 2   This Part is No Longer Available
21 33270         BRUSH, FIELD FRAME 4

22 NSS         NOT SOLD SEPARATE, SCREW, BRUSH LEAD 2
This part is not sold separate (DELCO REMY #1967747) 1
22 NSS         NOT SOLD SEPARATE, SCREW, BRUSH LEAD 2
This part is not sold separate (DELCO REMY #443527) 1
23 33294         SUPPORT PACKAGE 2   This Part is No Longer Available GROUND AND INSULATED HOLDERS
24 24-33285         SPRING, FIELD FRAME BRUSH 4   This Part is No Longer Available
25 NSS         NOT SOLD SEPARATE, PIN, DOWEL - FIELD FRAME 1
This part is not sold separate (DELCO REMY #1985696) 1
26 33297         LEVER, SHIFT 1   This Part is No Longer Available
27 NSS         NOT SOLD SEPARATE, STUD, SHIFT LEVER 1
This part is not sold separate (DELCO REMY #1814529) 1
28 12-68615         WASHER, SHIFT LEVER STUD 1   This Part is No Longer Available
29 11-26484         NUT, SHIFT LEVER STUD 1

30 33317         PLUNGER, SHIFT LEVER 1   This Part is No Longer Available
31 17-79207         PIN, PLUNGER TO SHIFT LEVER 1   This Part is No Longer Available
32 24-46889         SPRING, PLUNGER RETURN 1   This Part is No Longer Available
33 NSS         NOT SOLD SEPARATE, SCREW, SOLENOID SWITCH 2
This part is not sold separate (DELCO REMY #132255) 1
34 13037         SOLENOID SWITCH (4-1/4" LONG) 1

34 89-18080   676-9-15102 700-72460   SOLENOID SWITCH (3-5/8" LONG) 1   This Part is No Longer Available
