7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Alternator and Starter (Mando)

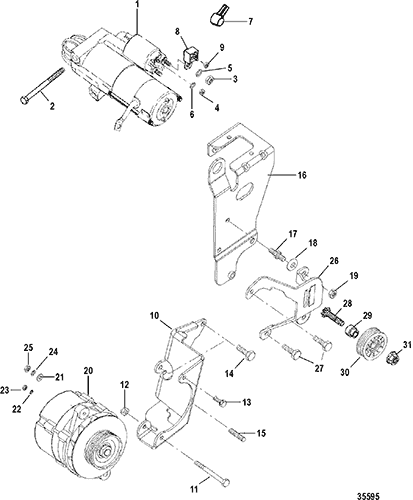

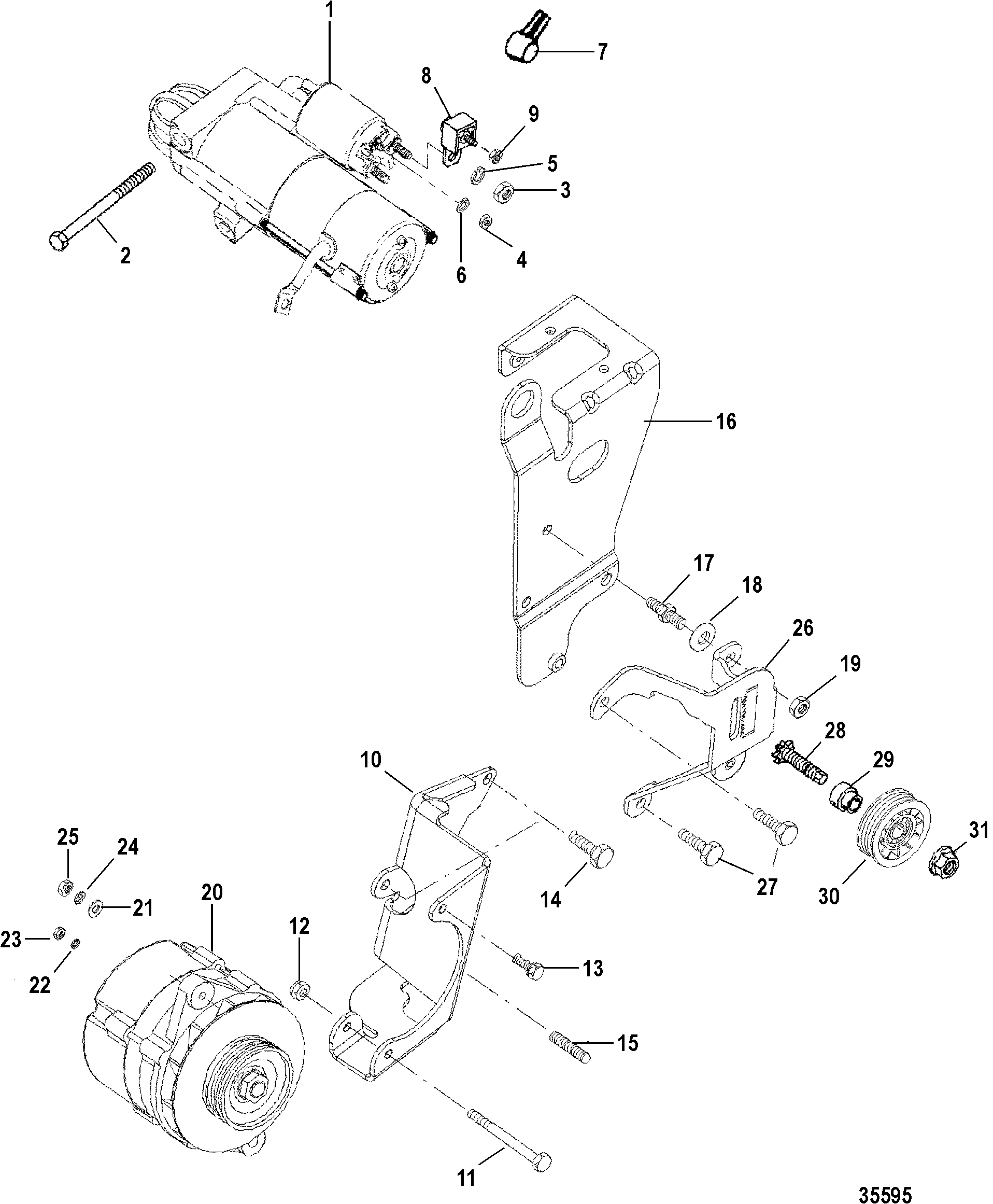

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1
676-9-15907
602-10099MD
or
620-5399M STARTER MOTOR ASSEMBLY 1 50-806964A4
2 10-8053432



SCREW, (.375-16 x 4.33) 2

3 11-806949



NUT, (M8-1.5) 1
4 11-400211



NUT, (M5) Stainless Steel 1

5 13-400247



LOCKWASHER, (M8) 1
6 13-26996



LOCKWASHER, (#10) Stainless Steel 1
7 85-79695T



BOOT, Insulator - Black 1 85-79695
8 88-79023A91
676-9-15510

FUSE ASSEMBLY, 90 Ampere 1
9 11-8267119



NUT, (.250-28) 1
10 861047



BRACKET 1
11 10-56743



SCREW, (.375-24 x 3.125) 1
12 11-23161



NUT, (.375-24) 1
13 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) 1
14 10-17965



SCREW, (.437-14 x .70) 2
15 16-806591



STUD, (7/16-14) 1
16 861046



BRACKET, Power Assisted Steering/Lifting Eye 1
17 16-861174



STUD (7/16-14 X 1 IN.) 2
18 12-34567



WASHER 2
19 11-29553



NUT, (.437-14) 2
20 807653T
676-9-19104
602-20057 ALTERNATOR ASSEMBLY 1
21 12-96457



WASHER, Phenolic (.27 x .81 x .062) 1
22 13-26996



LOCKWASHER, (#10) Stainless Steel 1
23 11-79989



NUT, (#10-24) Stainless Steel 1
24 13-26992



LOCKWASHER, (.250) Stainless Steel 1
25 11-94330



NUT, (.250-20) Brass 1
26 861045



BRACKET, Idler 1
27 10-92913



SCREW, (.437-14 x .750) 2
28 43-8183812



PINION STUD, (.437-20) Stainless Steel 1

29 865193



BUSHING 1 818380T
30 807757T



PULLEY ASSEMBLY, Idler - Black 1

31 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 1
