7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Shift Bracket

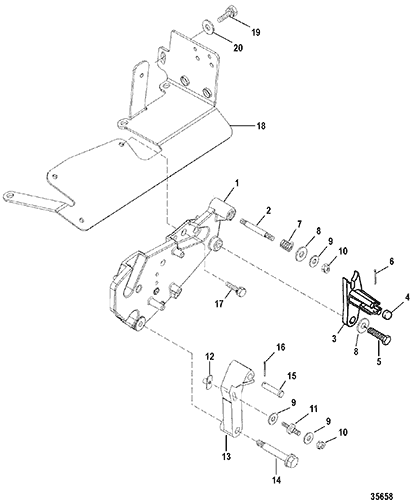

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Bracket And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold And Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Standard Cooling System
- Starter Motor (PG260)
- Throttle Body And Linkage
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY, Shift | 1 | 807962A3 | |||||
| 2 | 16-865154A02 | STUD, (.250-20/.250-28 x 2.120) | 1 | 16-987981 | |||||
| 3 | 865434A02 | RETAINER | 1 | 123811 | |||||
| 4 | 23-98828 | SPACER | 1 | ||||||
| 5 | 10-53167 | SCREW, (.312-18 x .880) | 1 | ||||||
| 6 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 2 | ||||||
| 9 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 4 | ||||||
| 10 | 11-8267119 | NUT, (.250-28) | 2 | ||||||
| 11 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 12 | 11-63341 | TEE NUT | 1 | ||||||
| 13 | 863911A12 | LEVER | 1 | 138981 | |||||
| 14 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 15 | 17-68402 | PIN, (.250 x 1.13) | 1 | ||||||
| 16 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 17 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | 3 | ||||||
| 18 | 861099 | BRACKET | 1 | 1 | |||||
| 19 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 1 | ||||||
| 20 | 12-26168 | WASHER | 1 |
