7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Electrical Bracket And Components

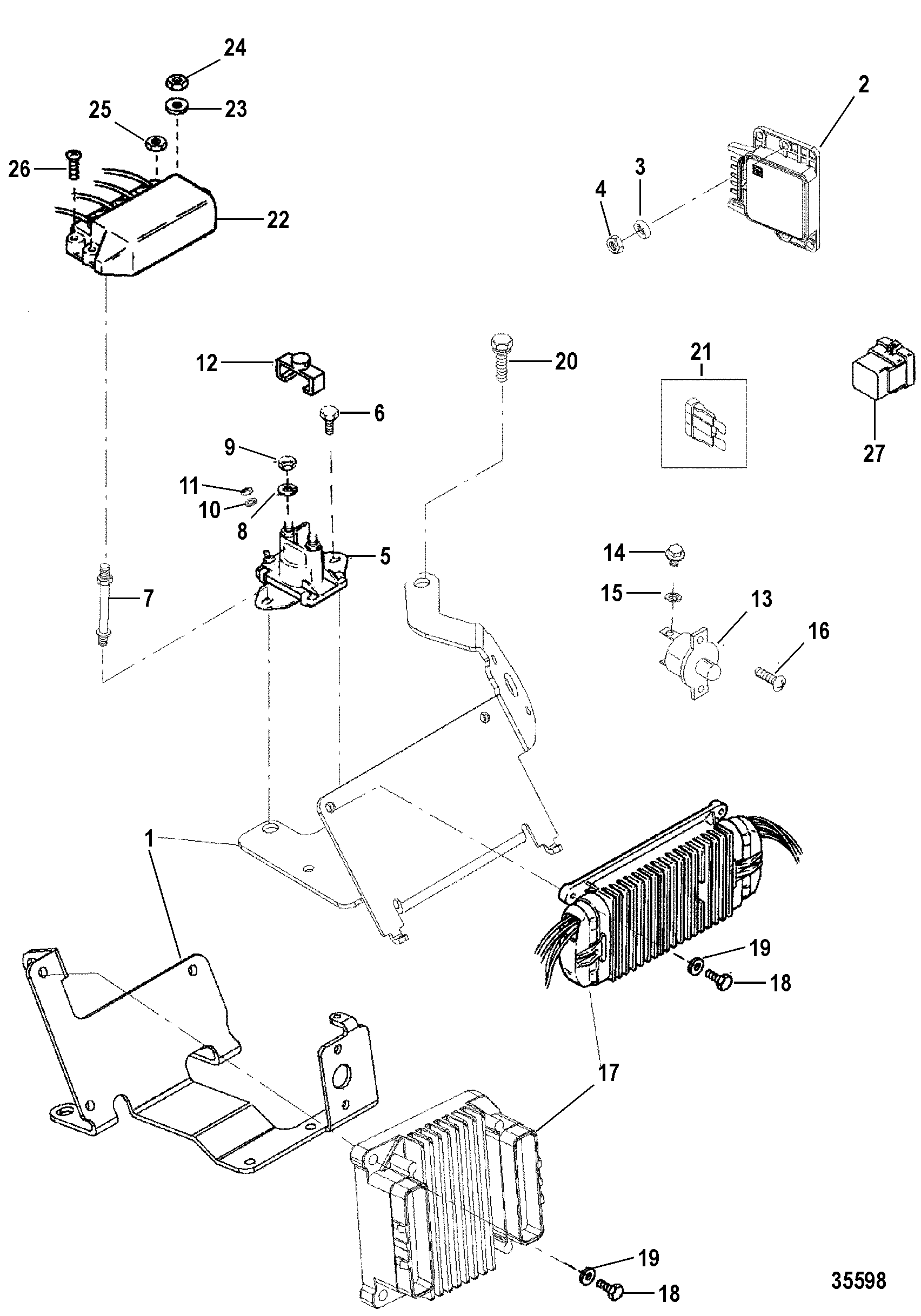

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 861096T



BRACKET, Electrical Components 1    This Part is NLA from Mercruiser.
1 861715T1



BRACKET, Electrical 1
 This Part is NLA from Mercruiser. (MEFI-3 SN# 0L086001 & Up 1)
2 861535T



MODULE ASSEMBLY, Spark Control 1
3 12-20533



WASHER 2

4 11-805562



NUT, (#10-24) 2
5 89-96158T
676-9-15112 700-72400
SOLENOID 1
6 10-28635



SCREW, (.250-20 x .620) Stainless Steel 1
7 16-805459



STUD, Mercathode Mounting 2
8 13-26992



LOCKWASHER, (.250) Stainless Steel 2
9 11-94330



NUT, (.250-20) Brass 2
10 13-26996



LOCKWASHER, (#10) Stainless Steel 2
11 11-68219



NUT, (#10-32) Stainless Steel 2
12 85-97861



INSULATOR 1
13 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-806950
14 10-68513



SCREW, (#10-32 x .375) Stainless Steel 2
15 13-26996



LOCKWASHER, (#10) Stainless Steel 2
16 10-57583



SCREW, (#8-32 x .375) 2
17 861736R1



ECM, Engine Control Module 1     This Part is NLA from Mercruiser. (MEFI-2 SN# 0L086000 & Below)
17 891897A01



ECM, Engine Control Module 1 861720T2  MEFI-3 SN# 0L086001 & Up 1
18 10-76596



SCREW, (.250-20 x 1.250) 2
18 10-28636



SCREW, (.250-20 x .750) 3    MEFI-3 SN# 0L086001 & Up 1
19 12-20533



WASHER 2
20 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) 1
21 88-804642



FUSE, 15 Ampere 1 805704 No longer made, limited availability
21 88-804641



FUSE, 10 Ampere 1 805703
22 42600A09



CONTROLLER ASSEMBLY 1 42600A3
23 12-56681



WASHER, (.203 x .500 x .032) 2
24 11-46438



NUT, (#10-32) 2    11-68219/tr>
25 11-68219



NUT, (#10-32) Stainless Steel 4
26 10-62568



SCREW, (#10-16 x .375) 1
27 86-865202T



RELAY, FUEL PUMP 1 807057T
27 86-865202T



RELAY, IGNITION SYSTEM 1 807057T
