7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Standard Cooling System

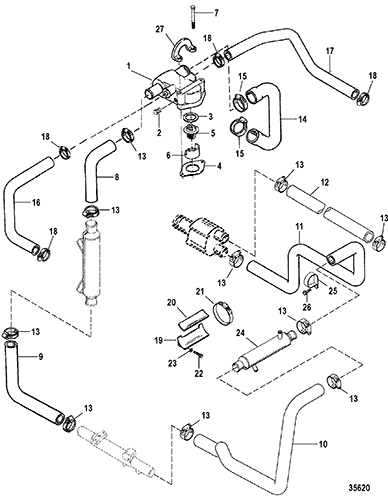

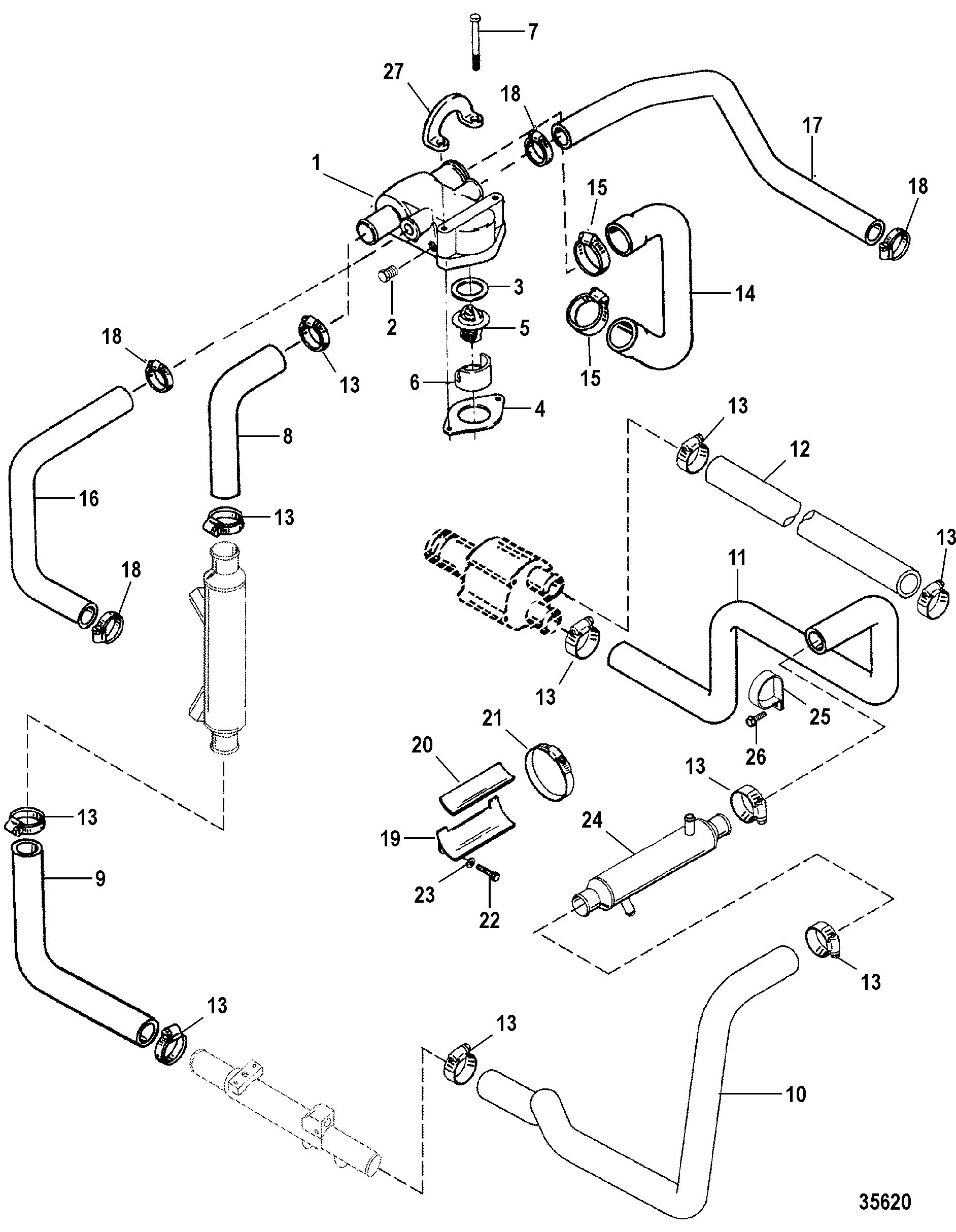

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0061381



HOUSING ASSEMBLY, Thermostat 1 861006A1
2 22-32803

700-21894
PLUG, Pipe (.375-18) Brass 2

3 27-806871

700-32700
GASKET 1   4
4 27-530451



GASKET 1
4
5 807252T2
676-9-43002 700-13100
THERMOSTAT, 71°C (160°F) 1
6 23-806922



SLEEVE 1
7 10-35787



SCREW, (.375-16 x 2.250) 2
8 32-8074073



HOSE 1 32-8074072
9 32-807989



HOSE 1   No longer made, limited availability
10 32-808045
676-9-44094

HOSE, Fuel Cooler to Transmission Oil Cooler 1
11 32-808044



HOSE, Molded 1
12 32-865672079



HOSE, (96.00 Inches Bulk) (38 IN.) 1 32-1743579
13 54-815504222



CLAMP, Worm Gear (1.98 DIameter) 10
14 32-861183



HOSE 1   1
15 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 2
16 32-897491



HOSE 1
17 32-861318



HOSE 1
18 54-815504216



CLAMP, Worm Gear (1.56 Diameter) 4
19 805546A2



BRACKET, Oil Cooler 1
20 772233



PAD 1
21 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 1
22 10-816585



SCREW, (.375-18 x .875) 1   Metal Cooler
22 8M2016106



SCREW, (.312 x 1.25) 1   Composite Cooler (Included with 861554T02)
23 12-20572



WASHER, (.390 x .750 x .093) 1
24861554T01



COOLER 1 861554T
25 54-47715



CLIP 1
26 10-35765A1



SCREW AND LOCKWASHER, (.312-18 x .625) 1
27 12552

700-13237
LIFTING EYE 1
NS 19-8079923



COVER, Hose Clamp End AR
- 27-802567A98



GASKET SET, Engine Overhaul 1
