7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Starter Motor (PG260)

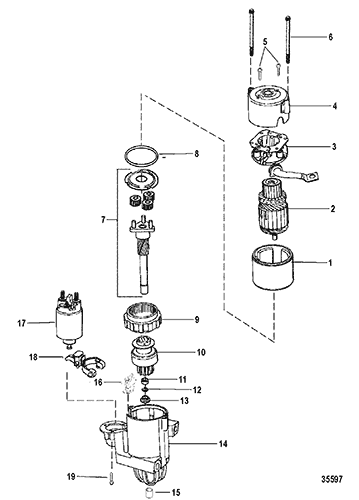

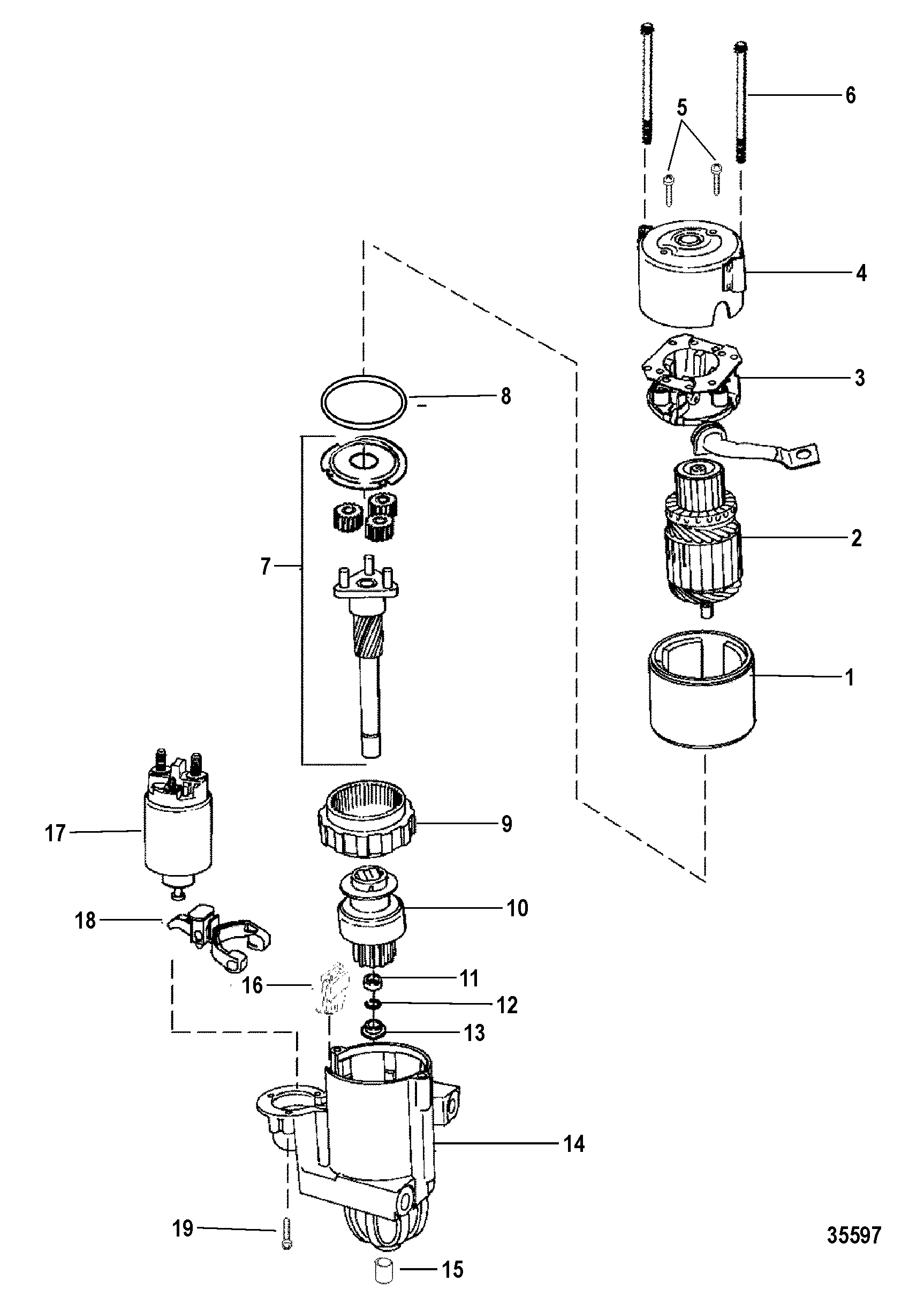

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Bracket And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold And Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Standard Cooling System
- Starter Motor (PG260)
- Throttle Body And Linkage
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 50-863007A1 | 676-9-15907 | 602-10099MD or | 620-5399M | STARTER MOTOR ASSEMBLY | 1 | 50-806964A4 | |||
| 2 | NSS | NOT SOLD SEPARATE, ARMATURE | 1 | This Part is not sold separately 2 | ||||||
| 3 | NSS | NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING | 1 | This Part is not sold separately 2 | ||||||
| 4 | NSS | NOT SOLD SEPARATE, FRAME | 1 | This Part is not sold separately2 | ||||||
| 5 | NSS | NOT SOLD SEPARATE, SCREW | 2 | This Part is not sold separately 2 | ||||||
| 6 | NSS | NOT SOLD SEPARATE, BOLT, THRU | 2 | This Part is not sold separately 2 | ||||||
| 7 | NSS | NOT SOLD SEPARATE, SHAFT AND GEAR | 1 | This Part is not sold separately 2 | ||||||
| 8 | NSS | NOT SOLD SEPARATE, GASKET | 1 | This Part is not sold separately 2 | ||||||
| 9 | NSS | NOT SOLD SEPARATE, GEAR | 1 | This Part is not sold separately 2 | ||||||
| 10 | NSS | NOT SOLD SEPARATE, DRIV | 1 | This Part is not sold separately 2 | ||||||
| 11 | 33291 | COLLAR | 1 | |||||||
| 12 | 53-33290 | RING, Retaining | 1 | |||||||
| 13 | NSS | NOT SOLD SEPARATE, COLLAR, THRUST | 1 | This Part is not sold separately 2 | ||||||
| 14 | 809459 | HOUSING | 1 | This Part is NLA from Mercruiser | ||||||
| 15 | 23-814476 | BUSHING | 1 | This Part is NLA from Mercruiser | ||||||
| 16 | NSS | NOT SOLD SEPARATE, GROMMET | 1 | This Part is not sold separately 2 | ||||||
| 17 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID KIT | 1 | |||||
| 18 | NSS | NOT SOLD SEPARATE, LEVER | 1 | This Part is not sold separately 2 | ||||||
| 19 | NSS | NOT SOLD SEPARATE, SCREW | 3 | This Part is not sold separately 2 |
