7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Cylinder Head And Rocker Cover

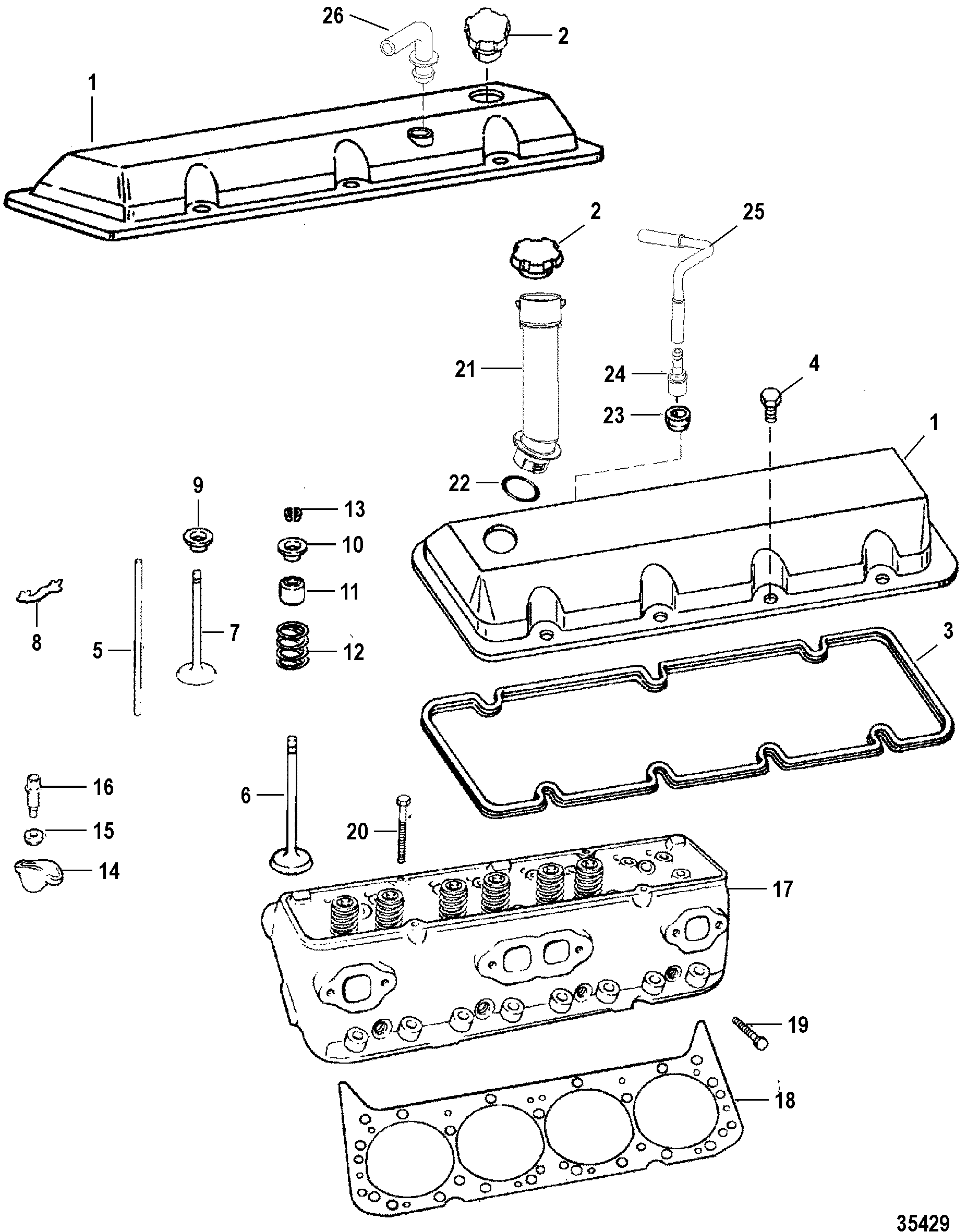

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 802565



COVER, Rocker 2
2 845753T1



CAP 2 36-802566T
3 27-811588
676-9-61315

GASKET, Rocker Cover 2   4
4 10-811589



BOLT, (1/4-20 x 0.875) (1/4-20 X 5/8 IN.) 14

5 852003



PUSH ROD 8    (INTAKE)
5 852004



PUSH ROD 8    (EXHAUST)
6 814506



VALVE, Exhaust 8    (STANDARD)
6 814507001



VALVE, Exhaust AR 814507  (.015 O.S.) 3
7 49134



VALVE, Intake 8    (STANDARD)
8 845707



GUIDE 8
9 850464



CAP 8
10 850463



ROTATOR 8
11 26-811545
676-9-61651

SEAL, Valve 16    4
12 24-850465T



SPRING, Valve 16
13 28-54530



KEY 32
14 850471



ARM, Rocker 16
15 850472



BALL, Rocker Arm 16
16 10-811593



BOLT, Rocker Arm 16
17 938-802743



CYLINDER HEAD ASSEMBLY 2    1
18 879150141



GASKET, Cylinder Head 2 27-850470  4
19 10-8M0000463



BOLT, (2.00 Inch) 8 10-49106
20 10-8M0000482



SCREW, (.438-14 x 4.060) 24 10-845705
21 36-861124



TUBE, Oil Fill 1
22 25-29439

700-81230
O-RING 1
23 25-811553



GROMMET 1
24 802748



VALVE, PCV 1    1
25 32-802749



TUBE, PVC 1    This Part is NLA from Mercruiser. 1
26 22-802750



ELBOW, Breather 1    This Part is NLA from Mercruiser. 1
- 27-802567A98



GASKET SET, Engine Overhaul 1
