| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

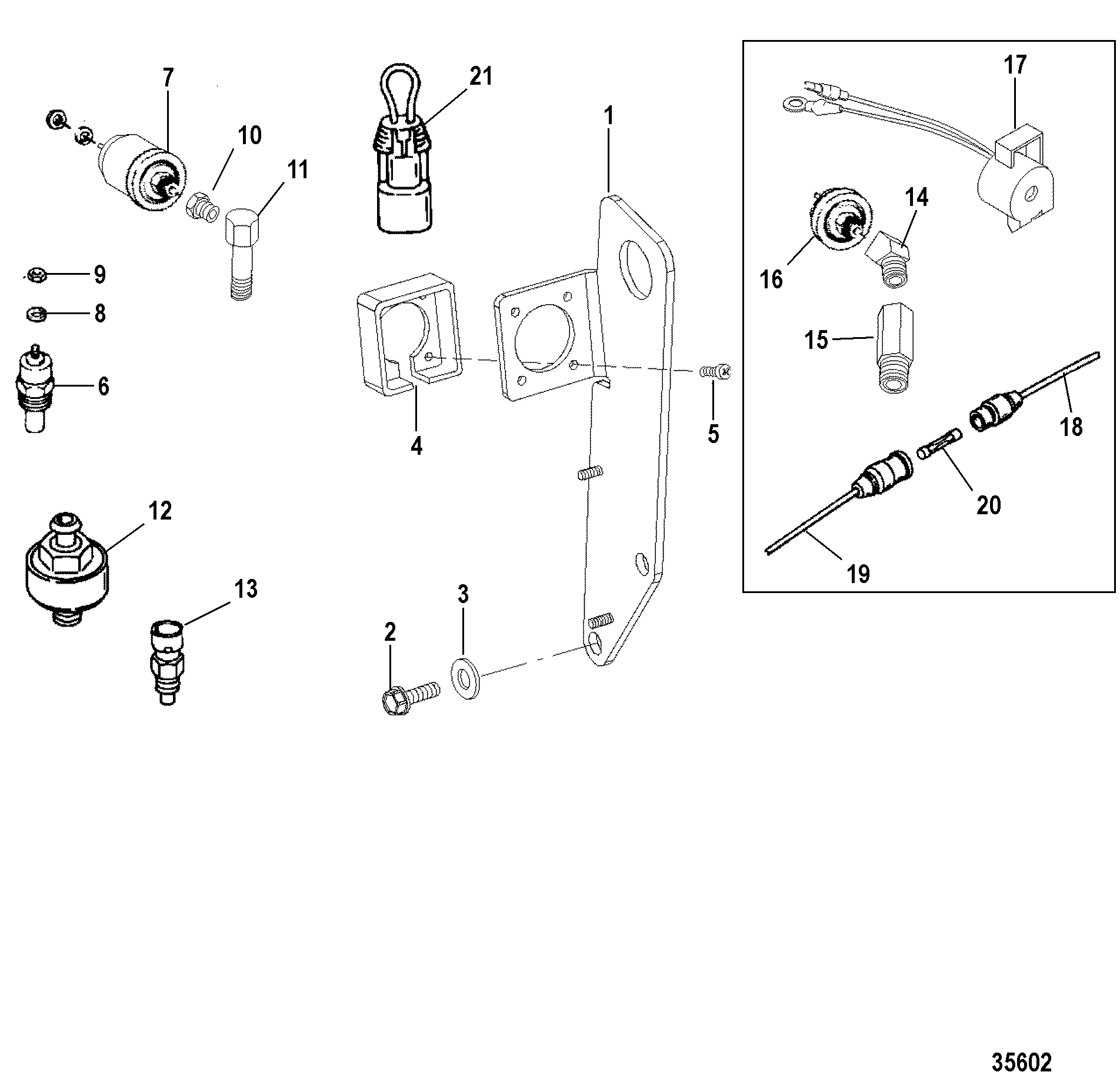

| 1 |
861176T |
|
|
|
|
BRACKET/LIFTING EYE (REAR) |
1 |
|
This Part is NLA from Mercruiser |
| 2 |
10-47461 |
|
|
|
|
SCREW, (.437-14 x 1.00) |
2 |
|
|
| 3 |
12-22248 |
|
|
|
|
WASHER, (.453 x .875 x .060) |
2 |
|
|
| 4 |
26079A2 |
|
|
|
|
PLATE KIT, Wire Harness Mount |
1 |
|
|
| 5 |
10-15001 |
|
|
|
|
SCREW, (#8-16 x .875) |
4 |
|
|
| 6 |
806490T |
|
676-9-42400 |
|
|
SENDER ASSEMBLY, Water Temperature |
1 |
97257A1 |
|
| 6 |
49734 |
|
|
|
|
SENDER |
OPT |
|
(DUAL STATION) 5 |
| 7 |
8M0068784 |
|
|
|
|
SENDER ASSEMBLY |
1 |
87-815425T |
|
| 7 |
37293T |
|
|
|
|
SENDER ASSEMBLY |
OPT |
|
(DUAL STATION) 5 |
| 8 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 9 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 10 |
22-64013 |
|
|
|
|
FITTING, (.375 Male To .125 Female) |
1 |
|
|
| 11 |
22-8053281 |
|
|
|
|
FITTING, Elbow (90 Degree - .125) |
1 |
|
|
| 12 |
805544T |
|
676-9-33500 |
|
|
SENSOR ASSEMBLY |
1 |
|
|
| 13 |
805218T |
|
676-9-42402 |
|
|
SENSOR |
1 |
|
|
| 14 |
22-29085 |
|
|
|
|
FITTING, Elbow (45 Degree) |
1 |
|
|
| 15 |
22-805059 |
|
|
|
|
FITTING |
1 |
|
|
| 16 |
87-805605A1 |
|
|
|
|
SWITCH ASSEMBLY |
1 |
|
|
| 17 |
816492A6 |
|
|
|
|
ALARM KIT |
1 |
|
|
| 18 |
84-95084A9 |
|
|
|
|
CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (MALE) |
1 |
|
|
| 19 |
84-95084A10 |
|
|
|
|
CABLE ASSEMBLY, (5.00 Inches) Red (FEMALE) |
1 |
|
|
| 20 |
88-79091 |
|
|
|
|
FUSE, 20 Ampere |
1 |
|
|
| 21 |
805592A1 |
|
|
|
|
CONNECTOR ASSEMBLY |
1 |
|
(WHITE WIRE) 1 |
| 21 |
830796A1 |
|
|
|
|
CONNECTOR ASSEMBLY |
1 |
|
(BLACK WIRE) 1 |
