7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Closed Cooling System

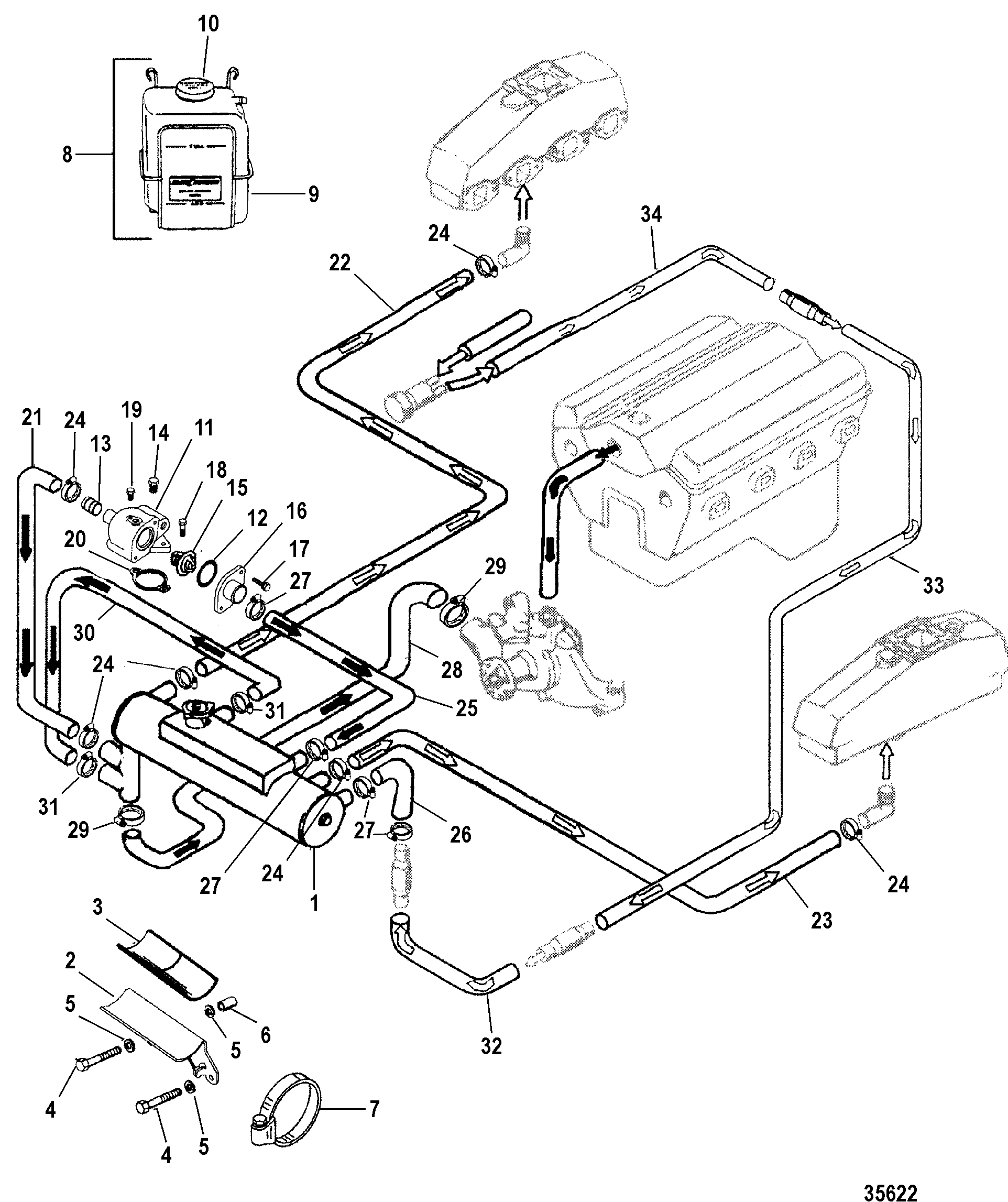

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # SEI # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807400A1


542-807400A1 HEAT EXCHANGER 1
NS 8M0036623



COVER, Heat Exchanger End 2  814875
NS 8M0036987



GASKET 2 27-803644
NS 10-814877



BOLT 2

NS 8M0039163



O-RING, Special 2 25-814878
NS 36-8148791



CAP 1
2 860092A1



BRACKET ASSEMBLY, Heat Exchanger 1
3 18431



PAD 2
4 10-91903



SCREW, (.437-14 x 1.750) 1
4 10-47462



SCREW, (.437-14 x 1.250) 1
5 12-31263



WASHER 4
6 23-905201



SPACER, (.750 x .250) 2
7 54-815504388



CLAMP, Worm Gear 2
8 71587A10



RECOVERY KIT, Coolant 1    SOLD COMPLETE
- 32-774572



HOSE, (48.00 Inches Bulk) 1
9 71587A11



BOTTLE, Plastic 1
10 72058



CAP 1
11 861188A1
676-9-42501 700-13540
HOUSING ASSEMBLY, Thermostat 1
12 25-8071341



SEAL 1
13 23-863874



SLEEVE, Water 1
14 22-32803

700-21894
PLUG, Pipe (.375-18) Brass 1
15 991551



THERMOSTAT 1
16 807075A1



COVER 1
17 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) 2
18 10-98794 602-98-102-35 676-9-78129 700-28300
SCREW, (.375-16 x 1.00) 2
19 22-328022



PLUG, Pipe (.125-27) Brass 1
20 27-530451



GASKET 1    4
21 32-807692



HOSE, Thermostat By Pass 1
22 32-861306



HOSE 1
23 32-807141



HOSE 1
24 54-815504216



CLAMP, Worm Gear (1.56 Diameter) 6
25 32-807691



HOSE 1
26 32-807406



HOSE 1
27 54-815504222



CLAMP, Worm Gear (1.98 DIameter) 4
28 32-805138



HOSE 1   No longer made, limited availability
29 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 2
30 32-99520



HOSE 1
31 54-815504212



CLAMP, Worm Gear 2
32 32-807989



HOSE 1   No longer made, limited availability
33 32-808045
676-9-44094

HOSE, Fuel Cooler to Transmission Oil Cooler 1
34 32-808044



HOSE, Molded 1
NS 19-8079923



COVER, Hose Clamp End AR    3
- 27-802567A98



GASKET SET, Engine Overhaul 1
