7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Intake Manifold And Intake Plenum

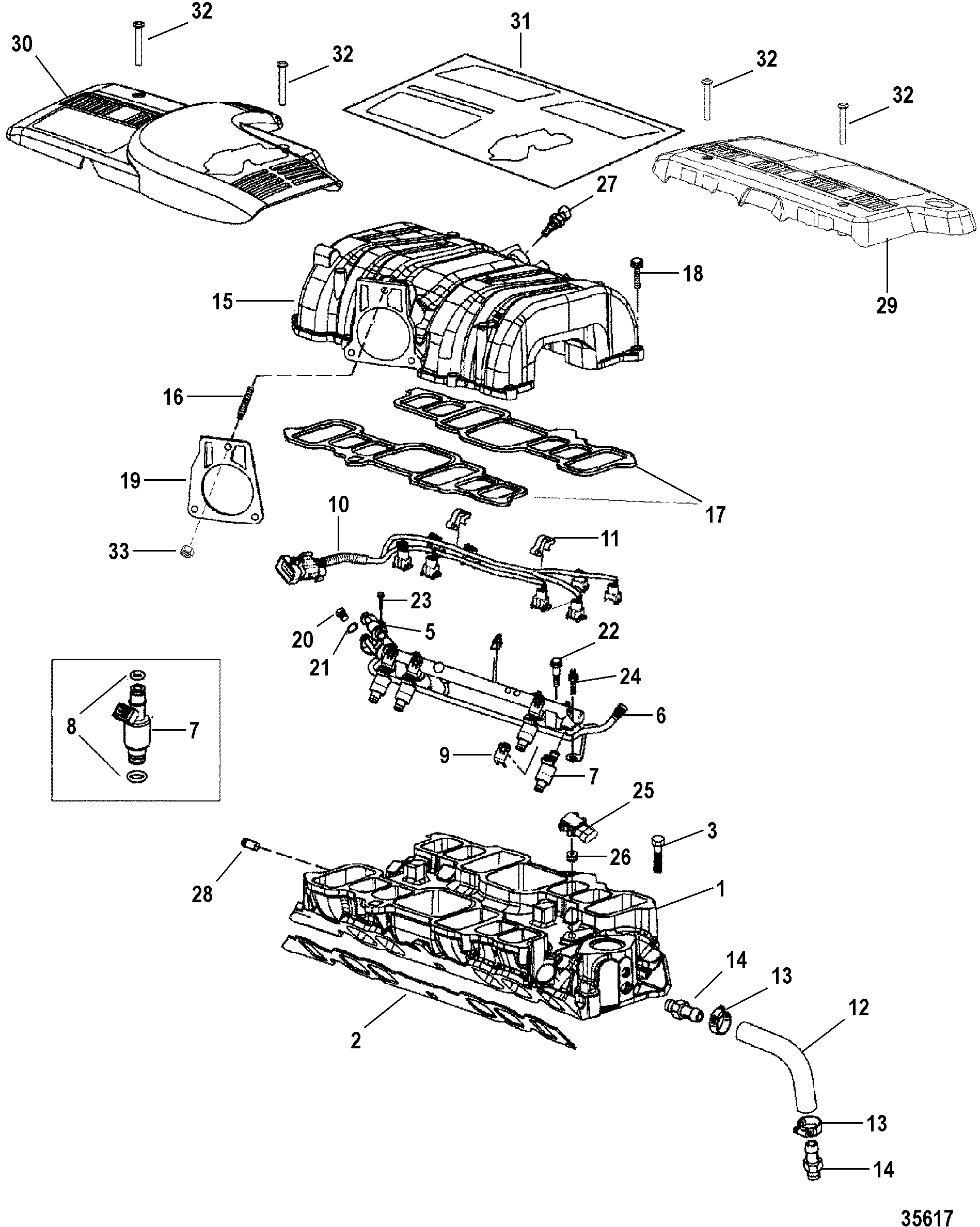

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 802552T



MANIFOLD ASSEMBLY, Intake 1    This Part is NLA from Mercruiser
2 27-803184



GASKET SET 1
4
3 10-802655



SCREW 12
4 802629



FUEL RAIL ASSEMBLY 1

5 8M0069803



REGULATOR, Fuel Pressure 1 802630T
NS 25-802636



SEAL KIT, Pressure Regulator 1
6 22-802631



VALVE AND CAP KIT 1
7 802632T
676-9-33104

INJECTOR, Fuel 8
8 25-802633



O-RING KIT 1
9 54-802634



CLIP KIT, Injector 1
10 84-802635



HARNESS ASSEMBLY, Fuel Injector 1
11 54-802637



CLIP 2     This Part is NLA from Mercruiser
12 32-8059871



HOSE, Water Pump To Intake Manifold 1
13 54-815504212



CLAMP, Worm Gear 2
14 22-806242



CONNECTOR 2
15 802551



PLENUM, Intake 1
16 16-802561



STUD 3
17 27-802657



GASKET SET 1
18 10-802656



SCREW 8
19 27-807672



GASKET, TBU Relocator Tube 1    4
20 22-861041



PLUG, Fuel Rail 1
21 25-861397



O-RING 1    4
22 10-802659



SCREW 2
23 10-14070

10-14070br />
10-14070 2
24 16-802658



STUD 1      This Part is NLA from Mercruiser
25 861249A1
676-9-33600

SENSOR ASSEMBLY, Manifold Air Pressure 1
26 26-805412



SEAL 1    4
27 805223T
676-9-42406

SENSOR 1
28 NSS



NOT SOLD SEPARATE, FITTING, BARBED (TO FUEL PRESSURE REGULATORS) 1   This Part is not sold separately
29 861122



COVER, Port 1
30 861123A54



COVER ASSEMBLY, Starboard 1
31 879150A81



DECAL SET 1 37-861314A3
32 10-805390



SCREW, (.312-18 x 2.250) 4
33 11-802751



NUT 3    1
- 27-802567A98



GASKET SET, Engine Overhaul 1
