7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Alternator and Bracket (Delco)

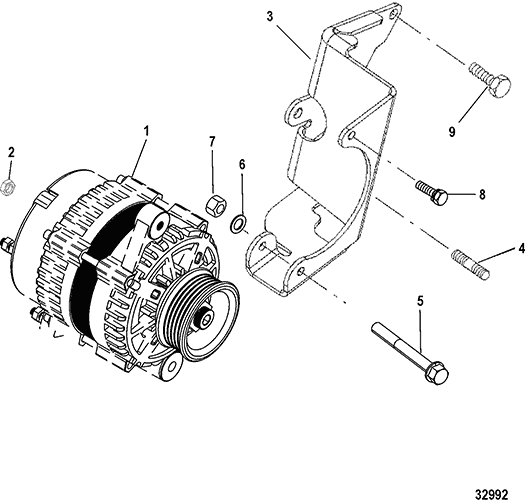

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 862031T1



ALTERNATOR ASSEMBLY (65 Amp) 1 862031T  (Non Serviceable - Replace Complete Assembly)
2 11-400212



NUT, (M6) Stainless Steel 1

3 862050T



BRACKET, Alternator 1
4 16-806591



STUD, (7/16-14), Alternator & Seawater Pump Bracket 1

5 10-31984



SCREW, (.312-18 x 1.375) 2
6 12-20084

700-21664
WASHER, (.328 x .562 x .062) 1
7 11-21908



NUT, (.312-18) Cad Plated 1
8 10-40001134



SCREW, (M8 x 25) 1
9 10-17965



SCREW, (.437-14 x .70) 2
NS 84-862078T1



HARNESS ASSEMBLY, Engine Wiring 1
