7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Exhaust System

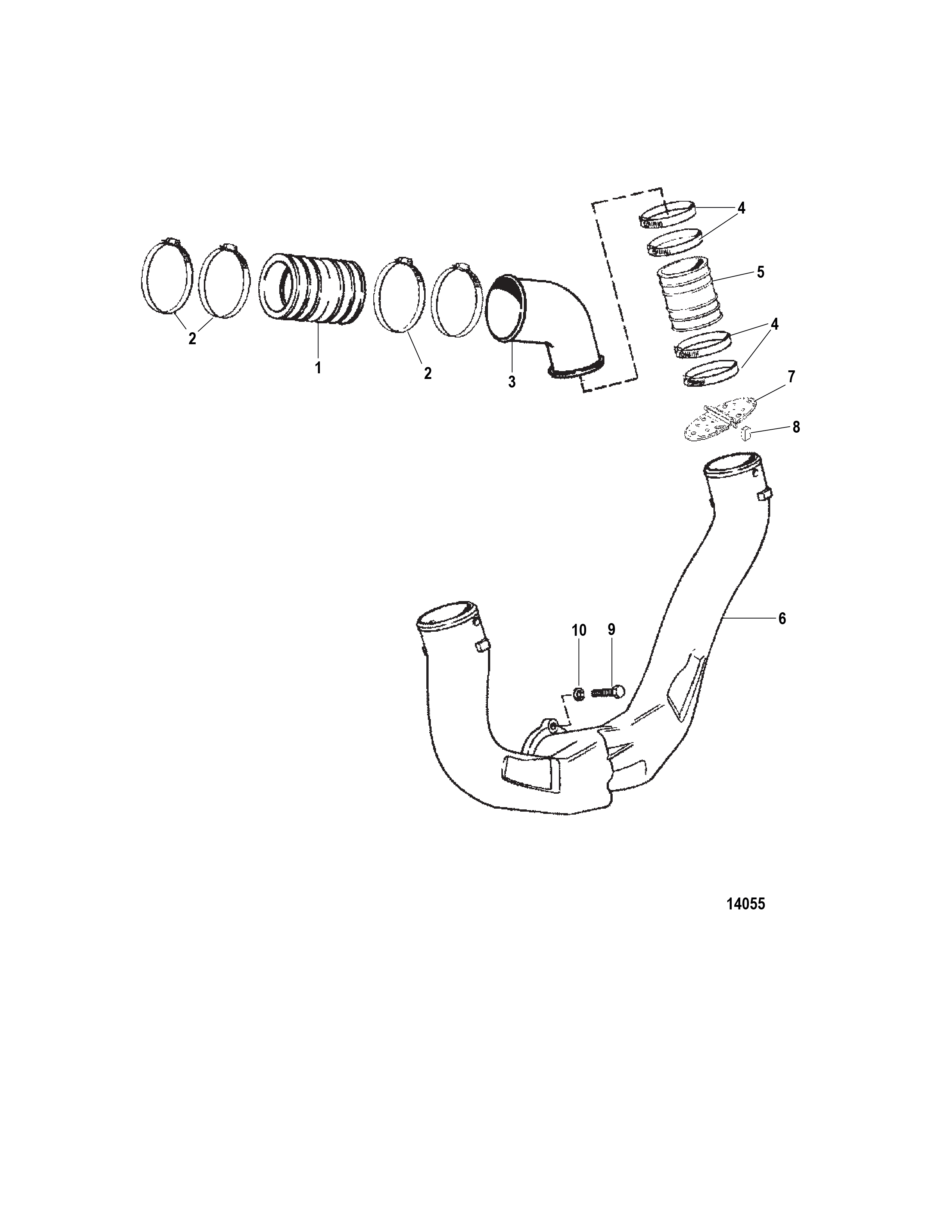

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Bracket And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold And Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Standard Cooling System
- Starter Motor (PG260)
- Throttle Body And Linkage
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | 44348T | TUBE Exhaust | 2 | ||
| 2 | 0054 | OEM: 525-54-815504272 | CLAMP Worm Gear | 8 | ||
| 3 | 0000 | 14478T | ELBOW Exhaust | 2 | ||
| 3 | 0000 | 14865A1 | ELBOW KIT Exhaust | (USE WITH 3 IN. & 6 IN. RISER KITS) | 1 | |
| 4 | 0054 | OEM: 525-54-815504272 | CLAMP Worm Gear | 8 | ||
| 5 | 0032 | 14358T | TUBE | 2 | ||
| 6 | 0000 | 807130A4 | PIPE | 1 | ||
| 7 | 0000 | OEM: 530-807166A1 | SHUTTER ASSEMBLY Water | 2 | ||
| 8 | 0025 | OEM: 525-25-807167 | GROMMET | 4 | ||
| 9 | 0010 | OEM: 525-10-58640 | SCREW (.375-16 x 1.25) | 4 | ||
| 10 | 0013 | OEM: 525-13-41471 | LOCKWASHER (.375) | 4 | ||
| NS | 0019 | 8079923 | COVER Hose Clamp End | AR |
