7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Oil Pan and Oil Pump

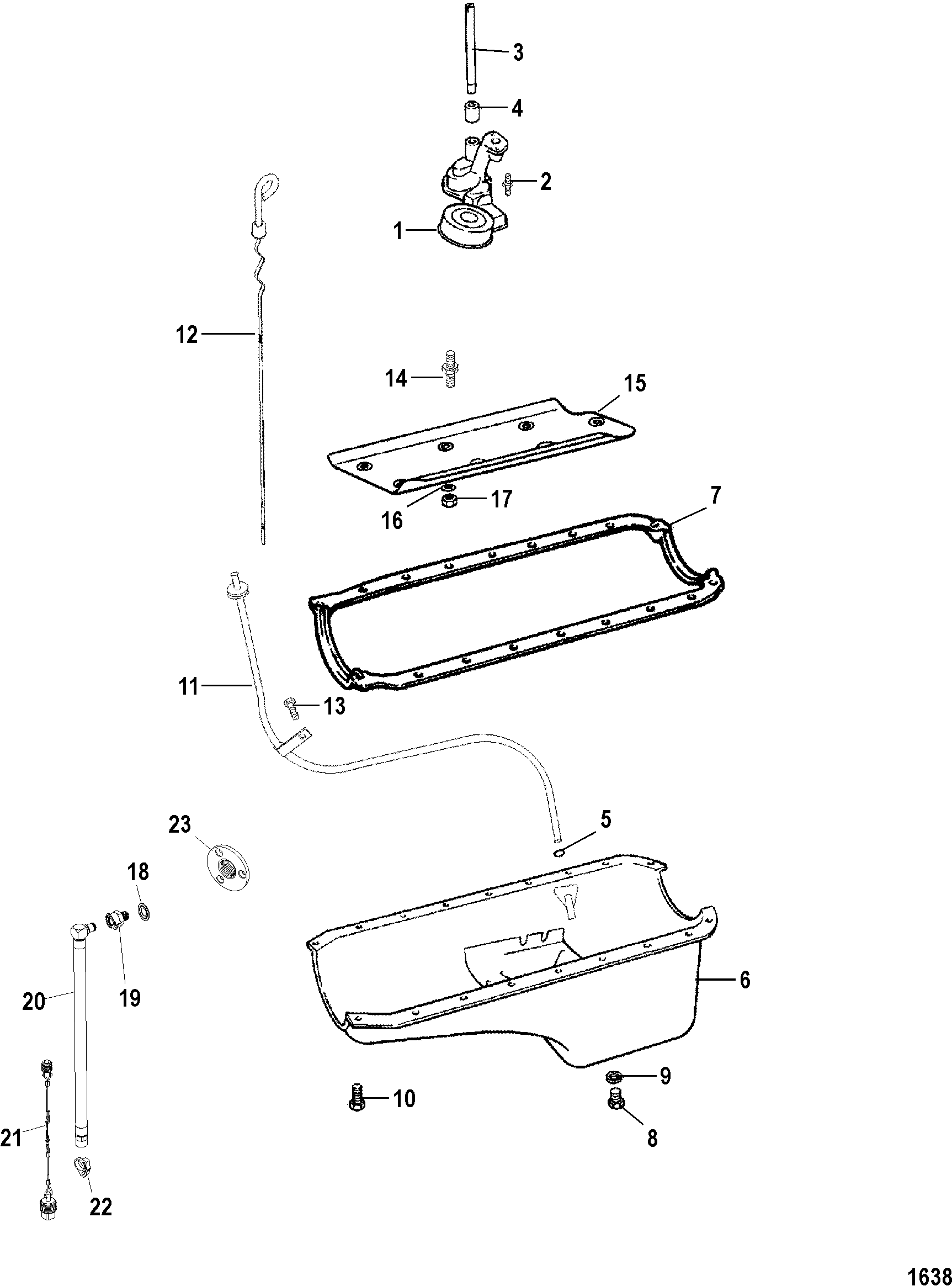

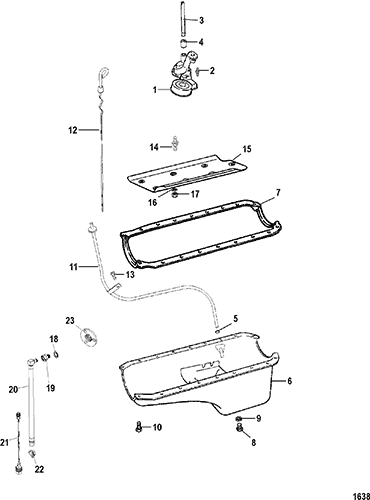

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 827643



PUMP ASSEMBLY, Oil 1
2 16-845599



STUD 1 16-49108
3 14761



SHAFT AND RETAINER 1
4 23-36183



RETAINER 1

5 25-62704
676-9-43631 700-81090
O-RING, (.362 x .103) 1   4
6 845668T



PAN ASSEMBLY, Oil 1
7 27-845628
676-9-61508

GASKET 1 27-811566 4
8 10-809911001



SCREW, Oil Drain (M12 x 1.75) 1 10-809911
9 27-49955
676-9-60104 700-30370
GASKET, Drain 1   4
10 10-808707



SCREW, (.312-18 x .625) 20
11 818631A6



TUBE ASSEMBLY, Dipstick 1   (Use W/Mando Alternator)
11 818631A11



TUBE ASSEMBLY, Dipstick 1   1
12 861942T9



DIPSTICK, Oil Level 1
13 10-35366



SCREW, (.250-20 x .563) 1
14 16-811683



STUD, (.375-16/.500-12 x 5.500) 4
15 843945T



BAFFLE 1 811682
16 12-49112



WASHER 5    This Part is NLA from Mercruiser
17 11-845602



NUT, (.375-16) 5 11-850091
18 27-49955
676-9-60104 700-30370
GASKET, Drain 1
19 22-862811



FITTING, Quick Connect (Female) 1   no longer made, limited availability
20 32-805505A4



HOSE, Oil Drain 1     This Part is NLA from Mercruiser
21 862827



TETHER ASSEMBLY 1
22 54-805524



CLIP 1
23 862777



FLANGE, Drain 1
- 27-802567A98



GASKET SET, Engine Overhaul 1
