| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

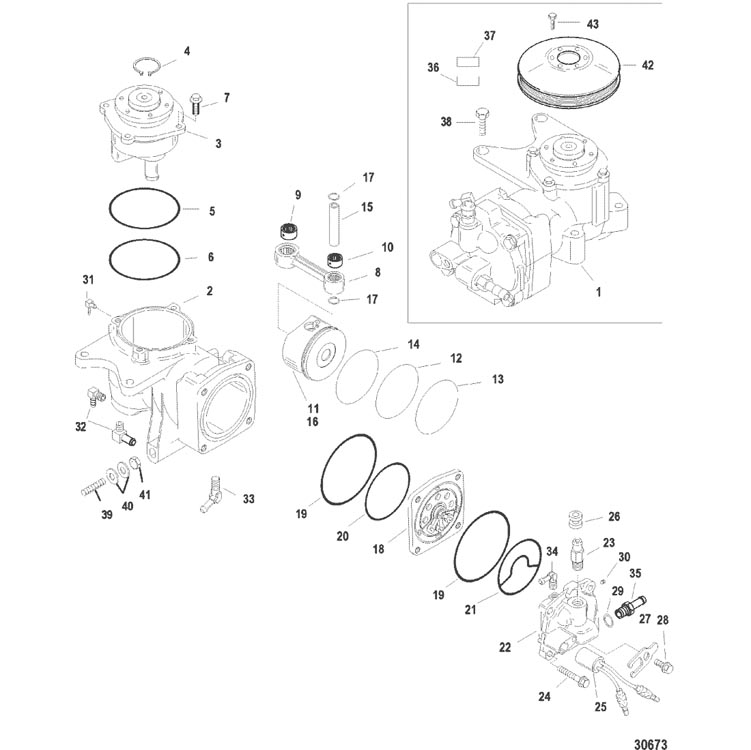

| 1 |
8M0060053 |
|
|
|
|
COMPRESSOR KIT, Air (w/o PULLEY) |
1 |
831998A21 |
|
| 2 |
NSS |
|
|
|
|
BODY |
1 |
|
Not Sold Separate |
| 3 |
1173-8M0050792 |
|
|
|
|
END CAP ASSEMBLY |
1 |
828131A5 |
No Longer Available |
| 4 |
NSS |
|
|
|
|
RETAINING RING |
1 |
|
Not Sold Separate |
| 5 |
25-89224 |
|
|
|
|
O-RING |
1 |
|
|
| 6 |
25-832804 |
|
|
|
|
O-RING, (2.739 x .070) |
1 |
|
|
| 7 |
10-82130020 |
|
|
|
|
SCREW, (M6 x 20) |
4 |
|
|
| 8 |
653-833146T06 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
1 |
833146T3 |
|
| 9 |
NSS |
|
|
|
|
BEARING |
1 |
|
Not Sold Separate |
| 10 |
NSS |
|
|
|
|
BEARING |
1 |
|
Not Sold Separate |
| 11 |
NSS |
|
|
|
|
PISTON ASSEMBLY (w/RINGS AND PIN) |
1 |
|
Not Sold Separate |
| 12 |
NSS |
|
|
|
|
OIL SCRAPER RING |
1 |
|
Not Sold Separate |
| 13 |
NSS |
|
|
|
|
TOP RING |
1 |
|
Not Sold Separate |
| 14 |
NSS |
|
|
|
|
OIL RING |
1 |
|
Not Sold Separate |
| 15 |
NSS |
|
|
|
|
WRIST PIN |
1 |
|
Not Sold Separate |
| 16 |
NSS |
|
|
|
|
PISTON WITH WRIST PIN |
1 |
|
Not Sold Separate |
| 17 |
53-8348101 |
|
|
|
|
RING, Lock |
2 |
|
|
| 18 |
835088A10 |
|
|
|
|
REED PLATE ASSEMBLY |
1 |
|
|
| 19 |
25-67207 |
|
|
|
|
O-RING, (3.489 x .070) |
2 |
|
|
| 20 |
25-832804 |
|
|
|
|
O-RING, (2.739 x .070) |
1 |
|
|
| 21 |
26-828225 |
|
|
|
|
SEAL |
1 |
|
|
| 22 |
835087A3 |
|
|
|
|
HEAD ASSEMBLY, Compressor |
1 |
|
|
| 23 |
22-8307534 |
|
|
|
|
FITTING, (1.62 Inches) |
1 |
|
|
| 24 |
10-82446035 |
|
|
|
|
SCREW, (M8 x 35 MM) |
4 |
|
|
| 25 |
13536A14 |
|
|
|
|
SENSOR ASSEMBLY, Temperature |
1 |
|
|
| 26 |
25-855349002 |
|
|
|
|
GROMMET |
1 |
855349 |
|
| 27 |
137151 |
|
|
|
|
RETAINER |
1 |
|
|
| 28 |
10-81893412 |
|
|
|
|
SCREW, (M8 x 12) |
1 |
|
|
| 29 |
25-831985 |
|
|
|
|
O-RING, (.468 x .078) |
1 |
|
|
| 30 |
22-390721 |
|
|
|
|
PLUG, Pipe (.125-27) Brass |
1 |
|
|
| 31 |
22-151331 |
|
|
|
|
FITTING |
1 |
|
|
| 32 |
21-428641 |
|
|
|
|
FITTING, Check Valve |
2 |
|
|
| 33 |
22-851975 |
|
|
|
|
FITTING, Elbow - 45 Degree - Brass (.125-27) |
1 |
|
|
| 34 |
22-14868 |
|
|
|
|
FITTING |
1 |
|
|
| 35 |
22-856744 |
|
|
|
|
FITTING |
1 |
|
|
| 36 |
NSS |
|
|
|
|
DECAL, Assembled in Mexico |
1 |
|
Not Sold Separate |
| 37 |
NSS |
|
|
|
|
DECAL, Assembly Instructions |
1 |
|
Not Sold Separate |
| 38 |
10-4010825 |
|
|
|
|
SCREW, (M10 x 25) Hex Flange - Stainless Steel |
2 |
|
|
| 39 |
16-858762001 |
|
|
|
|
STUD, (.312-18/.312-24 x 4.190) |
1 |
858762 |
|
| 40 |
12-854640 |
|
|
|
|
WASHER, Special |
2 |
|
|
| 41 |
11-82670911 |
|
|
|
|
NUT, (.312-24) Stainless Steel |
1 |
|
|
| 42 |
8328233 |
|
|
|
|
PULLEY |
1 |
|
|
| 43 |
10-85593912 |
|
|
|
|
SCREW, (M6 x 12) |
5 |
|
|
| - |
25-832804A03 |
|
|
|
|
O-RING KIT |
1 |
832804A1 |
|
