200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Vapor Separator Components

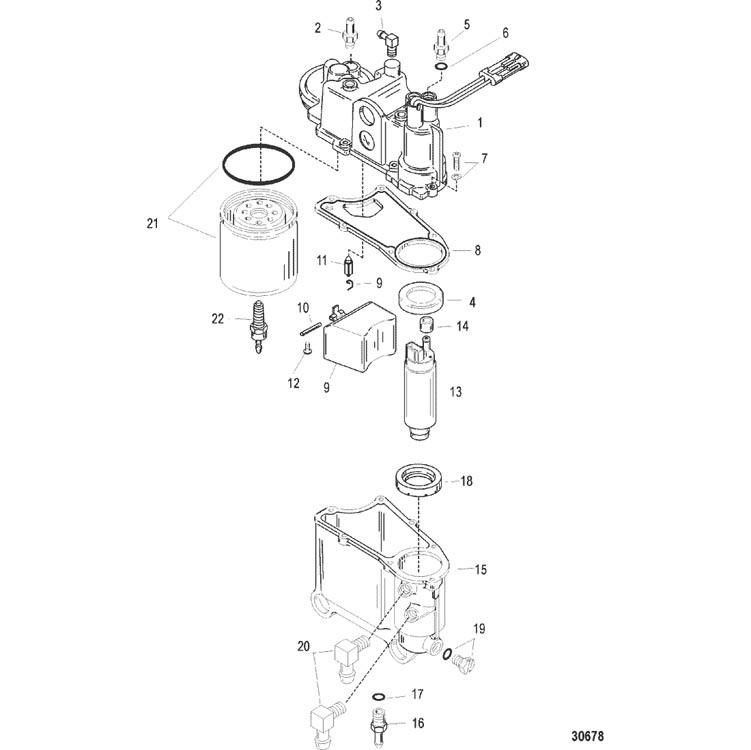

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 855432A1 | COVER KIT | 1 | ||||||
| 2 | 22-8568431 | FITTING, Straight | 1 | ||||||
| 3 | 22-196881 | FITTING, (90 Degree) | 1 | ||||||
| 4 | 26-803878 | SEAL | 1 | ||||||
| 5 | 22-855437A2 | FITTING KIT, Pump Outlet | 1 | ||||||
| 6 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 7 | 1395-808612 | SCREW AND WASHER, (#8-32 x .750) | 7 | ||||||
| 8 | 27-8M6002520 | GASKET | 1 | No Longer Available | |||||
| 9 | 855430A1 | FLOAT KIT | 1 | ||||||
| 10 | F10064 | SHAFT | 1 | ||||||
| 11 | 855431 | VALVE, Needle | 1 | ||||||
| 12 | 1395-5902 | SCREW, (#6-32 x .187) | 1 | No Longer Available | |||||
| 13 | 855427A1 | PUMP KIT | 1 | ||||||
| 14 | 23-8M6000589 | SLEEVE | 1 | 855428 | |||||
| 15 | 855434A2 | BOWL KIT | 1 | ||||||
| 16 | 22-880862A1 | FITTING KIT | 1 | ||||||
| 17 | 25-880863 | O-RING | 1 | ||||||
| 18 | 26-8554331 | SEAL | 1 | ||||||
| 19 | 19-855435A1 | PLUG KIT | 1 | ||||||
| 20 | 22-8554245 | ELBOW | 2 | No Longer Available | |||||
| 21 | 35-18458Q4 | FILTER KIT | 1 | ||||||
| 22 | 8285861 | PROBE | 1 |
