200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)

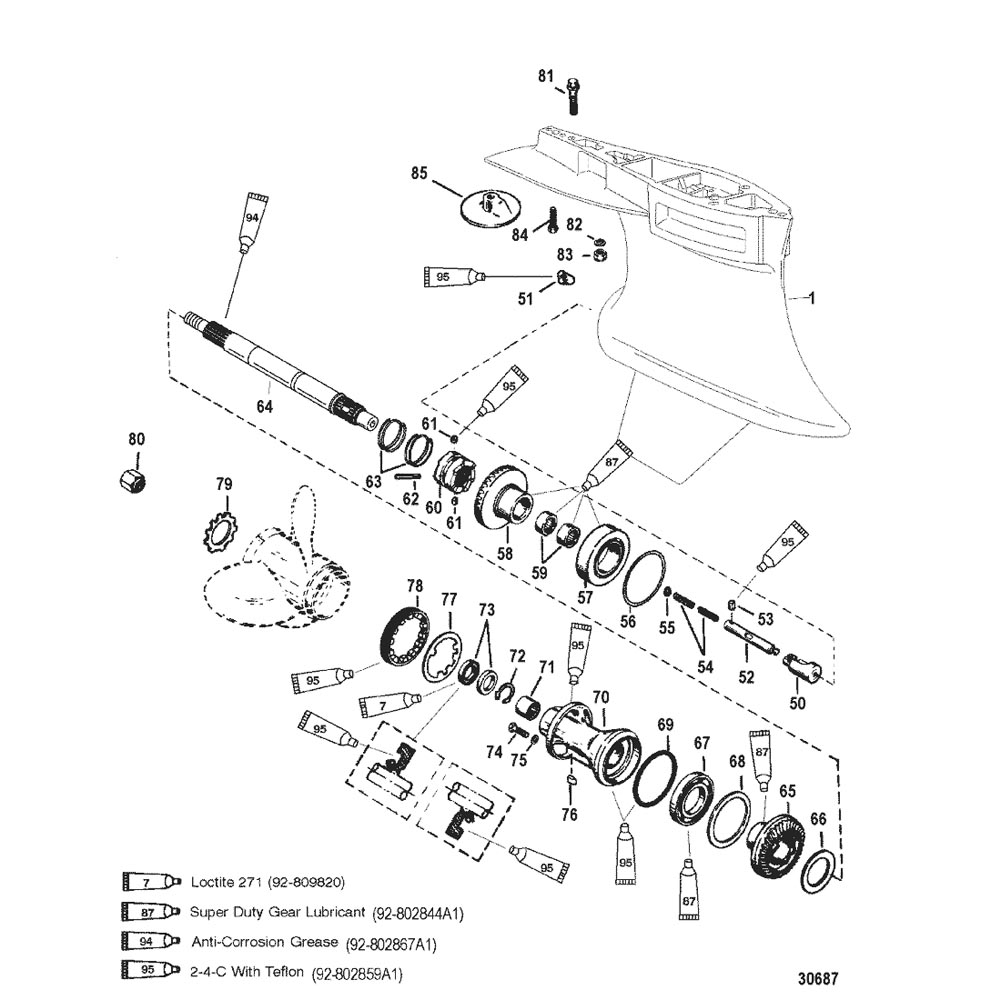

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: THE BASIC GEAR HOUSING LISTED IS GENERIC. IT DOES NOT INCLUDE STUDS.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1687-840560T33         GEAR HOUSING ASSEMBLY, Complete 1
- 1687-840560T34         GEAR HOUSING ASSEMBLY, Complete 1
1 1687-8M0083306         GEAR HOUSING ASSEMBLY, Basic 1 849780A2
50 89594A1         FOLLOWER ASSEMBLY 1
51 789562         SHIFT CAM 1
52 79911A1         ROD 1
53 17-8M0084245         PIN 1 78906
54 24-79910         SPRING 2
55 12-78910         WASHER 2
56 15-47397A1         SHIM SET AR
57 31-78172A1         BEARING ASSEMBLY, Tapered Roller 1
58 43-44104A7         GEAR SET (Includes Pinion) 1
59 31-549281         BEARING, Roller 1
60 52-42672T         RATCHET 1
61 17-78909         PIN, Detent 2
62 17-42671         PIN, Cross 1
63 24-78962         SPRING 2
64 44-840451A03         PROPELLER SHAFT 1 840451A2
- 840389K06         HUB KIT 1 840389K5
- 840382A02         SNUBBER STRIP KIT 1 840382A1
65 43-822824A1         GEAR ASSEMBLY, Reverse 1
66 23-822823         THRUST RING 1
67 30-88957T         BEARING, Ball 1
68 681001         RING, Thrust 1
69 25-31534         O-RING 1
70 848840A1         CARRIER ASSEMBLY, Bearing 1 848840T1
71 31-817072         BEARING, Roller 1
72 53-817071         RING, Snap 2
73 26-815565         SEAL, Oil 2
74 22-8M0058389         FITTING KIT, Magnetic, Plug Fill/Drain 1 67892A1
75 12-191833         WASHER 1 191832
76 28-30281         KEY 1
77 14-79447         TAB WASHER 1
78 8M2011027         RETAINER 1 79448
79 13-423511         LOCKWASHER, Toothed 1
80 11-52707Q1         PROP NUT KIT, (.750-16) 1
81 10-41350         SCREW, (.437-14 x 2.50) Stainless Steel 1
81 10-66024         SCREW, (.437-14 x 1.75) 1
82 12-822836         WASHER, (.445 x .805 x .108) 2
83 11-859116         NUT, (.437-20) 2
84 10-30206         SCREW, (.375-16 x 1.00) Stainless Steel 1
85 76214T3         ANODE 1
85 97-76214Q5         ANODE KIT 1
- 26-89238A3         SEAL KIT, Gear Housing 1
- 56-59579         STUD KIT 1   No Longer Available
