200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Power Trim Components

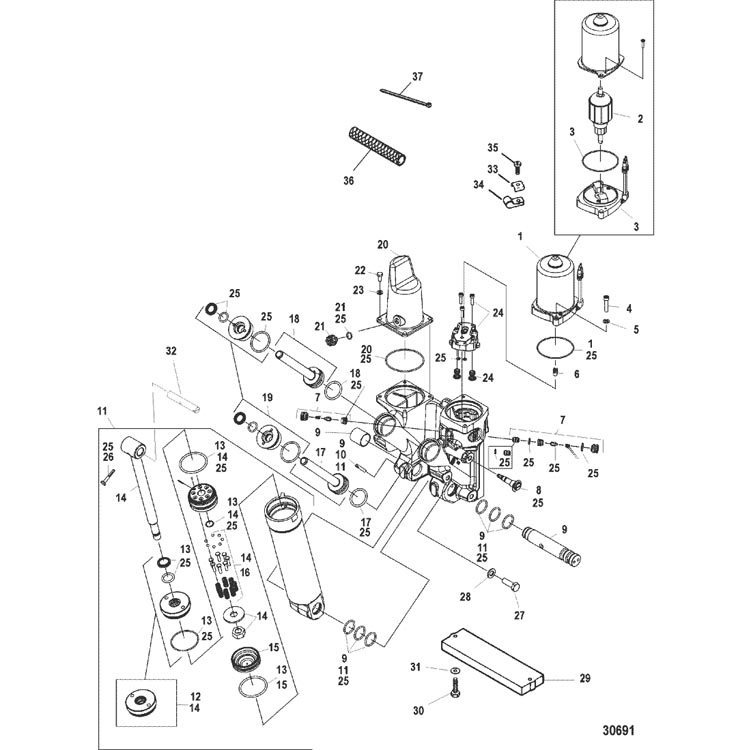

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 855998A11 | POWER TRIM, Complete | 1 | 855998A3 | |||||
| 1 | 8M0031551 | TRIM MOTOR | 1 | No Longer Available | |||||
| 2 | NSS | ARMATURE | 1 | Not Sold Separate | |||||
| 3 | NSS | END FRAME | 1 | Not Sold Separate | |||||
| 4 | 10-82494830 | SCREW, (M6 x 30) | 2 | ||||||
| 5 | 13-400256 | LOCKWASHER, (M6) | 2 | ||||||
| 6 | 8M0090403 | DRIVESHAFT | 1 | 8782451 | |||||
| 7 | 878410A1 | PO CHECK KIT | 1 | ||||||
| 8 | 893929A01 | MANUAL RELEASE ASSEMBLY | 1 | 813442A2 | |||||
| 9 | 878241A03 | SHAFT KIT | 1 | 878241A1 | |||||
| 10 | 17-878267 | PIN | 1 | ||||||
| 11 | 898479A03 | TILT CYLINDER ASSEMBLY | 1 | 878235A1 | |||||
| 12 | 8M0090322 | GUIDE KIT | 1 | 878239A1 | |||||
| 13 | 878409A1 | O-RING KIT | 1 | ||||||
| 14 | 8M0090322 | SHOCK ROD KIT | 1 | 878412A1 | |||||
| 15 | 878242A02 | PISTON ASSEMBLY, Memory | 1 | 878242A1 | |||||
| 16 | 878406A02 | REPAIR KIT, Check Valve | 1 | 878406A1 | |||||
| 17 | 878414T01 | PISTON ASSEMBLY | 1 | 878414A1 | |||||
| 18 | 878413A1 | PISTON ASSEMBLY | 1 | ||||||
| 19 | 8M0021648 | GUIDE ASSEMBLY | 2 | 878243A1 | |||||
| 20 | 878264A1 | RESERVOIR KIT | 1 | ||||||
| 21 | 19-811613 | PLUG ASSEMBLY | 1 | ||||||
| 22 | 10-4000327 | SCREW, (M6 x 14) | 4 | ||||||
| 23 | 12-4002315 | WASHER | 4 | 43450 | |||||
| 24 | 892251A01 | PUMP KIT | 1 | 878411A1 | |||||
| 25 | 878408A1 | REPAIR KIT, Power Trim | 1 | ||||||
| 26 | 17-821539 | PIN, Trilobe | 1 | ||||||
| 27 | 10-858771 | SCREW, (M10 x 30) | 6 | ||||||
| 28 | 12-4002319 | WASHER | 6 | ||||||
| 29 | 97-818298Q1 | ANODE KIT | 1 | ||||||
| 30 | 10-4000330 | SCREW, (M6 x 25) | 2 | ||||||
| 31 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 32 | 99625002 | SHAFT | 1 | 996251 | |||||
| 33 | 8M0084613 | C WASHER | 2 | 69205 | |||||
| 34 | 54-22875 | CLIP | 2 | ||||||
| 35 | 10-878608 | SCREW, (#10-16 x .500) | 2 | ||||||
| 36 | 32-828547353 | CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) | 1 | ||||||
| 37 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 |
