200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Air Handler

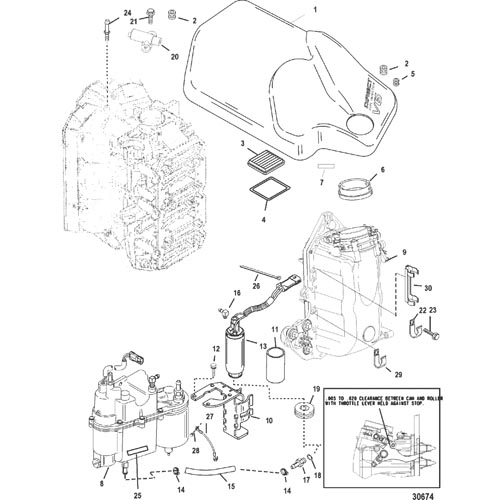

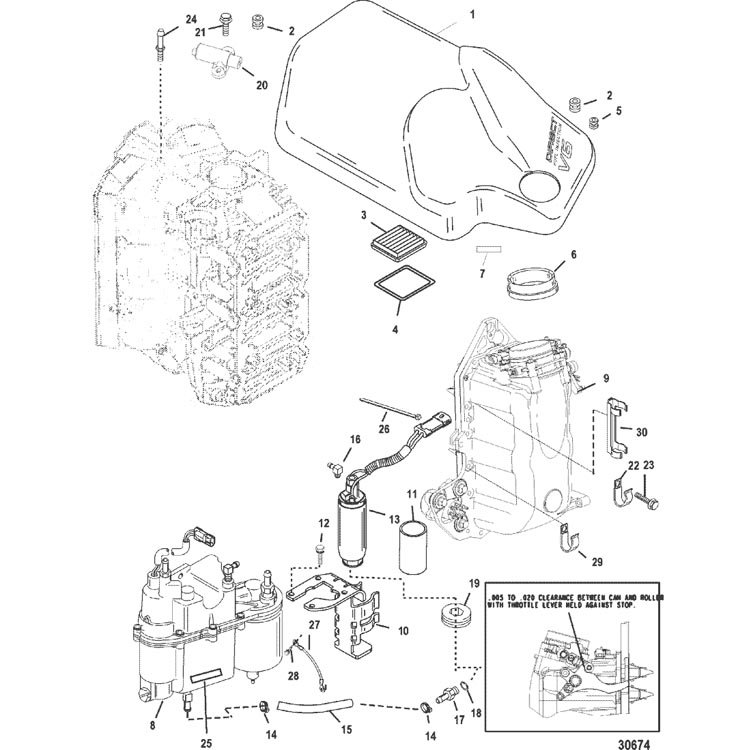

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 827325A10         COVER ASSEMBLY 1 827325T10
2 25-821555001         GROMMET 2 821555
3 35-853333T         FILTER 1
4 853352         COVER 1
5 25-857101         GROMMET 1
6 25-855613         GROMMET 1
7 37-881865         DECAL, Caution, Start in Gear 1 825064
8 NSS         VAPOR SEPARATOR ASSEMBLY 1   Not Sold Separate
9 855633T28         AIR HANDLER ASSEMBLY 1 855633T22
10 855756A1         BRACKET KIT 1   No Longer Available
11 23-803818         SLEEVE 1   No Longer Available
12 10-1993716         SCREW, (M6 x 16) 4
13 8M0047624         PUMP ASSEMBLY 1 8558432
14 54-13791   676-9-35604     CLAMP, (15.7) 4
15 32-856778         HOSE 1   No Longer Available
16 22-855802A1         ELBOW 1
17 22-880862A1         FITTING 1 856812
18 25-805062         O-RING, (.530 x .082) 1
19 25-856928         GROMMET 1   No Longer Available
20 8M0082988         SENSOR 1 8283582
21 10-40011107         SCREW, (M5 x 16) Stainless Steel 2
22 54-883080         J CLIP 2
23 10-817504         SCREW, (.250-20 x 1.500) Stainless Steel 12
24 8215832         PIN, Special (1.5 Inches) 1
25 37-881804A01         DECAL, EPA Label Information 1   No Longer Available
25 37-881804A02         DECAL, EPA Label Information 1   No Longer Available
25 37-881804A03         DECAL, EPA Label Information 1   No Longer Available
26 61990         TIE STRAP, (14.00 Inches) 1
27 84-88807A27         CABLE ASSEMBLY 1   No Longer Available
28 10-82130010         SCREW, (M6 x 10) 1
29 54-633003         CLAMP 1
30 8261151         CLAMP, Connector 1
- 61-883201A01         POWERHEAD ASSEMBLY 1   No Longer Available
