200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Oil Lines

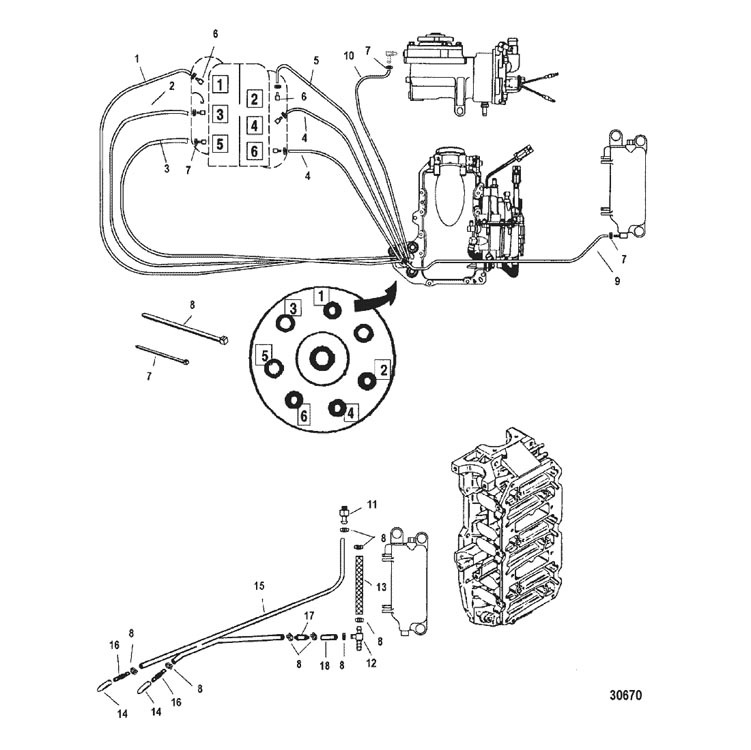

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 24 IN.) | 1 | 85606065 | |||||
| 2 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 18-1/2 IN.) | 1 | 85606065 | |||||
| 3 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 15-1/2 IN.) | 1 | 85606065 | |||||
| 4 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 24-1/2 IN.) | 2 | 85606065 | |||||
| 5 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 27 IN.) | 1 | 85606065 | |||||
| 6 | 21-858805 | CHECK VALVE | 6 | ||||||
| 7 | 69355 | TIE STRAP, (5.50 Inches) | AR | ||||||
| 8 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 9 | 32-82381455 | TUBING, (25.00 Inches Bulk) (Cut to 24 IN.) | 1 | ||||||
| 10 | 32-8M0054213 | TUBING, (40.00 Inches Bulk) (Cut to 32 IN.) | 1 | 32-85583466 | |||||
| 11 | 21-8781051 | CHECK VALVE | 1 | ||||||
| 12 | 22-424254 | FITTING | 1 | ||||||
| 13 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 6 IN.) | 1 | 830756109 | |||||
| 14 | NSS | Cap | 2 | Not Sold Separate | |||||
| 15 | 32-875289 | HOSE | 1 | ||||||
| 16 | 22-858955 | CONNECTOR | 2 | ||||||
| 17 | 35-875284T01 | FILTER, In Line | 1 | 875284 | |||||
| 18 | 32-875283 | HOSE, (2.00 Inches) | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
