200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Cylinder Head

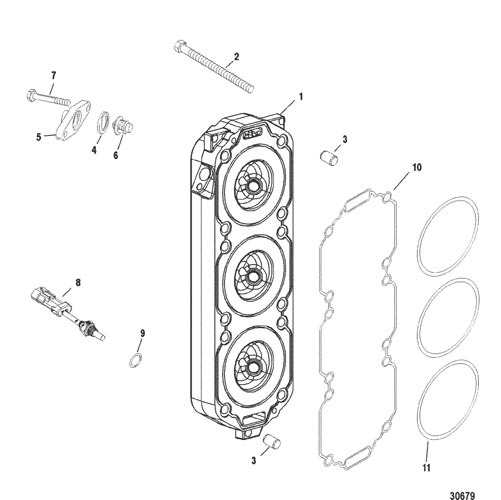

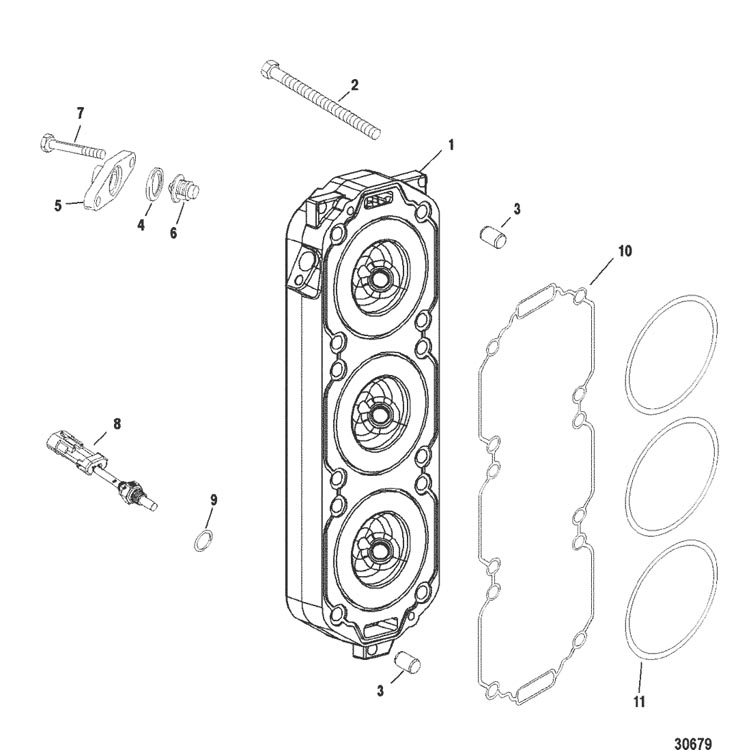

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 840285T1 | CYLINDER HEAD | 1 | ||||||
| 1 | 840286T1 | CYLINDER HEAD | 1 | ||||||
| 2 | 10-878217 | SCREW, (.375-16 x 2.750) | 24 | ||||||
| 3 | 17-63779 | PIN, Dowel (.250 x .625) | 4 | ||||||
| 4 | 27-62386001 | GASKET | 2 | 62386 | |||||
| 5 | 8M0039353 | COVER | 2 | 8307372 | |||||
| 6 | 833072003 | THERMOSTAT, 62° Celsius (143° Fahrenheit) | 2 | 833072 | |||||
| 7 | 10-82130025 | SCREW, (M6 x 25) | 4 | ||||||
| 8 | 889575 | SENSOR ASSEMBLY, Temperature | 2 | 858535 | |||||
| 9 | 25-627021 | O-RING, (.301 x .070) | 2 | ||||||
| 10 | 8584521 | SEAL | 2 | ||||||
| 11 | 8597721 | SEAL | 6 | ||||||
| - | 27-881805A01 | GASKET SET, Engine | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
