200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Water Hoses

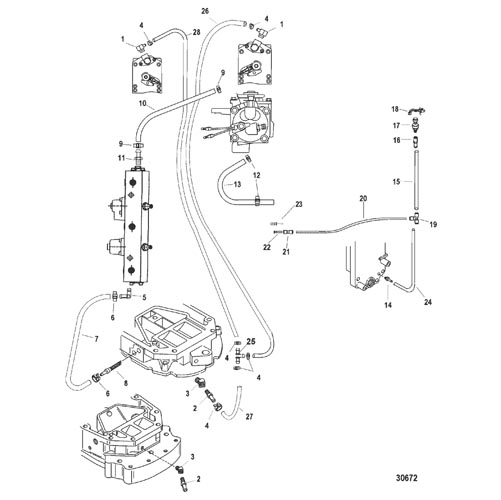

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-687271         FITTING, (.250-18) 90 Degree - Brass 2
2 22-89772         CONNECTOR, (.125-27) 1
3 22-29085         FITTING, Elbow (45 Degree) 1
4 54-816311T         TIE STRAP, (8.00 Inches) 6
5 22-996642         FITTING, Elbow 90 Degree (.125-27 x .250) Nylon 1
6 54-816311T         TIE STRAP, (8.00 Inches) 2
7 32-85833939         TUBING, (15.00 Inches Bulk) (Cut to 7 IN.) 1 85833935
8 35-8348084         STRAINER 1
9 54-816311T         TIE STRAP, (8.00 Inches) 2
10 32-85833939         TUBING, (15.00 Inches Bulk) (Cut to 4-1/2 IN.) 1 85833935
11 22-291112         FITTING 1
12 54-816311T         TIE STRAP, (8.00 Inches) 2
13 32-83476463         TUBING, (32.00 Inches Bulk) (Cut to 18-1/2 IN.) 1
14 22-881866         FITTING 1 859432
15 32-85978571         TUBING, (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY) 1 85978568
16 22-892403         FITTING 1 859431
17 881879A7         SENSOR KIT, (0-50 PSI) (TAN) 1
18 54-858954         CLIP, (.625) 1
19 22-875207         TEE, Fitting 1
20 32-85978571         TUBING, (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY) 1 85978568
21 22-859747         COUPLER 1
22 22-859732         PLUG 1
23 22-859731         FITTING, Adapter 1
24 32-85978571         TUBING, (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY) 1 85978568
25 22-858459         FITTING 1
26 2-77653101         HOSE, (48.00 Inches Bulk) (Cut to 23-1/2 IN.) 1
27 32-8276021         MOLDED HOSE 1
27 32-77653101         HOSE, (48.00 Inches Bulk) (Cut to 5 IN.) 1
28 32-77653101         HOSE, (48.00 Inches Bulk) (Cut to 17-1/2 IN.) 1
- 61-883201A01         POWERHEAD ASSEMBLY 1   No Longer Available
