200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Hydraulic Pump Assembly

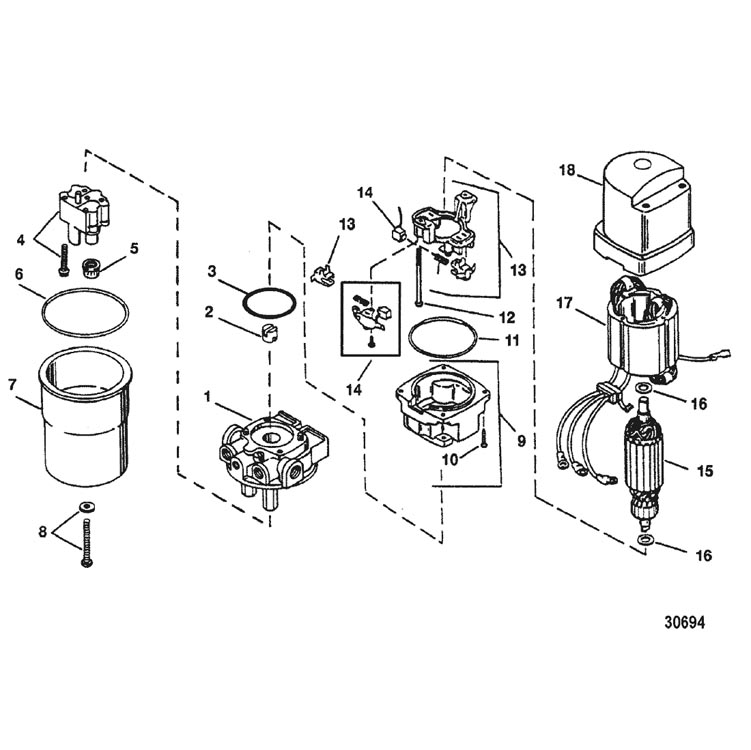

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Note: (Design I) - W/O Etched Manufacturer's Number on Motor Cover (Design II) - WITH Etched Manufacturer's Number on Motor Cover |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0051203 | PUMP ASSEMBLY, Hydraulic | 1 | 846859A1 | |||||
| 1 | 8M0084543 | ADAPTOR | 1 | 811491 | |||||
| 2 | 803852 | COUPLING | 1 | ||||||
| 3 | 25-89498 | O-RING | 1 | ||||||
| 4 | 811492T | PUMP ASSEMBLY (INCLUDES SCREWS) | 1 | ||||||
| 5 | 35-89496 | FILTER | 2 | ||||||
| 6 | 25-89497 | O-RING | 1 | ||||||
| 7 | 41219T | RESERVOIR | 1 | ||||||
| 8 | 10-811493 | SCREW KIT | 1 | ||||||
| - | 891736T | MOTOR ASSEMBLY | 1 | 17649T | |||||
| - | 891736T | MOTOR ASSEMBLY | 1 | ||||||
| 9 | 891736T | END CAP ASSEMBLY | 1 | No Longer Available | |||||
| 9 | NSS | END FRAME | 1 | Not Sold Separate | |||||
| 10 | 10-891736T | SCREW | 4 | No Longer Available | |||||
| 10 | 10-891741 | SCREW | 4 | No Longer Available | |||||
| 11 | 25-891736T | O-RING | 1 | No Longer Available | |||||
| 11 | 25-891740 | O-RING | 1 | ||||||
| 12 | 10-891736T | SCREW | 2 | No Longer Available | |||||
| 12 | 10-891739 | SCREW | 2 | No Longer Available | |||||
| 13 | 891736T | HOLDER KIT | 1 | No Longer Available | |||||
| 13 | 891738 | HOLDER ASSEMBLY | 1 | ||||||
| 14 | 17631A1 | BRUSH KIT | 1 | No Longer Available | |||||
| 14 | 891737 | BRUSH KIT | 1 | ||||||
| 15 | 891736T | ARMATURE | 1 | No Longer Available | |||||
| 15 | NSS | ARMATURE | 1 | Not Sold Separate | |||||
| 16 | 12-891736T | WASHER | 2 | No Longer Available | |||||
| 16 | NSS | THRUST WASHET | 2 | Not Sold Separate | |||||
| 17 | 891736T | FIELD AND FRAME ASSEMBLY | 1 | No Longer Available | |||||
| 17 | NSS | FIELD AND FRAME | 1 | Not Sold Separate | |||||
| 18 | 891736T | COVER ASSEMBLY | 1 | No Longer Available | |||||
| 18 | NSS | HOUSING | 1 | Not Sold Separate | |||||
| - | 812498A1 | VALVE KIT, Relief | 1 | ||||||
