200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Oil Injection Components

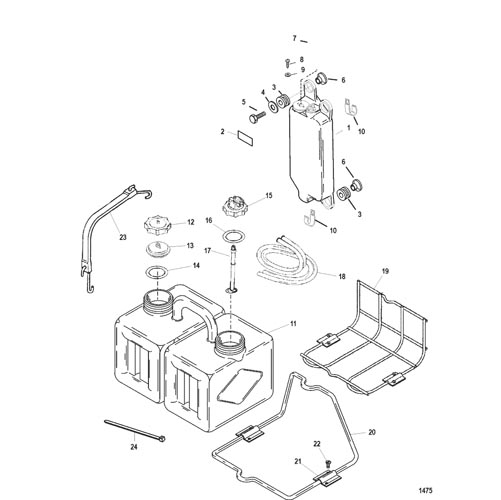

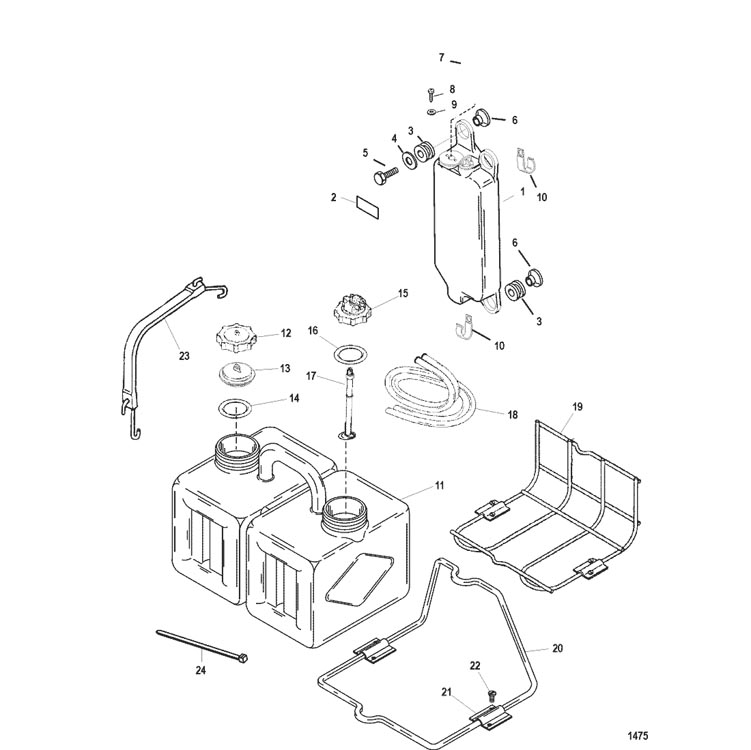

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0063190 | RESERVOIR ASSEMBLY | 1 | 833069T9 | |||||
| 2 | NSS | DECAL, Reservoir | 1 | Not Sold Separate | |||||
| 3 | 25-855362001 | GROMMET | 3 | 855362 | |||||
| 4 | 12-49436 | WASHER | 3 | ||||||
| 5 | 10-60411 | SCREW, (.312-18 x 1.250) | 3 | ||||||
| 6 | 23-855364 | BUSHING | 3 | ||||||
| 7 | 87-856156T02 | SWITCH ASSEMBLY | 1 | 856156A2 | |||||
| 8 | 10-58376 | SCREW, (.164-18 x .375) | 1 | ||||||
| 9 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel | 1 | ||||||
| 10 | 54-814634 | CLAMP | 2 | ||||||
| - | 1257-8742A22 | TANK ASSEMBLY, Remote Oil | 1 | 8742A20 | |||||
| - | 1257-8742A22 | TANK ASSEMBLY, Remote Oil | 1 | ||||||
| 11 | 1257-87421 | TANK | 1 | ||||||
| 12 | 36-43298A2 | CAP ASSEMBLY | 1 | ||||||
| 13 | NSS | INSERT | 1 | Not Sold Separate | |||||
| 14 | 25-11332 | O-RING, (2.225 x .210) | 1 | ||||||
| 15 | 816190A4 | SENDER ASSEMBLY, Oil Level | 1 | ||||||
| 16 | 25-11332 | O-RING, (2.225 x .210) | 1 | ||||||
| 17 | 32-99802 | TUBE | 1 | ||||||
| 18 | 32-99439 | HOSE, (114.00 Inches) | 1 | ||||||
| 19 | 12335A1 | BRACKET KIT, Remote Oil Tank Hold Down Kit | 1 | ||||||
| 20 | 884481A1 | BRACKET KIT, Remote Oil Tank Hold Down Kit | 1 | ||||||
| 21 | 12320 | BRACKET | 2 | ||||||
| 22 | 10-79968 | SCREW, (#12-11 x .750) | 4 | ||||||
| 23 | 12323A1 | CORD/HOOK KIT | 1 | ||||||
| 24 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 |
