| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

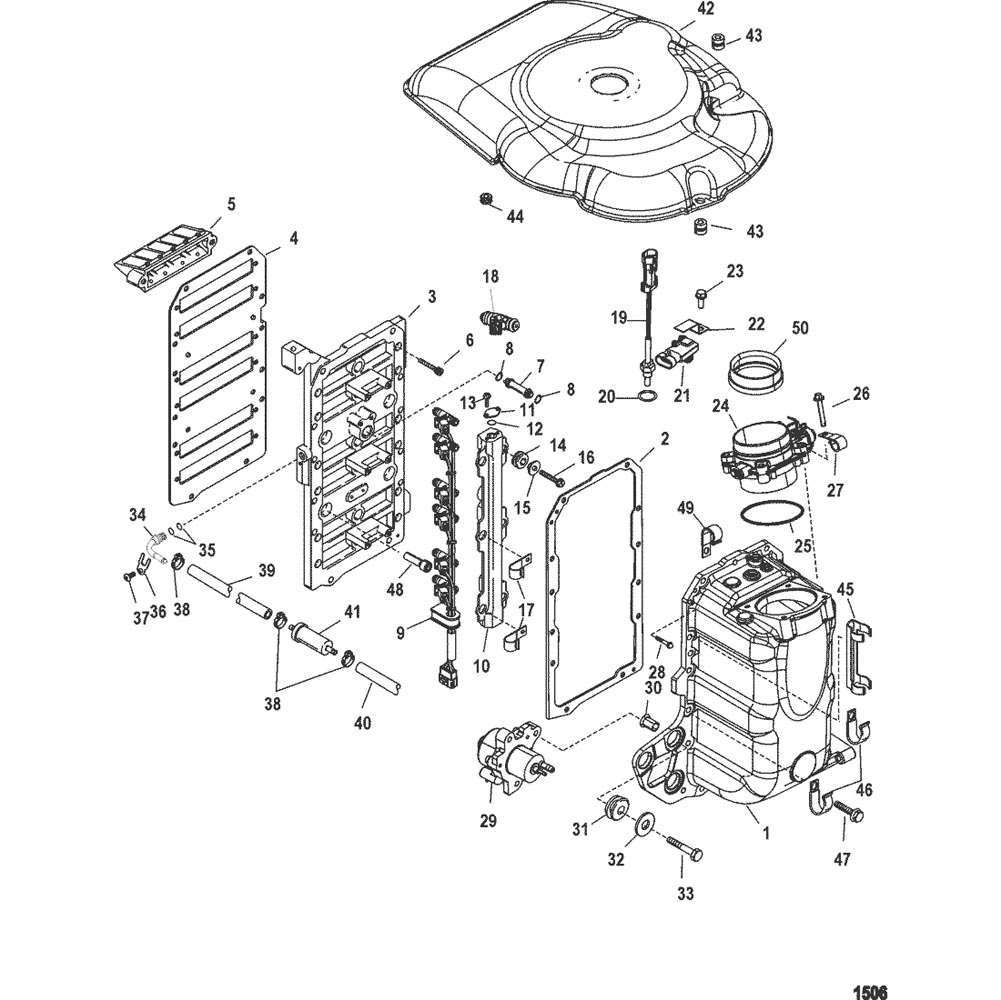

841085T05 |
|
|
|
|
AIR HANDLER ASSEMBLY |
1 |
|
No Longer Available |
| 1 |
858708T1 |
|
|
|
|
PLENUM KIT, Air |
1 |
|
|
| 2 |
27-840485 |
|
|
|
|
GASKET |
1 |
|
|
| 3 |
840396T1 |
|
|
|
|
ADAPTOR PLATE |
1 |
|
|
| 4 |
27-840484 |
|
|
|
|
GASKET |
1 |
|
|
| 5 |
840805T1 |
|
|
|
|
REED BLOCK ASSEMBLY |
6 |
|
|
| 6 |
10-55715 |
|
|
|
|
SCREW, (.250-20 x .880) |
12 |
|
|
| 7 |
840892 |
|
|
|
|
FITTING, Fuel |
1 |
|
|
| 8 |
25-862053 |
|
|
|
|
O-RING |
2 |
|
|
| 9 |
84-840482A2 |
|
|
|
|
HARNESS ASSEMBLY |
1 |
|
|
| 10 |
840889T |
|
|
|
|
FUEL RAIL |
1 |
|
|
| 11 |
840422A1 |
|
|
|
|
PLATE KIT |
2 |
|
|
| 12 |
25-627021 |
|
|
|
|
O-RING, (.301 x .070) |
2 |
|
|
| 13 |
10-188642 |
|
|
|
|
SCREW, (#8-32 x .500) |
4 |
|
|
| 14 |
25-840893 |
|
|
|
|
GROMMET |
6 |
|
|
| 15 |
840891 |
|
|
|
|
SPACER |
12 |
|
|
| 16 |
10-812987 |
|
|
|
|
SCREW, (#10-24 x 1.250) |
6 |
|
|
| 17 |
54-63153 |
|
|
|
|
J CLIP |
2 |
|
|
| 18 |
840481T01 |
|
|
|
|
INJECTOR ASSEMBLY |
6 |
840481001 |
|
| 19 |
889575 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
|
|
| 19 |
885342002 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
885342001 |
|
| 20 |
25-627021 |
|
|
|
|
O-RING, (.301 x .070) |
1 |
|
|
| 20 |
25-896699 |
|
|
|
|
O-RING, (.351 x .072) |
1 |
888814 |
|
| 21 |
854445 |
|
|
|
|
SENSOR, MAP |
1 |
|
|
| 22 |
884522 |
|
|
|
|
BRACKET, MAP Sensor |
1 |
|
|
| 23 |
10-1993716 |
|
|
|
|
SCREW, (M6 x 16) |
1 |
|
|
| 24 |
883957T1 |
|
|
|
|
THROTTLE BODY KIT |
1 |
|
|
| 25 |
25-855423 |
|
|
|
|
O-RING |
1 |
|
|
| 26 |
10-82130040 |
|
|
|
|
SCREW, (M6 x 40) |
4 |
|
|
| 27 |
54-55098 |
|
|
|
|
J CLIP |
2 |
|
|
| 28 |
10-4001987 |
|
|
|
|
SCREW, (M4 x 16) |
2 |
|
|
| 29 |
8M0101630 |
|
|
|
|
PUMP ASSEMBLY |
1 |
879892T04 |
|
| 30 |
23-855364 |
|
|
|
|
BUSHING |
3 |
|
|
| 31 |
25-855362001 |
|
|
|
|
GROMMET |
3 |
855362 |
|
| 32 |
12-817274 |
|
|
|
|
WASHER, (.344 x 1.00 x .063) Stainless Steel |
3 |
|
|
| 33 |
10-81893430 |
|
|
|
|
SCREW, (M8 x 30) |
3 |
|
|
| 34 |
22-841014A1 |
|
|
|
|
FITTING ASSEMBLY |
1 |
|
No Longer Available |
| 35 |
25-20385 |
|
|
|
|
O-RING, (.239 x .070) |
2 |
|
|
| 36 |
54-841022 |
|
|
|
|
CLAMP |
1 |
|
|
| 37 |
10-883376 |
|
|
|
|
SCREW, (#10-24 x .375) |
1 |
|
|
| 38 |
54-856880 |
|
|
|
|
CLAMP, Hose (15.3) |
3 |
|
|
| 39 |
32-774572 |
|
|
|
|
HOSE, (48.00 Inches Bulk) (Cut to 3.00 Inch Length) |
1 |
|
|
| 40 |
32-774572 |
|
|
|
|
HOSE, (48.00 Inches Bulk) (Cut to 11.50 Inch Length) |
1 |
|
|
| 41 |
35-816296K2 |
|
|
|
|
FILTER, Fuel |
1 |
|
|
| 42 |
880194T05 |
|
|
|
|
COVER ASSEMBLY |
1 |
|
|
| 43 |
25-840525 |
|
|
|
|
GROMMET |
2 |
|
|
| 44 |
25-20116 |
|
|
|
|
GROMMET |
1 |
|
|
| 45 |
8261151 |
|
|
|
|
CLAMP, Connector |
1 |
|
|
| 46 |
54-97224 |
|
|
|
|
J CLIP |
2 |
|
|
| 47 |
10-817504 |
|
|
|
|
SCREW, (.250-20 x 1.500) Stainless Steel |
12 |
|
|
| 48 |
10-55715 |
|
|
|
|
SCREW, (.250-20 x .880) |
4 |
|
|
| 49 |
54-55098 |
|
|
|
|
J CLIP |
1 |
|
|
| 50 |
25-855613 |
|
|
|
|
GROMMET |
1 |
|
|
| - |
27-813859A02 |
|
|
|
|
GASKET SET |
1 |
|
|
