| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

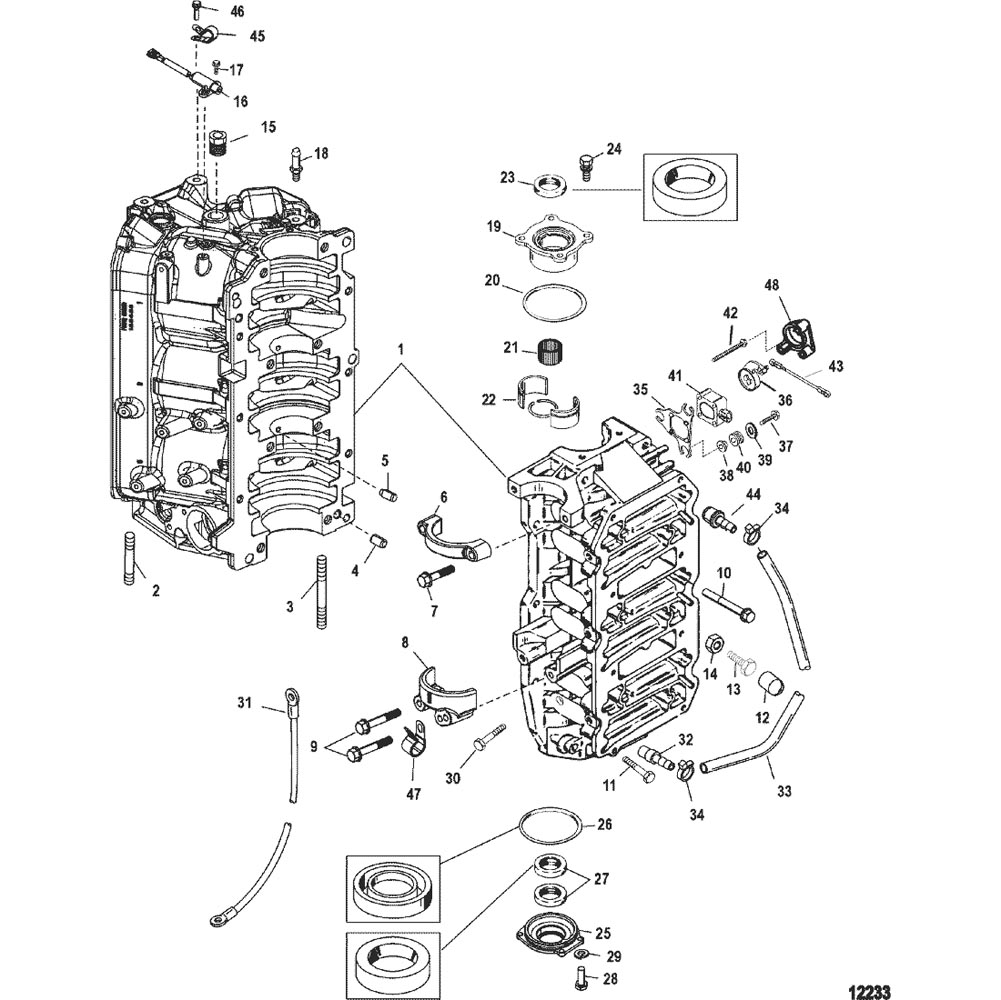

| 1 |
884-858961T02 |
|
|
|
|
CYLINDER BLOCK |
1 |
|
No Longer Available |
| 2 |
16-8M0034443 |
|
|
|
|
STUD, (.375-16/.375-24 x 2.040) |
2 |
847530 |
|
| 2 |
16-8M0034443 |
|
|
|
|
STUD, (.375-16/.375-24 x 2.040) |
6 |
847530 |
|
| 3 |
16-8M0034430 |
|
|
|
|
STUD, (.375-16/.375-24 x2.490) |
4 |
847529 |
|
| 3 |
16-670654 |
|
|
|
|
STUD, (.375 x 5.620) |
2 |
670653 |
|
| 3 |
16-8M0034437 |
|
|
|
|
STUD, (.375-16/.375-24 x 5.750) |
4 |
847532 |
|
| 3 |
16-8M0034454 |
|
|
|
|
STUD, (.375-16/.375-24 x 6.870) |
2 |
784385 |
|
| 4 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
2 |
|
|
| 5 |
17-8M0036405 |
|
|
|
|
PIN, Bearing Race |
2 |
67296 |
|
| 6 |
8M0041759 |
|
|
|
|
BRACKET |
1 |
8569662 |
|
| 7 |
10-828213 |
|
|
|
|
SCREW, (.312-18 x 1.500) Hex Flange |
2 |
|
|
| 8 |
76867 |
|
|
|
|
COVER, Bottom |
1 |
|
|
| 9 |
10-828214 |
|
|
|
|
SCREW, (.312-18 x 2.00) Hex Flange |
2 |
|
|
| 10 |
10-66717 |
|
|
|
|
SCREW, (.375-16 x 3.250) |
8 |
|
|
| 11 |
10-74824 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
6 |
|
|
| 12 |
26852 |
|
|
|
|
CAP, Nylon |
1 |
|
|
| 13 |
10-856832 |
|
|
|
|
SCREW, (.250-20 x 1.750) |
1 |
|
|
| 14 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
|
| 15 |
22-883048 |
|
|
|
|
PLUG, (.500-14) |
1 |
|
|
| 16 |
8M0082988 |
|
|
|
|
SENSOR |
1 |
8283582 |
|
| 17 |
10-40011107 |
|
|
|
|
SCREW, (M5 x 16) Stainless Steel |
2 |
|
|
| 18 |
8215832 |
|
|
|
|
PIN, Special (1.5 Inches) |
1 |
|
|
| 19 |
1159-832760T1 |
|
|
|
|
END CAP ASSEMBLY |
1 |
|
|
| 20 |
25-54029 |
|
|
|
|
O-RING, (2.800 x .103) |
1 |
|
|
| 21 |
31-16756A4 |
|
|
|
|
BEARING KIT |
1 |
|
|
| 22 |
NSS |
|
|
|
|
Bearing Race |
1 |
|
Not Sold Separate |
| 23 |
26-41953 |
|
|
|
|
SEAL |
1 |
|
|
| 24 |
10-881190 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
4 |
|
|
| 25 |
1156-7809T1 |
|
|
|
|
END CAP ASSEMBLY |
1 |
|
|
| 26 |
25-62700 |
|
|
|
|
O-RING, (3.237 x .103) |
1 |
|
|
| 27 |
26-41953 |
|
|
|
|
SEAL |
2 |
|
|
| 28 |
10-28636 |
|
|
|
|
SCREW, (.250-20 x .750) |
4 |
|
|
| 29 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
4 |
|
|
| 30 |
10-81893414 |
|
|
|
|
SCREW, (M8 x 14) |
1 |
|
|
| 31 |
84-88439A26 |
|
|
|
|
CABLE ASSEMBLY, Battery - Negative |
1 |
|
|
| 32 |
21-426982 |
|
|
|
|
CHECK VALVE |
1 |
|
|
| 33 |
32-892024122 |
|
|
|
|
TUBING, (20.00 Feet Bulk) (Cut to 19.00 Inch Length) |
1 |
99130122 |
|
| 34 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
2 |
|
|
| 35 |
8538821 |
|
|
|
|
BRACKET, Throttle Position Indicator Mount |
1 |
|
|
| 36 |
8519371 |
|
|
|
|
LEVER, Throttle Position Indicator |
1 |
|
|
| 37 |
10-82130025 |
|
|
|
|
SCREW, (M6 x 25) |
3 |
|
|
| 38 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 39 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
| 40 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 41 |
83295211 |
|
|
|
|
INDICATOR, Throttle Position |
1 |
|
|
| 42 |
10-8508281 |
|
|
|
|
SCREW, (#10-32 x 2.00) |
3 |
|
|
| 43 |
8M0084738 |
|
|
|
|
LINK ASSEMBLY |
1 |
878175 |
|
| 44 |
21-426233 |
|
|
|
|
CHECK VALVE |
1 |
|
|
| 45 |
54-28700 |
|
|
|
|
CLAMP |
1 |
|
|
| 46 |
10-8248324 |
|
|
|
|
SCREW, (M6 x 16) |
1 |
|
|
| 47 |
54-859172 |
|
|
|
|
CLAMP |
1 |
|
|
| 48 |
8582261 |
|
|
|
|
COVER |
1 |
|
|
| - |
27-813859A02 |
|
|
|
|
GASKET SET |
1 |
|
|
| - |
809430T02 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
|
|
